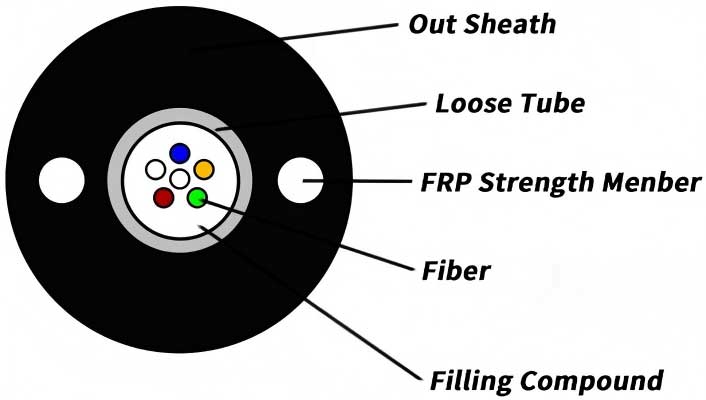

Product Structure Diagram
Product Description
Fibers are positioned in a central tube made of high-modulus plastic and filled with tube gel. The
tube is armored with aramid yars and water blocking yarns. Finally a PE jacket is extruded.
Product features
Good mechanical and thermal performance.
Hydrolysis resistant loose tube.
Tube filling compound ensures critical protection of fiber.
Armored with aramid yarns and water-blocking yarns.
Excellent crush resistance and flexibility.
Application
Duct / Non Self-supporting Aerial Installation.
Technical Specifications
Parameters
Product Description
Fibers are positioned in a central tube made of high-modulus plastic and filled with tube gel. The
tube is armored with aramid yars and water blocking yarns. Finally a PE jacket is extruded.
Product features
Good mechanical and thermal performance.
Hydrolysis resistant loose tube.
Tube filling compound ensures critical protection of fiber.
Armored with aramid yarns and water-blocking yarns.
Excellent crush resistance and flexibility.
Application
Duct / Non Self-supporting Aerial Installation.
Technical Specifications
Parameters
| Project | Technical indicators |
| Counts | 2025/2/12 |
| Max.fiber counts per tube | 12 |
| Cable Diameter(mm) | 6.8 |
| Reference weight(Kg/km) | 49 |
| Fiber Type | G652D G655 G657 50/125 62.5/125 |
| Tensile Strength(N) | Long/Short Term:600/1500 |
| Crush Resistance(N/100mm) | Long/Short Term:300/1000 |
| Bending Radius(mm) | Static/Dynamic:12.5D/25D |
| Temperature(℃) | Storage /Operation:-40℃~+70℃ |
