Application
Used for overhead medium voltage (12/20 kV) transmission line.

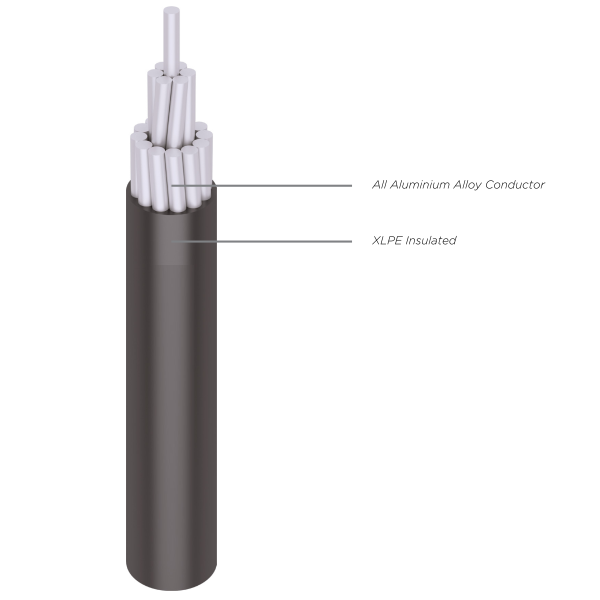

Construction
• Conductor Single core, Aluminium Conductors.
• Insulation Extrude of XLPE.
Classification
Middle Voltage Cable
Specification
SPLN 41-10 or Manufacture Spec
(Other specifications are available upon request)
| PHYSICAL PROPERTIES | ELECTRICAL PROPERTIES | |||||||||
| Cross Sectional Area | Number and Diameter Wire |
Semi Conductor Thickness |
Insulation Thickness |
Approx Overall Diameter |
Approx able Weight |
Calculated Breaking Force |
DC. Resistance at 20C |
Current Carrying Capacity |
Standard Length |
|
| Nominal Size | Actual Size | |||||||||
| mm | mm2 | Pcs/mm | mm | mm | mm | kg/km | kg | ohm/km | A | m |
| 35 | 34.36 | 7/2.50 | 0.8 | 3 | 15.1 | 227 | 980 | 0.958 | 167 | 1,000 |
| 50 | 45.71 | 19/1.75 | 0.8 | 3 | 16.4 | 289 | 1,300 | 0.724 | 200 | 1,000 |
| 70 | 75.55 | 19/2.25 | 0.8 | 3 | 19 | 385 | 2,150 | 0.438 | 275 | 1,000 |
| 95 | 93.27 | 19/2.50 | 0.8 | 3 | 20.1 | 449 | 2660 | 0.355 | 315 | 1,000 |
| 100 | 99.3 | 7/4.25 | 0.8 | 3 | 20.4 | 40 | 2830 | 0.332 | 325 | 1,000 |
| 120 | 112.85 | 19/2.75 | 0.8 | 3 | 21.4 | 530 | 3,220 | 0.293 | 356 | 1,000 |
| 150 | 147.1 | 37/2.25 | 0.8 | 3 | 23.4 | 639 | 4,190 | 0.225 | 423 | 1,000 |
| 185 | 181.6 | 37/2.50 | 0.8 | 3 | 25.1 | 770 | 5,170 | 0.183 | 484 | 1,000 |
| 240 | 242.5 | 61/2.50 | 0.8 | 3 | 28 | 955 | 6,910 | 0.139 | 585 | 1,000 |
| 300 | 299.4 | 61/2.50 | 0.8 | 3 | 30.1 | 1.052 | 8530 | 0.111 | 670 | 1,000 |
| 400 | 431.18 | 61/3.00 | 0.8 | 3 | 34.6 | 1,464 | 12290 | 0.077 | 810 | 500 |
| 500 | 506.04 | 61/3.25 | 0.8 | 3 | 36.85 | 1,774 | 14420 | 0.066 | 930 | 500 |
| 630 | 643.24 | 91/3.00 | 0.8 | 3 | 40.6 | 2,129 | 18330 | 0.052 | 1085 | 500 |
| 800 | 754.92 | 91/3.25 | 0.8 | 3 | 43.35 | 2.471 | 21515 | 0.044 | 1255 | 500 |
| 1000 | 1.005.07 | 91/3.75 | 0.8 | 3 | 48.85 | 3,232 | 28640 | 0.033 | 1450 | 500 |
