Description

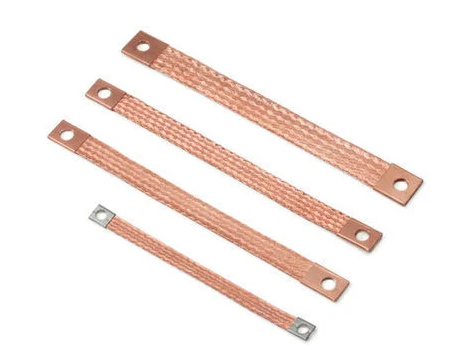

The earthing connection is a braid of copper also named as stranded wire. They are very flexible electrical conductor which can be produced in various sizes. The flexible earth strap can be manufactured in the following materials: bare copper, tinned copper, silver-plated copper, and galvanized copper, aluminum and precious metals.
Product application
Earthing connections and braides are used everywhere in the electrical industry, electrical engineering, automotive engineering, aeronautical engineering, space travel, data technology as flexible conductors, shielding braids, ground connectors, earthing cables or armouring.
Technical Information
The earthing connection is a braid of copper also named as stranded wire. They are very flexible electrical conductor which can be produced in various sizes. The flexible earth strap can be manufactured in the following materials: bare copper, tinned copper, silver-plated copper, and galvanized copper, aluminum and precious metals.
Product application
Earthing connections and braides are used everywhere in the electrical industry, electrical engineering, automotive engineering, aeronautical engineering, space travel, data technology as flexible conductors, shielding braids, ground connectors, earthing cables or armouring.

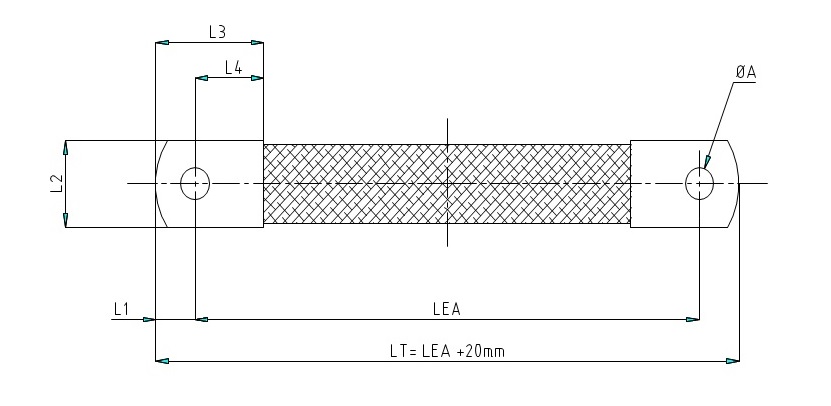

| DIMENSIONS (mm) | HOLE DIAMETER (A) (mm) | LENGTH (B) (mm) | CSA (mm虏) | WEIGHT (kg) |
| 12 x 1 | 7 | 200 | 6 | 0.01 |
| 12 x 1 | 7 | 400 | 6 | 0.02 |
| 15 x 1.5 | 7 | 200 | 10 | 0.02 |
| 15 x 1.5 | 7 | 400 | 10 | 0.04 |
| 19 x 2.5 | 9 | 200 | 16 | 0.03 |
| 19 x 2.5 | 9 | 400 | 16 | 0.06 |
| 25 x 3 | 11 | 200 | 25 | 0.05 |
| 25 x 3 | 11 | 400 | 25 | 0.1 |
| 25 x 3.5 | 11 | 200 | 35 | 0.09 |
| 25 x 3.5 | 11 | 400 | 35 | 0.15 |
| 30 x 5 | 11 | 200 | 50 | 0.1 |
| 30 x 5 | 11 | 400 | 50 | 0.2 |
| 32 x 6 | 13 | 200 | 70 | 0.13 |
| 32 x 6 | 13 | 400 | 70 | 0.25 |
| 37 x 6 | 13 | 200 | 95 | 0.19 |
| 37 x 6 | 13 | 400 | 95 | 0.37 |
| 45 x 6 | 17 | 200 | 120 | 0.23 |
| 45 x 6 | 17 | 400 | 120 | 0.46 |
| 50 x 8 | 17 | 200 | 150 | 0.3 |
| 50 x 8 | 17 | 400 | 150 | 0.6 |
