Type: PIN Material: PORCELAIN Voltage rating: 11 kv

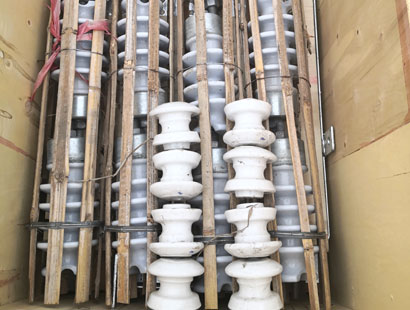

Standard: ANSI Color: White Package: WOODEN CRATE
| Recommend Pin Length,mm |
|
152 |
| Creepage Distance,mm |
|
330 |
| Dry Arcing Distance,mm |
|
178 |
| Dimmensions,mm |
H |
146 |
| h |
51 |
| D |
191 |
| d |
35 |
| R1 |
19 |
| R2 |
14 |
| Dry Arcing Distance,mm |
|
11 |
| Low Frequency Flashover Voltage |
Dry, kv |
95 |
| Wet, kv |
60 |
| Critical Impulse Flashover Voltage |
Pos., kv |
150 |
| Neg., kv |
190 |
| Low Frequency Puncture Voltage,KV |
|
130 |
| Radio Influence Voltage Data |
Test Voltage to Ground,KV |
15 |
| Max.RIV at 1000KHZ,UV |
100 |
| Net Weight, Each Approx., kg |
|
3.7 |
