Overview

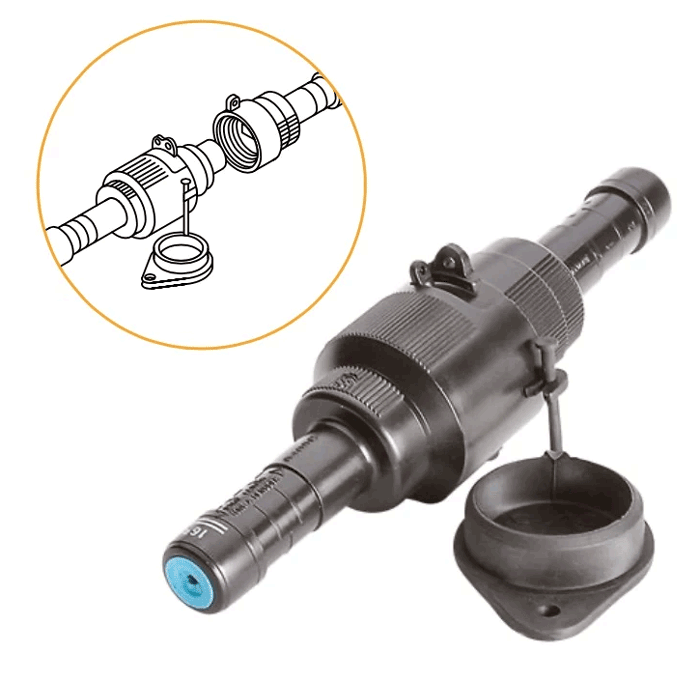

Pre-Insulated Sleeve MJPF
Material：Brass(silver plating)Aluninium
Product property：MJPF is designed to connect the neutral messenger in aerial bundled cable .It is in accordance with NFC33-021 .The sleeve is with full tension .
And it's cap can prevent the water into the barrel .It is colored differently to distinguish the cable sizes .
Marked with type ,cable size ,die size ,inner cable length and number of crilnping .
Pre-Insulated Sleeve SDPA
Material：Aluminum alloy
Product propety：SDPA is designed to connect the neutral messenger in aerial bundled cable . It is in accordance with NFC33-021 .The sleeve is with full tension .
And its cap can prevent the water into the barrel .It is colored diffelently to distinguish the cable sizes .
Marked with type ,cable size ,die size ,inner cable length and number of crimping .
Pre-Insulated Sleeve MJPF
Material：Brass(silver plating)Aluninium
Product property：MJPF is designed to connect the neutral messenger in aerial bundled cable .It is in accordance with NFC33-021 .The sleeve is with full tension .
And it's cap can prevent the water into the barrel .It is colored differently to distinguish the cable sizes .
Marked with type ,cable size ,die size ,inner cable length and number of crilnping .

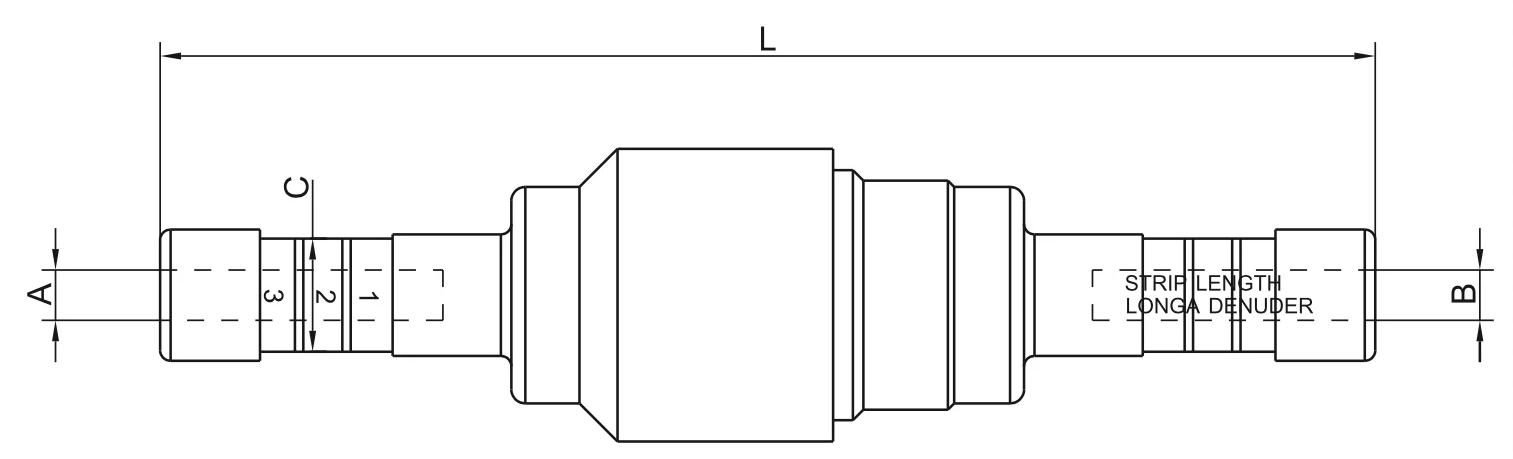

| Model | Cable Size (mm2) | Plastic Sleeve Diameter (mm) | Length (mm) | |
| A | B | C | L | |
| MJPF 16/16 | 16 | 16 | 16.2 | 174 |
| MJPF 16/25 | 16 | 25 | 16.2 | 174 |
| MJPF 25/25 | 25 | 25 | 16.2 | 174 |
Material：Aluminum alloy
Product propety：SDPA is designed to connect the neutral messenger in aerial bundled cable . It is in accordance with NFC33-021 .The sleeve is with full tension .
And its cap can prevent the water into the barrel .It is colored diffelently to distinguish the cable sizes .
Marked with type ,cable size ,die size ,inner cable length and number of crimping .
| Model | Cable Size (mm2) | Plastic Sleeve Diameter (mm) | Length (mm) | |
| A | B | C | L | |
| MJPTN 54.6/54.6 | 54.6 | 54.6 | 20 | 172.5 |
| MJPTN 54.6/70 | 54.6 | 70 | 20 | 172.5 |
| MJPTN 70/70 | 70 | 70 | 20 | 172.5 |
| MJPTN 95/95D | 95 | 95 | 20 | 172.5 |
