Overview
The suspension clamp is used to fix the wire on the insulator string of the linear tower, or to suspend the lightning protection wire on the linear tower.
The body and keeper are made of malleable iron, cotter-pins are made of stainless steel, other parts are made of steel. All ferrous parts are hot-dip galvanizel.
Parameter
The suspension clamp is used to fix the wire on the insulator string of the linear tower, or to suspend the lightning protection wire on the linear tower.
The body and keeper are made of malleable iron, cotter-pins are made of stainless steel, other parts are made of steel. All ferrous parts are hot-dip galvanizel.
Parameter

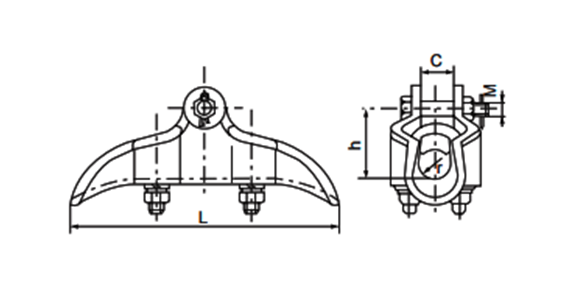

| Catalog No. | Conductor Dia.(mm) | Dimensions (mm) | Rated Failure Load (kN) | Weight (kg) | ||||
| h | C | M | r | L | ||||
| XGT-1 | 5.0-7.0 | 54 | 16 | 16 | 6 | 146 | 71 | 1.2 |
| XGT-2 | 6.1-15.3 | 57 | 18 | 16 | 8 | 171 | 71 | 1.5 |
| XGT-3 | 7.6-17.8 | 57 | 18 | 16 | 9 | 180 | 71 | 1.6 |
| XGT-4 | 10.2-21.1 | 60 | 21 | 16 | 11 | 190 | 80 | 2.1 |
| XGT-5 | 12.7-25.4 | 60 | 26 | 16 | 15 | 203 | 80 | 2.6 |
