Pole Clamp

Pole Clamp

Product Information: Pole clamps are used to line up the poles with steel farmes.and are usually consist of two,three,or four pieces of bands and certain number
Product Information:
Pole clamps are used to line up the poles with steel farmes.and are usually consist of two,three,or four pieces of bands and certain number bolts and nuts.
Material:Hot Dipped galvanized Steel
The heavy duty is 64x8mm,The light duty is 50 x 6mm

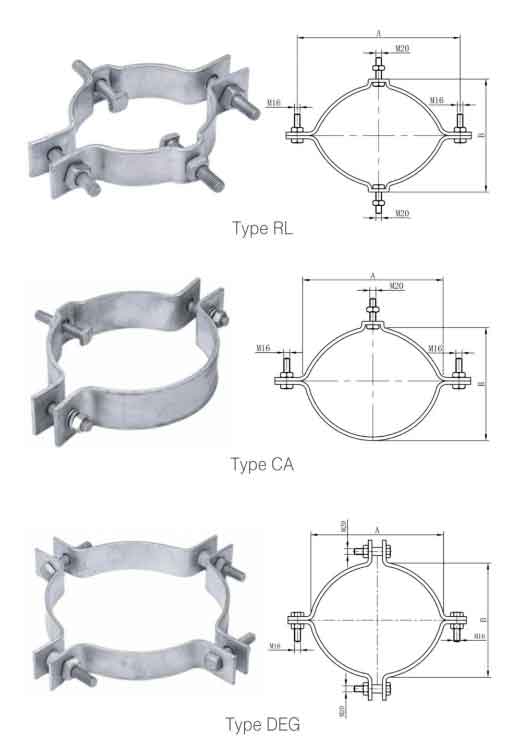

Type Clamp Range
Dimension inch(mm) Rangc(mm) Inch
RL 8(203) 178- 203 7-8
9(229) 203-229 8-9
10(254) 229-254 9-10
CA 8(203) 178-203 7-8
9(229) 203-229 8-9
10(254) 229- -254 9-10
DEG 8(203) 178- 203 7-8
9(229) 203- -229 8-9
10(254) 229-254 9-10

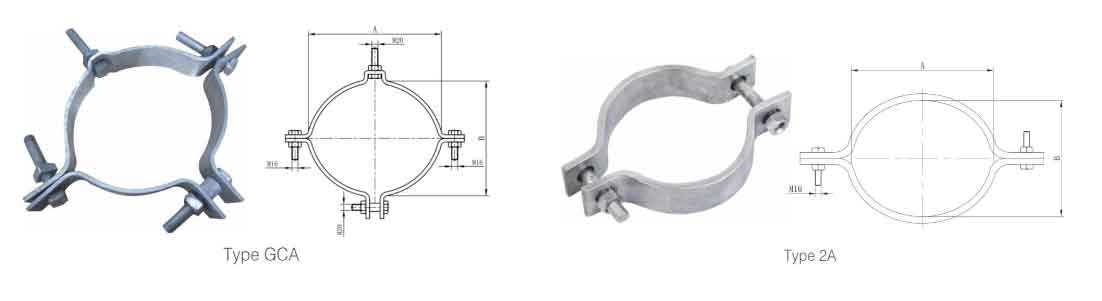

GCA 8(203) 178- 203 7-8
9(229) 203- -229 8-9
10(254) 229- -254 9-10
2A 8(203) 178- -203 7-8
9(229) 203- -229 8-9
10(254) 229- 254 9-10
