Turnnion Type Suspension Clamp

Turnnion Type Suspension Clamp

Overview Suspension clamp is an important fixed fitting used to suspend or support transmission wires and withstand vertical loads. Parameter Catalog No.
Overview
Suspension clamp is an important fixed fitting used to suspend or support transmission wires and withstand vertical loads.

Parameter

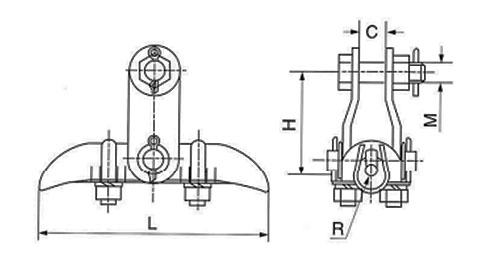

Catalog No. Conductor Dia.(mm) Dimensions(mm) Rated Failure Load(kN) Weight(kg)
H L R C M
XGU-1 5.0-7.0 82 180 4 18 16 40 1.4
XGU-2 7.1-13.0 82 200 7 18 16 40 1.8
XGU-3 13.1-21.0 102 220 11 18 16 40 2
XGU-4 21.1-26.0 110 250 13.5 18 16 40 3
The clamp body and keeper are made of malleable iron, the lock pin is made of stainless steel, and the rest are steel, malleable and hot-dip galvanized steel.
