Application
Bundle conductor for overhead energy distribution network without and with public lighting. (between pole to pole).
Construction
Conductor

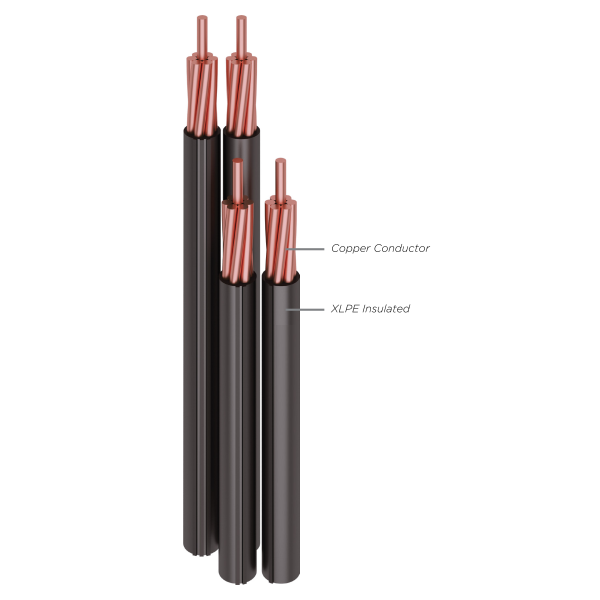

NF2X : Stranded Copper Conductor

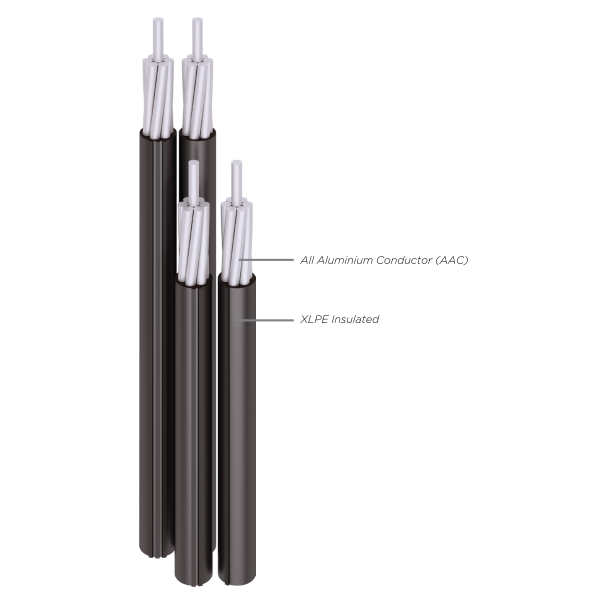

NFA2X : Stranded All Aluminium Conductor (AAC)
Insulation: Extrude of XLPE
Specification
SPLN 42-10 : 1993
Standard: DIN VDE 0276-626
(Other specifications are available upon request)
Parameter
| PHYSICAL PROPERTIES | ELECTRICAL PROPERTIES | ||||||
| Cable Size | Insulation Thickness | Approx.Twisted Diameter | Approx. Net.Weight | Max. Conductor Resistance at2oC | Current Carrying Capacity at 35℃ | Calculated Breaking Force | Standard Length |
| Mm2 | mm | mm | Kg/km | ohm/km | A | kg | m |
| NF2X (COPPER CONDUCTOR) | |||||||
| 2x6rm | 1.2 | 13.0 | 136 | 3.080 | 54 | 394 | 2.,000 |
| 2x10rm | 1.2 | 14.0 | 211 | 1.830 | 73 | 656 | 2,000 |
| 2x16rm | 1.2 | 16.0 | 334 | 1.150 | 97 | 1,051 | 1,000 |
| 4x6rm | 1.2 | 15.7 | 258 | 3.080 | 54 | 788 | 1.000 |
| 4x10rm | 1.2 | 170 | 422 | 1.830 | 73 | 1,312 | 1,000 |
| 4x16rm | 1.2 | 190 | 64 | 1.150 | 97 | 2,102 | 1,000 |
| 4x25rm | 1.4 | 240 | 1,008 | 0.727 | 133 | 3,284 | 1,000 |
| NFA2X (ALL ALUMINIUM CONDUCTOR) | |||||||
| 2x10rm | 1.2 | 14.0 | 94 | 3.080 | 54 | 322 | 2,000 |
| 2x16rm | 1.2 | 16.0 | 138 | 1.910 | 72 | 515 | 1,000 |
| 4x10rm | 1.2 | 17.0 | 187 | 3.080 | 54 | 644 | 1,000 |
| 4x16rm | 1.2 | 19.0 | 272 | 1.910 | 72 | 1,030 | 1,000 |
| 4x25 rm | 1.4 | 24.0 | 423 | 1.200 | 102 | 1.610 | 1,000 |
| 4x35rm | 1.6 | 27.0 | 564 | 0.868 | 125 | 2.250 | 1,000 |
NFA2X 0.6/1 kV DIN VDE 0276-626 T.626-4-F, PN-HD 626-4F
| No. of cores and cross-section |
Shape of conductor |
Nominal insulation thickness |
Diameter approx. |
Cable mass approx. |
Bending radius |
DC resistance at 20 °C (min.) |
Current carrying cap. in air |
Short circuit current-equiv. |
Time heating constant |
| mm2 | mm | mm | kg/km | mm | Ω/km | A | kA | sec | |
| 1x16 | RMNV | 1.2 | 7 | 66 | 105 | 1.91 | 75 | 0.9 | 146 |
| 1x25 | RMN | 1.3 | 9 | 97 | 135 | 1.2o | 107 | 1.4 | 175 |
| 1x35 | RMNV | 1.3 | 10 | 132 | 150 | 0.868 | 132 | 2 | 225 |
| 1x50 | RMV | 1.5 | 12 | 183 | 180 | 0.641 | 165 | 2.9 | 294 |
| 1x70 | RMV | 1.5 | 13 | 239 | 195 | 0.443 | 205 | 4 | 374 |
| 1x95 | RMV | 1.7 | 15 | 322 | 225 | 0.32 | 250 | 5.5 | 463 |
| 1x120 | RMV | 1.7 | 17 | 395 | 255 | 0.253 | 280 | 6.9 | 589 |
| 2x16 | RMV | 1.2 | 15 | 133 | 180 | 1.91 | 75 | 0.9 | 146 |
| 2x25 | RMV | 1.3 | 17 | 197 | 204 | 1.2 | 107 | 1.4 | 175 |
| 2x35 | RMV | 1.3 | 20 | 269 | 240 | 0.868 | 132 | 2 | 225 |
| 3x16 | RMV | 1.2 | 16 | 201 | 192 | 1.91 | 69 | 0.9 | 172 |
| 3x25 | RMV | 1.3 | 19 | 296 | 228 | 1.2 | 107 | 1.4 | 175 |
| 4x16 | RMV | 1.2 | 18 | 269 | 216 | 1.91 | 69 | 0.9 | 172 |
| 4x25 | RMV | 1.3 | 21 | 396 | 252 | 1.2 | 107 | 1.4 | 175 |
| 4x35 | RMV | 1.3 | 24 | 541 | 288 | 0.868 | 132 | 2 | 225 |
| 4x50 | RMV | 1.5 | 28 | 749 | 336 | 0.641 | 165 | 2.9 | 294 |
| 4x70 | RMV | 1.5 | 32 | 975 | 384 | 0.443 | 205 | 4 | 374 |
| 4x95 | RMV | 1.7 | 37 | 1313 | 444 | 0.32 | 250 | 5.5 | 463 |
| 4x120 | RMV | 1.7 | 40 | 1610 | 480 | 0.253 | 280 | 6.9 | 589 |
| 3x70+16 | RMV | 1.5/1.2 | 30 | 799 | 360 | 0.443 | 205 | 4 | 374 |
| 3xS5+25 | RMV | 1.7/1.3 | 34 | 1084 | 408 | 0.32 | 250 | 5.5 | 463 |
| 3x70+2x16 | RMV | 1.5/1.2 | 30 | 869 | 360 | 0.443 | 205 | 4 | 374 |
| 3x95+2x16 | RMV | 1.7/1.2 | 34 | 1122 | 408 | 0.32 | 250 | 5.5 | 463 |
| 4x25+25 | RMV | 1.3 | 21 | 497 | 252 | 1.2 | 107 | 1.4 | 175 |
| 4x35+25 | RMV | 1.3 | 24 | 642 | 288 | 0.868 | 132 | 2 | 225 |
| 4x35+35 | RMV | 1.3 | 24 | 679 | 288 | 0.868 | 132 | 2 | 225 |
| 4x50+16 | RMV | 1.5/1.2 | 28 | 818 | 336 | 0.641 | 165 | 2.9 | 294 |
| 4x50+25 | RMV | 1.5/1.3 | 28 | 850 | 336 | 0.641 | 165 | 2.9 | 294 |
| 4x50+35 | RMV | 1.5/1.3 | 28 | 886 | 336 | 0.641 | 165 | 2.9 | 294 |
| 4x70+16 | RMV | 1.5/1.2 | 32 | 1044 | 384 | 0.443 | 205 | 4 | 374 |
| 4x70+25 | RMV | 1.5/1.3 | 32 | 1076 | 384 | 0.443 | 205 | 4 | 374 |
| 4x70+35 | RMV | 1.5/1.3 | 32 | 1112 | 384 | 0.443 | 205 | 4 | 374 |
| 4x95+16 | RMV | 1.7/1.2 | 37 | 1382 | 444 | 0.320 | 250 | 5.5 | 463 |
| 4x95+25 | RMV | 1.7/1.3 | 37 | 1414 | 444 | 0.32 | 250 | 5.5 | 463 |
| 4x95+35 | RMV | 1.7/1.3 | 37 | 1450 | 444 | 0.32 | 250 | 5.5 | 463 |
| 4x120+16 | RMV | 1.7/1.2 | 40 | 1679 | 480 | 0.253 | 280 | 6.9 | 589 |
| 4x120+25 | RMV | 1.7/1.3 | 40 | 1711 | 480 | 0.253 | 280 | 6.9 | 589 |
| 4x120+35 | RMV | 1.7/1.3 | 40 | 1747 | 480 | 0.253 | 280 | 6.9 | 589 |
| 4x35+2x25 | RMV | 1.3 | 24 | 744 | 288 | 0.868 | 132 | 2.0 | 225 |
| 4x50+2x25 | RMV | 1.5/1.3 | 28 | 951 | 336 | 0.641 | 165 | 2.9 | 298 |
| 4x50+2x35 | RMV | 1.5/1.3 | 28 | 1024 | 336 | 0.641 | 165 | 2.9 | 298 |
| 4x70+2x25 | RMV | 1.5/1.3 | 32 | 1178 | 384 | 0.443 | 205 | 4.0 | 374 |
| 4x70+2x35 | RMV | 1.5/1.3 | 32 | 1255 | 384 | 0.443 | 205 | 4 | 374 |
| 4x95+2x25 | RMV | 1.7/1.3 | 37 | 1515 | 444 | 0.32 | 250 | 5.5 | 463 |
| 4x95+2x35 | RMV | 1.7/1.3 | 37 | 1588 | 444 | 0.32 | 250 | 5.5 | 463 |
| 4x120+2x25 | RMV | 1.7/1.3 | 40 | 1813 | 480 | 0.253 | 280 | 6.9 | 589 |
| 4x120+2x35 | RMV | 1.7/1.3 | 40 | 1885 | 480 | 0.253 | 280 | 6.9 | 589 |
