Application :
Bundle conductor for overhead distribution network with and without public lighting (between pole to pole).
Specification :
SPLN 42-10 ; 1993, SPLN D3.010-1
(Other specifications are available upon request)
Classification :
Low Voltage Cable

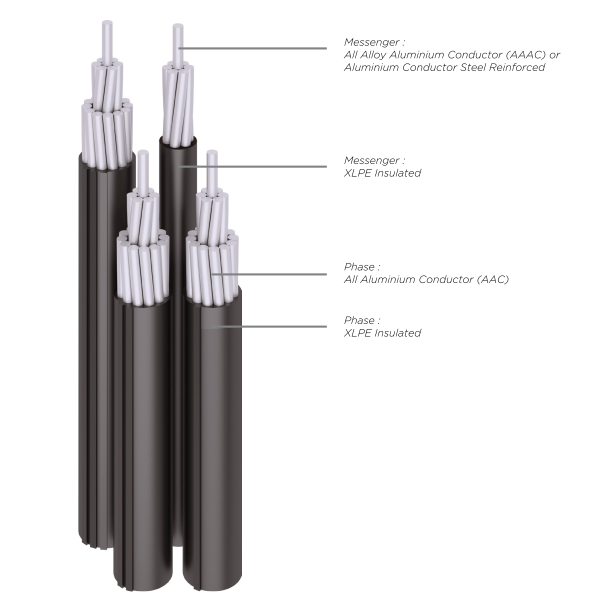

Construction :
Conductor
Phase : Stranded All Aluminium conductor (AAC)
Neutral/Messenger : Stranded All Aluminium Alloy Conductor (AAAC) or Aluminium Conductor Steel Reinforced
Insulation
Extrude of XLPE, capable for continous operation at maximum cable’s temperature.
| PHYSICAL PROPERTIES | |||||||
| Cable Size | Insulation Thickness | Approx Maximum Diameter | Approx. Net. Weight |
||||
| Phase | Neutral Messenger |
Public lighting |
Phase | Neural Messenger |
Public lighting |
||
| mm2 | mm | mm | mm | mm | mm | mm | kg/km |
| 2x25+25 | 1.4 | 1.4 | - | 10 | 10 | 10 | 338 |
| 2x35+25 | 1.6 | 1.4 | - | 11.2 | 10 | 10 | 394 |
| 2x50+35 | 1.6 | 1.6 | - | 12.6 | 11.2 | 11.2 | 526 |
| 2x70+50 | 1.8 | 1.6 | - | 15.4 | 12.6 | 12.6 | 760 |
| 2x95+70 | 2 | 1.8 | - | 17 | 15.4 | 15.4 | 975 |
| 3x25+25 | 1.4 | 1.4 | - | 10 | 10 | 10 | 452 |
| 3x35+25 | 1.6 | 1.4 | - | 11.2 | 10 | 10 | 537 |
| 3x50+35 | 1.6 | 1.6 | - | 12.6 | 11.2 | 11.2 | 717 |
| 3x70+50 | 1.8 | 1.6 | - | 15.4 | 12.6 | 12.6 | 1,057 |
| 3x95+70 | 2 | 1.8 | - | 17 | 15.4 | 15.4 | 1,360 |
| 3x25+25+2x16 | 1.4 | 1.4 | 1.2 | 10 | 10 | 8.1 | 602 |
| 3x35+25+2x16 | 1.6 | 1.4 | 1.2 | 11.2 | 10 | 8.1 | 687 |
| 3x50+35+2x16 | 1.6 | 1.6 | 1.2 | 12.6 | 11.2 | 8.1 | 867 |
| 3x70+50+2x16 | 1.8 | 1.6 | 1.2 | 15.4 | 12.6 | 8.1 | 1,207 |
| 3x95+70+2x16 | 2 | 1.8 | 1.2 | 17. | 15.4 | 8.1 | 1,510 |
| 3x25+25+16 | 1.4 | 1.4 | 1.2 | 10 | 10 | 8.1 | 527 |
| 3x35+25+16 | 1.6 | 1.4 | 1.2 | 11.2 | 10 | 8.1 | 612 |
| 3x50+35+16 | 1.6 | 1.6 | 1.2 | 12.6 | 11.2 | 8.1 | 792 |
| 3x70+50+16 | 1.8 | 1.6 | 1.2 | 15.4 | 12.6 | 8.1 | 1,132 |
| 3x95+70+16 | 2 | 1.8 | 1.2 | 17 | 15.4 | 8.1 | 1435 |
