22kV and 35kV Conductor Screened, XLPE Insulated Power Cable (22kV ACSR-CX, 35kV ACSR-CX)
Construction: Stranded aluminum conductor, galvanized steel reinforce(ACSR) and Semi-conducting screened, XLPE insulation power cable
Option: Water blocking material shall be filled the layer stranded of conductor
Application: Used for overhead power transmission line and power distribution line

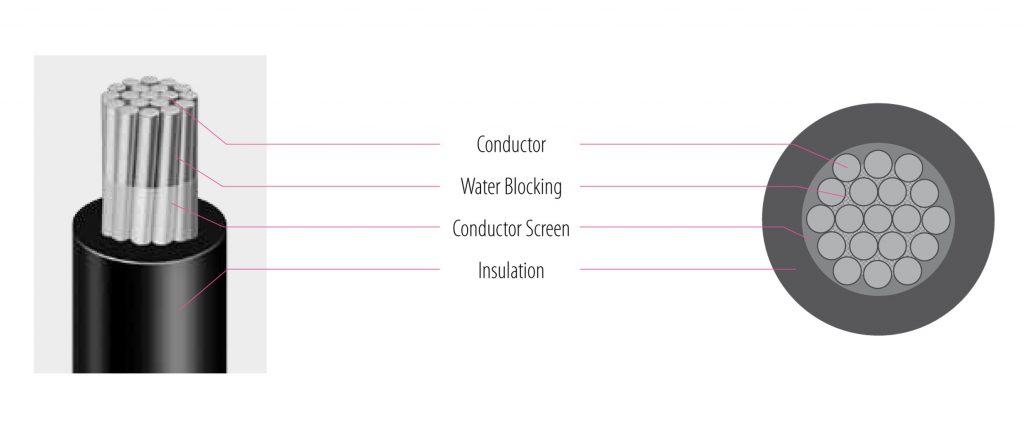

22kV and 35kV Conductor Screened, XLPE Insulated Power Cable (22kV AL-CX, 35kV AL-CX)
Construction: Stranded aluminum conductor and Semi-conducting screened, XLPE insulation power cable
Option: Water blocking material shall be filled the layer stranded of conductor
Application: Used for overhead power transmission line and power distribution line

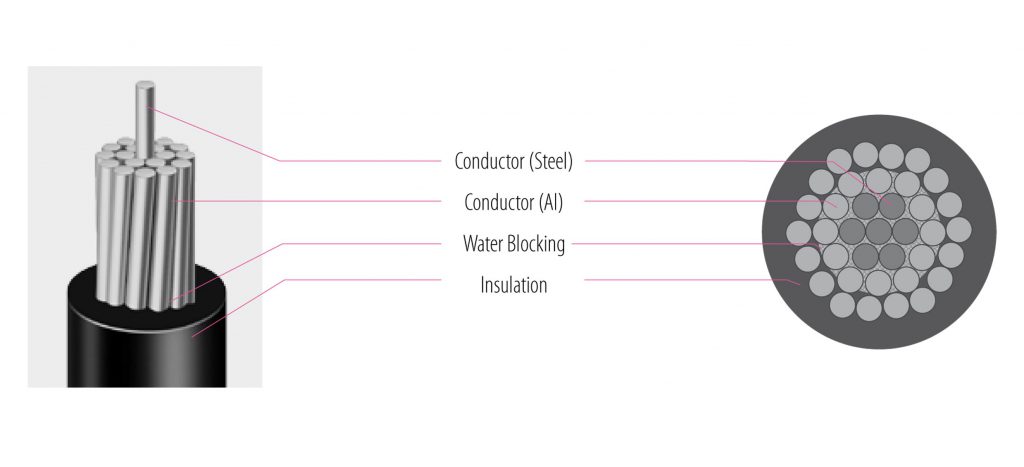

22kV and 35kV XLPE Insulated Power Cable (22kV ACSR-X, 35kV ACSR-X)
Construction: Stranded aluminum conductor, galvanized steel reinforce(ACSR) and XLPE insulation power cable
Option: Water blocking material shall be filled the layer stranded of conductor
Application: Used for overhead power transmission line and power distribution line

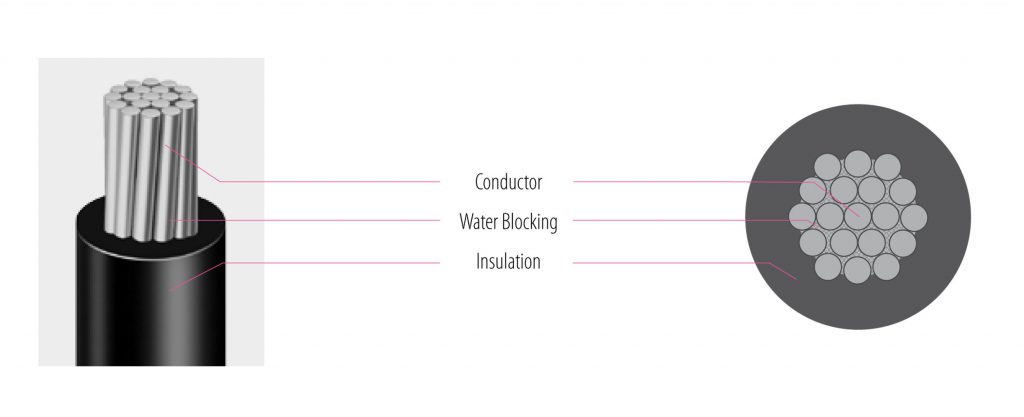

22kV and 35kV XLPE Insulated Power Cable (22kV AL-X, 35kV AL-X)
Construction: Stranded aluminum conductor and XLPE insulation power cable
Option: Water blocking material shall be filled the layer stranded of conductor
Application: Used for overhead power transmission line and power distribution line
Parameter
22kV ACSR-CX (BS EN 50397-1)
| Conductor | Thickness of Insulation | Approx. overall Diameter | Approx. Overall Weight | Min. Breaking Load | Max.D.C. Conductor Resistance(20℃） | |||
| Gross Sectional Area | Na.and Diameter of wires(Al) | Na. and Diameter of wires(Steel) | Outside Diameter | |||||
| mm2 | mm | mm | mm | mm | mm | kg/km | kN | Ω/ km |
| 50/8 | 6/3.20 | 1/3.20 | 9.6 | 2.5 | 17 | 330 | 17.112 | 0.5951 |
| 70/11 | 6/3.80 | 1/3.80 | 11.4 | 2.5 | 18 | 430 | 24.13 | 0.4218 |
| 95/16 | 6/4.50 | 1/4.50 | 13.5 | 2.5 | 20 | 560 | 33.369 | 0.3007 |
| 120/19 | 26/2.40 | 7/1.85 | 15.15 | 2.5 | 22 | 660 | 41.521 | 0.244 |
| 150/19 | 24/2.80 | 7/1.85 | 16.75 | 2.5 | 24 | 760 | 46.307 | 0.2046 |
| 150/24 | 26/2.70 | 7/2.10 | 17.1 | 2.5 | 24 | 810 | 52.279 | 0.2039 |
| 185/24 | 24/3.15 | 7/2.10 | 18.9 | 2.5 | 26 | 930 | 58.075 | 0.154 |
| 185/29 | 26/2.98 | 7/2.30 | 18.82 | 2.5 | 26 | 960 | 62.055 | 0.1519 |
| 240/32 | 24/3.60 | 7/2.40 | 21.6 | 2.5 | 29 | 1180 | 75.05 | 0.1182 |
| 300/39 | 24/4.00 | 7/2.65 | 23.95 | 2.5 | 31 | 1410 | 90.574 | 0.0958 |
| 330/43 | 54/2.80 | 7/2.80 | 25.2 | 2.5 | 32 | 1550 | 103.784 | 0.0869 |
| 400/51 | 54/3.05 | 7/3.05 | 27.5 | 2.5 | 35 | 1810 | 120.481 | 0.0733 |
35kV ACSR-CX (BS EN 50397-1)
| Conductor | Thickness of Insulation | Approx. overall Diameter | Approx. Overall Weight | Min. Breaking Load | Max.D.C. Conductor Resistance(20℃） | |||
| Gross Sectional Area | Na.and Diameter of wires(Al) | Na. and Diameter of wires(Steel) | Outside Diameter | |||||
| mm2 | mm | mm | mm | mm | mm | kg/km | kN | Ω/ km |
| 50/8 | 6/3.20 | 1/3.20 | 9.6 | 3.9 | 19 | 400 | 17.112 | 0.5951 |
| 70/11 | 6/3.80 | 1/3.80 | 11.4 | 3.9 | 21 | 510 | 24.13 | 0.4218 |
| 95/16 | 6/4.50 | 1/4.50 | 13.5 | 3.9 | 23 | 650 | 33.369 | 0.3007 |
| 120/19 | 26/2.40 | 7/1.85 | 15.15 | 3.9 | 25 | 760 | 41.521 | 0.244 |
| 150/19 | 24/2.80 | 7/1.85 | 16.75 | 3.9 | 26 | 860 | 46.307 | 0.2046 |
| 150/24 | 26/2.70 | 7/2.10 | 17.1 | 3.9 | 27 | 910 | 52.279 | 0.2039 |
| 185/24 | 24/3.15 | 7/2.10 | 18.9 | 3.9 | 29 | 1040 | 58.075 | 0.154 |
| 185/29 | 26/2.98 | 7/2.30 | 18.82 | 3.9 | 29 | 1070 | 62.055 | 0.1519 |
| 240/32 | 24/3.60 | 7/2.40 | 21.6 | 3.9 | 31 | 1300 | 75.05 | 0.1182 |
| 300/39 | 24/4.00 | 7/2.65 | 23.95 | 3.9 | 34 | 1540 | 90.574 | 0.0958 |
| 330/43 | 54/2.80 | 7/2.80 | 25.2 | 3.9 | 35 | 1690 | 103.784 | 0.0869 |
| 400/51 | 54/3.05 | 7/3.05 | 27.5 | 3.9 | 37 | 1960 | 120.481 | 0.0733 |
22kV AL-CX (BS EN 50397-1)
| Conductor | Thickness of Insulation | Apprax. Overall Diameter | Approx. Overalal Weight | Min. Breaking Load | Max.D.C. Conductor Resistance(20℃） | ||
| Coss Sectional Area | Na. and Diameter of wires | Outside Diameter | |||||
| mm2 | mm | mm | mm | mm | kg/km | kN | Ω/ km |
| 25 | 7/2.13 | 6.39 | 2.5 | 13 | 170 | 4.5 | 1.1489 |
| 35 | 7/2.51 | 753 | 2.5 | 15 | 200 | 5.913 | 0.8347 |
| 50 | 7/3.00 | 9 | 2.5 | 16 | 260 | 8.198 | 0.5748 |
| 70 | 7/3.55 | 10.65 | 2.5 | 17 | 330 | 11.288 | 0.4131 |
| 95 | 7/4.10 | 12.3 | 25 | 19 | 410 | 14.784 | 0.3114 |
| 120 | 19/2.80 | 14 | 2.5 | 21 | 500 | 19.89 | 0.2459 |
| 150 | 19/3.15 | 15.75 | 2.5 | 23 | 600 | 24.42 | 0.1944 |
| 185 | 19/3.50 | 17.5 | 25 | 24 | 720 | 29.832 | 0.1574 |
| 240 | 19/4.00 | 20 | 25 | 27 | 900 | 38.192 | 0.1205 |
| 300 | 37/3.15 | 22.05 | 2.5 | 29 | 1050 | 47.569 | 0.1 |
| 400 | 37/3.66 | 25.62 | 2.5 | 33 | 1360 | 63.42 | 0.074 |
35kV AL-CX (BS EN 50397-1)
| Conductor | Thickness of Insulation | Apprax. Overall Diameter | Approx. Overall Weight | Min. Breaking Load | Max.D.C Conductor Resistance(20℃） | ||
| Coss Sectional Area | Na. and Diameter of wires | Outside Diameter | |||||
| mm2 | mm | mm | mm | mm | kg/km | kN | Ω/ km |
| 25 | 7/2.13 | 6.39 | 3.9 | 16 | 230 | 4.5 | 1.1489 |
| 35 | 7/2.51 | 7.53 | 3.9 | 17 | 270 | 5.913 | 0.8347 |
| 50 | 7/3.00 | 9 | 3.9 | 19 | 330 | 8.198 | 0.5748 |
| 70 | 7/3.55 | 10.65 | 3.9 | 20 | 410 | 11.288 | 0.4131 |
| 95 | 7/4.10 | 12.3 | 3.9 | 22 | 500 | 14.784 | 0.3114 |
| 120 | 19/2.80 | 14 | 3.9 | 24 | 590 | 19.89 | 0.2459 |
| 150 | 19/3.15 | 15.75 | 3.9 | 26 | 700 | 24.42 | 0.1944 |
| 185 | 19/3.50 | 17.5 | 3.9 | 27 | 820 | 29.832 | 0.1574 |
| 240 | 19/4.00 | 20 | 3.9 | 30 | 1010 | 38.192 | 0.1205 |
| 300 | 37/3.15 | 22.05 | 3.9 | 32 | 1180 | 47.569 | 0.1 |
| 400 | 37/3.66 | 25.62 | 3.9 | 35 | 1510 | 63.42 | 0.074 |
22kV ACSR-X (BS EN 50397-1)
| Conductor | Thickness of Insulation | Approx. overall Diameter | Approx. Overall Weight | Min. Breaking Load | Max.D.C. Conductor Resistance(20℃） | |||
| Gross Sectional Area | Na.and Diameter of wires(Al) | Na. and Diameter of wires(Steel) | Outside Diameter | |||||
| mm2 | mm | mm | mm | mm | mm | kg/km | kN | Ω/ km |
| 50/8 | 6/3.20 | 1/3.20 | 9.6 | 3.5 | 17 | 340 | 17.112 | 0.5951 |
| 70/11 | 6/3.80 | 1/3.80 | 11.4 | 3.5 | 19 | 440 | 24.13 | 0.4218 |
| 95/16 | 6/4.50 | 1/4.50 | 13.5 | 3.5 | 21 | 570 | 33.369 | 0.3007 |
| 120/19 | 26/2.40 | 7/1.85 | 15.15 | 3.5 | 23 | 680 | 41.521 | 0.244 |
| 150/19 | 24/2.80 | 7/1.85 | 16.75 | 3.5 | 24 | 780 | 46.307 | 0.2046 |
| 150/24 | 26/2.70 | 7/2.10 | 17.1 | 3.5 | 25 | 830 | 52.279 | 0.2039 |
| 185/24 | 24/3.15 | 7/2.10 | 18.9 | 3.5 | 26 | 950 | 58.075 | 0.154 |
| 185/29 | 26/2.98 | 7/2.30 | 18.82 | 3.5 | 26 | 970 | 62.055 | 0.1519 |
| 240/32 | 24/3.60 | 7/2.40 | 21.6 | 3.5 | 29 | 1195 | 75.05 | 0.1182 |
| 300/39 | 24/4.00 | 7/2.65 | 23.95 | 3.5 | 32 | 1430 | 90.574 | 0.0958 |
| 330/43 | 54/2.80 | 7/2.80 | 25.2 | 3.5 | 33 | 1570 | 103.784 | 0.0869 |
| 400/51 | 54/3.05 | 7/3.05 | 27.5 | 3.5 | 35.1 | 1830 | 120.481 | 0.0733 |
35kV ACSR-X (BS EN 50397-1)
| Conductor | Thickness of Insulation | Approx. overall Diameter | Approx. Overall Weight | Min. Breaking Load | Max.D.C. Conductor Resistance(20℃） | |||
| Gross Sectional Area | Na.and Diameter of wires(Al) | Na. and Diameter of wires(Steel) | Outside Diameter | |||||
| mm2 | mm | mm | mm | mm | mm | kg/km | kN | Ω/ km |
| 50/8 | 6/3.20 | 1/3.20 | 9.6 | 55 | 21 | 450 | 17.112 | 0.5951 |
| 70/11 | 6/3.80 | 1/3.80 | 11.4 | 55 | 23 | 560 | 24.13 | 0.4218 |
| 95/16 | 6/4.50 | 1/4.50 | 13.5 | 55 | 25 | 710 | 33.369 | 0.3007 |
| 120/19 | 26/2.40 | 7/1.85 | 15.15 | 55 | 27 | 820 | 41.521 | 0.244 |
| 150/19 | 24/2.80 | 7/1.85 | 16.75 | 55 | 28 | 930 | 46.307 | 0.2046 |
| 150/24 | 26/2.70 | 7/2.10 | 17.1 | 55 | 29 | 980 | 52.279 | 0.2039 |
| 185/24 | 24/3.15 | 7/2.10 | 18.9 | 5.5 | 30 | 1110 | 58.075 | 0.154 |
| 185/29 | 26/2.98 | 7/2.30 | 18.82 | 55 | 30 | 1130 | 62.055 | 0.1519 |
| 240/32 | 24/3.60 | 7/2.40 | 21.6 | 5.5 | 33 | 1370 | 75.05 | 0.1182 |
| 300/39 | 24/4.00 | 7/2.65 | 23.95 | 55 | 36 | 1630 | 90.574 | 0.0958 |
| 330/43 | 54/2.80 | 7/2.80 | 25.2 | 55 | 37 | 1770 | 103.784 | 0.0869 |
| 400/51 | 54/3.05 | 7/3.05 | 27.5 | 55 | 39 | 2050 | 120.481 | 0.0733 |
22kV AL-X (BS EN 50397-1)
| Conductor | Thickness of Insulation | Approx. Overall Diameter | Approx. Overall Weight | Min. Breaking Load | Max.D.C Conductor Resistance(20℃ | ||
| Coss Sectional Area | Na. and Diameter of wires | Outside Diameter | |||||
| mm2 | mm | mm | mm | mm | kg/km | kN | Ω/ km |
| 25 | 7/2.13 | 6.39 | 3.5 | 14 | 180 | 4.5 | 1.1489 |
| 35 | 7/2.51 | 7.53 | 3.5 | 15 | 220 | 5.913 | 0.8347 |
| 50 | 7/3.00 | 9 | 3.5 | 16 | 270 | 8.198 | 0.5748 |
| 70 | 7/3.55 | 10.65 | 3.5 | 18 | 350 | 11.288 | 0.4131 |
| 95 | 7/4.10 | 12.3 | 3.5 | 20 | 430 | 14.784 | 0.3114 |
| 120 | 19/2.80 | 14 | 3.5 | 22 | 510 | 19.89 | 0.2459 |
| 150 | 19/3.15 | 15.75 | 3.5 | 23 | 620 | 24.42 | 0.1944 |
| 185 | 19/3.50 | 17.5 | 3.5 | 25 | 730 | 29.832 | 0.1574 |
| 240 | 19/4.00 | 20 | 3.5 | 28 | 910 | 38.192 | 0.1205 |
| 300 | 37/3.15 | 22.05 | 3.5 | 30 | 1075 | 47.569 | 0.1 |
| 400 | 37/3.66 | 25.62 | 3.5 | 33 | 1390 | 63.42 | 0.074 |
35kV AL-X (BS EN 50397-1)
| Conductor | Thickness of Insulation | Approx. Overall Diameter | Approx. Overall Weight | Min. Breaking Load | Max.D.C Conductor Resistance(20℃） | ||
| Cross Sectional Area | Na. and Diameter of wires | Outside Diameter | |||||
| mm2 | mm | mm | mm | mm | kg/km | kN | Ω/ km |
| 25 | 7/2.13 | 6.39 | 5.5 | 18 | 272 | 4.5 | 1.1489 |
| 35 | 7/2.51 | 7.53 | 5.5 | 19 | 317 | 5.913 | 0.8347 |
| 50 | 7/3.00 | 9 | 5.5 | 21 | 382 | 8.198 | 0.5748 |
| 70 | 7/3.55 | 10.65 | 5.5 | 22 | 463 | 11.288 | 0.4131 |
| 95 | 7/4.10 | 12.3 | 5.5 | 24 | 554 | 14.784 | 0.3114 |
| 120 | 19/2.80 | 14 | 5.5 | 26 | 651 | 19.89 | 0.2459 |
| 150 | 19/3.15 | 15.75 | 5.5 | 27 | 765 | 24.42 | 0.1944 |
| 185 | 19/3.50 | 17.5 | 5.5 | 29 | 889 | 29.832 | 0.1574 |
| 240 | 19/4.00 | 20 | 5.5 | 32 | 1084 | 38.192 | 0.1205 |
| 300 | 37/3.15 | 22.05 | 5.5 | 34 | 1258 | 47.569 | 0.1 |
| 400 | 37/3.66 | 25.62 | 5.5 | 37 | 1595 | 63.42 | 0.074 |
