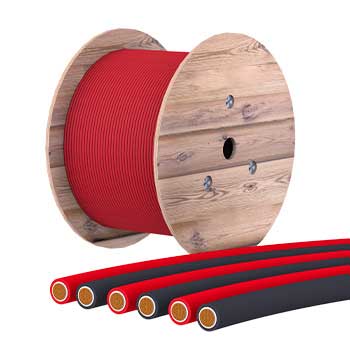

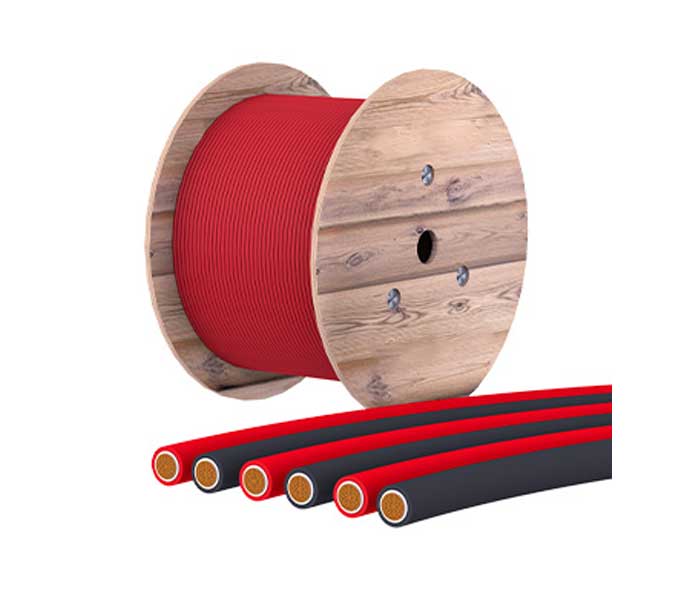

Qingzhou solar PV1-F cable is a highly flexible photovoltaic wire specifically engineered for solar panel connections. It is compatible with mainstream solar connectors and carries multiple international certifications, including TUV, UL, IEC, CE, and RETIE. The cable meets UL4703, IEC62930, and EN50618 standards, ensuring reliable performance across global photovoltaic applications.
Designed for versatility, this single-core cable can be widely used in solar farms, rooftop PV systems, and floating solar power stations. It performs stably in harsh outdoor environments such as rooftops, deserts, lakes, coastal areas, and mountainous regions—handling high temperatures, high humidity, and strong salt corrosion with ease.
As a critical component of the solar power system, high-quality cabling ensures long-term, safe, and efficient operation. It helps reduce system failure rates and lowers maintenance costs throughout the lifetime of the photovoltaic installation.
 |
Conductor | Class 5 (flexible) tinned copper, based on EN 60228 and IEC 60228 |
| Insulation & Sheath Jacket | Polyolefin Copolymer electron-beam cross-linked | |
| Rated voltage | 1000/1800VDC,Uo/U=600V/1000VAC | |
| Test voltage | 6500V,50Hz,10Min | |
| Temperature Rating | -40oC-120oC | |
| Fire Performance | Flame non-propagation based on UNE-EN 60332-1 and IEC 60332-1 | |
| Smoke Emission | Based on UNE-EN 60754-2 and IEC 60754-2. | |
| European CPR | Cca/Dca/Eca, according to EN 50575 | |
| Water performance | AD7 | |
| Minimum bend radius | 5D (D:cable diameter) | |
| Optional features | Meter by meter marking, rodent-proof and termite-proof | |
| Certification | TUV/UL/RETIE/IEC/CE/RoHS |
Dimensions Of Solar Cable，The size from 1.5mm2 to 120mm2.
| Construction | Conductor Construction | Conductor | Outer | Resistance Max | Current Carring Capacity |
| n×mm2 | n×mm | mm | mm | Ω/Km | A |
| (16AWG)1×1.5 | 30×0.25 | 1.58 | 4.90 | 13.3 | 30 |
| (14AWG)1×2.5 | 50×0.256 | 2.06 | 5.45 | 7.98 | 41 |
| (12AWG)1×4.0 | 56×0.3 | 2.58 | 6.15 | 4.75 | 55 |
| (10AWG)1×6 | 84×0.3 | 3.15 | 7.15 | 3.39 | 70 |
| (8AWG)1×10 | 142×0.3 | 4.0 | 9.05 | 1.95 | 98 |
| (6AWG)1×16 | 228×0.3 | 5.7 | 10.2 | 1.24 | 132 |
| (4AWG)1×25 | 361×0.3 | 6.8 | 12.0 | 0.795 | 176 |
| (2AWG)1×35 | 494×0.3 | 8.8 | 13.8 | 0.565 | 218 |
| (1/0AWG)1×50 | 418×0.39 | 10.0 | 16.0 | 0.393 | 280 |
| (2/0AWG)1×70 | 589×0.39 | 11.8 | 18.4 | 0.277 | 350 |
| (3/0AWG)1×95 | 798×0.39 | 13.8 | 21.3 | 0.210 | 410 |
| (4/0AWG)1×120 | 1007×0.39 | 15.6 | 21.6 | 0.164 | 480 |
