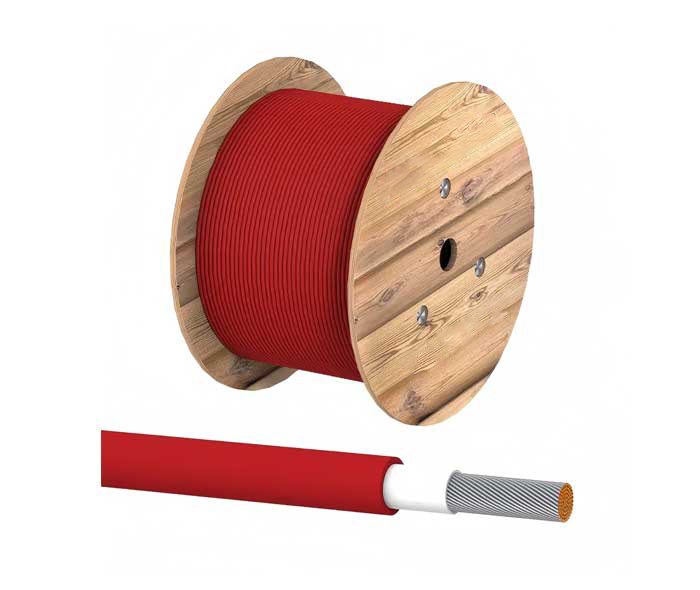

Qingzhou solar cable is highly flexible cable specially designed for connecting photovoltaic panels, compatible with all major connectors, certified by various international certifications such as TUV/UL/IEC/CE/RETIE, compliant with UL4703, IEC62930 and EN50618 standards, It is suitable for different photovoltaic power generation fields such as solar plants, rooftop solar installations and floating power stations. This versatile single core cable is designed to meet the different needs of the solar industry. It is suitable for various harsh outdoor environments such as rooftop, deserts, lakes, seasides, and mountains (climate environment with high temperature, high humidity, and strong salt content). It is an important part of the solar system. Good connection quality ensures the long-term and safe operation of the photovoltaic system and effectively reduces the failure rate of the photovoltaic system and the later operating costs.
Dimensions Of Solar Cable，The size from 1.5mm2 to 120mm2.
Specification Of Solar Products
 |

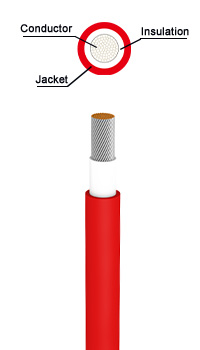

Conductor | Class 5 (flexible) tinned copper, based on EN 60228 and IEC 60228 |
| Insulation & Sheath Jacket | Polyolefin Copolymer electron-beam cross-linked | |
| Rated voltage | 1500V/1800VDC,Uo/U=600V/1000VAC | |
| Test voltage | 6500V,50Hz,10Min | |
| Temperature Rating | -40oC-120oC | |
| Fire Performance | Flame non-propagation based on UNE-EN 60332-1 and IEC 60332-1 | |
| Smoke Emission | Based on UNE-EN 60754-2 and IEC 60754-2. | |
| European CPR | Cca/Dca/Eca, according to EN 50575 | |
| Water performance | AD7 | |
| Minimum bend radius | 5D (D:cable diameter) | |
| Optional features | Meter by meter marking, rodent-proof and termite-proof | |
| Certification | TUV/UL/RETIE/IEC/CE/RoHS |
Dimensions Of Solar Cable，The size from 1.5mm2 to 120mm2.
| Construction | Conductor Construction | Conductor | Outer | Resistance Max | Current Carring Capacity |
| n×mm2 | n×mm | mm | mm | Ω/Km | A |
| (16AWG)1×1.5 | 30×0.25 | 1.58 | 4.90 | 13.3 | 30 |
| (14AWG)1×2.5 | 50×0.256 | 2.06 | 5.45 | 7.98 | 41 |
| (12AWG)1×4.0 | 56×0.3 | 2.58 | 6.15 | 4.75 | 55 |
| (10AWG)1×6 | 84×0.3 | 3.15 | 7.15 | 3.39 | 70 |
| (8AWG)1×10 | 142×0.3 | 4.0 | 9.05 | 1.95 | 98 |
| (6AWG)1×16 | 228×0.3 | 5.7 | 10.2 | 1.24 | 132 |
| (4AWG)1×25 | 361×0.3 | 6.8 | 12.0 | 0.795 | 176 |
| (2AWG)1×35 | 494×0.3 | 8.8 | 13.8 | 0.565 | 218 |
| (1/0AWG)1×50 | 418×0.39 | 10.0 | 16.0 | 0.393 | 280 |
| (2/0AWG)1×70 | 589×0.39 | 11.8 | 18.4 | 0.277 | 350 |
| (3/0AWG)1×95 | 798×0.39 | 13.8 | 21.3 | 0.210 | 410 |
| (4/0AWG)1×120 | 1007×0.39 | 15.6 | 21.6 | 0.164 | 480 |
