Product Information:
Material: aluminum-covered steel, for use on ACSR, AAC, AAAC, and plastic Jacketed conductors.

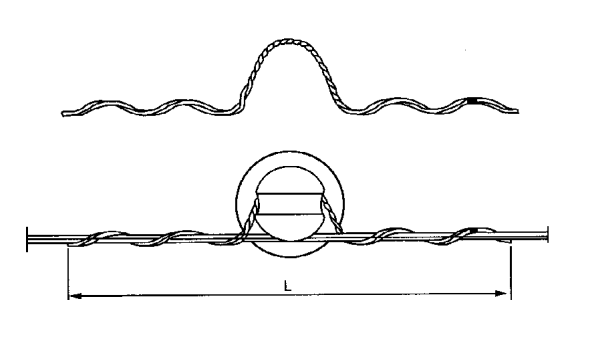

Top Tie

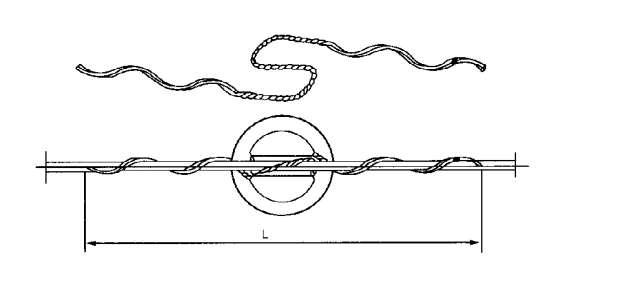

Side tie
Material: aluminum-covered steel, for use on ACSR, AAC, AAAC, and plastic Jacketed conductors.
Top Tie
| Type | Conductor Dia. (mm) | L(mm)Length | Color code | Mode Dia Color code | Weight (Kg) |
| DT-480550C | 4.80-5.50 | 610 | Blue | Mark: Black for Type C | 0.08 |
| DT-551620C | 5.51-6.20 | 640 | Brown | 0.09 | |
| DT-621700C | 6.21-7.00 | 660 | Orange | 0.09 | |
| DT-701800C | 7.01-8.00 | 660 | Purple | 0.09 | |
| DT-801910C | 8.01-9.10 | 710 | Red | 0.09 | |
| DT-9111030C | 9.11-10.30 | 760 | Yellow | 0.09 | |
| DT-10311170C | 10.31-11.70 | 640 | Blue | 0.15 | |
| DT-1171320C | 11.71-13.20 | 640 | Orange | 0.16 | |
| DT-13211490C | 13.21-14.90 | 710 | Red | 0.17 | |
| DT-14911690C | 14.91-16.90 | 760 | Purple | 0.17 | |
| DT-16911920C | 16.91-19.20 | 790 | Brown | 0.18 | |
| DT-19212170C | 19.21-21.70 | 810 | Red | 0.18 | |
| DT-21712460C | 21.71-24.60 | 860 | Blue | 0.19 | |
| DT-24612780C | 24.61-27.80 | 940 | Green | 0.19 | |
| DT-27813150C | 27.81-31.50 | 1020 | Yellow | 0.2 |
| Type | Conductor | L (mm) | Color code | Mode Dia Color | Weight (Kg) |
| Dia. | Length | code | |||
| DT-480550C | 4.80-5.50 | 410 | Blue | Mark: Black for Type C | 0.06 |
| DT-551620C | 5.51-6.20 | 430 | Brown | 0.07 | |
| DT-621700C | 6.21-7.00 | 480 | Orange | 0.08 | |
| DT-701800C | 7.01-8.00 | 540 | Purple | 0.09 | |
| DT-801910C | 8.01-9.10 | 610 | Red | 0.13 | |
| DT-9111030C | 9.11-10.30 | 660 | Yellow | 0.14 | |
| DT-10311170C | 10.31-11.70 | 660 | Blue | 0.18 | |
| DT-1171320C | 11.71-13.20 | 740 | Orange | 0.19 | |
| DT-13211490C | 13.21-14.90 | 790 | Red | 0.2 | |
| DT-14911690C | 14.91-16.90 | 580 | Purple | 0.21 | |
| DT-16911920C | 16.91-19.20 | 640 | Brown | 0.27 | |
| DT-19212170C | 19.21-21.70 | 660 | Red | 0.28 | |
| DT-21712460C | 21.71-24.60 | 710 | Blue | 0.29 | |
| DT-24612780C | 24.61-27.80 | 740 | Green | 0.3 | |
| DT-27813150C | 27.81-31.50 | 840 | Yellow | 0.34 |
