Features
●Forged, one-piece design
●Supplied assembled with square nut
●Eyel.D- 1 1/8"x 1 5/8"
Material
Steel hot dip galvanized
5/8”Diameter - Minimum Tensile Strength 13,550 Ibs
Shoulder Eye bolts
Application
Shoulder eyebolts are used to attach suspension and deadend insulators，clevises， links and other hardware to poles and
crossarms. The integral collar provides a broad bearing surface to resist elongation of the bolt hole in wood poles and crossarms.
Features
●3/4 diameter, forged, one- piece design
●Supplied assembled with square nut
●Ultimate Tensile Strength: 20,050 Ibs
Material
Steel hot dip galvanized
3/4”Diameter - Ultimate Tensile Strength 20,050 Ibs
●Forged, one-piece design
●Supplied assembled with square nut
●Eyel.D- 1 1/8"x 1 5/8"
Material
Steel hot dip galvanized
5/8”Diameter - Minimum Tensile Strength 13,550 Ibs
| Catalog number | Bolt Length (in) | Thread Length (in) | Weight /100 (Ibs) |
| L .R9614 | 1/2x 6 | 3 | 62 |

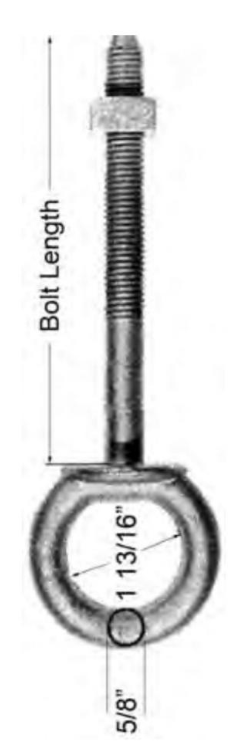

Shoulder Eye bolts
Application
Shoulder eyebolts are used to attach suspension and deadend insulators，clevises， links and other hardware to poles and
crossarms. The integral collar provides a broad bearing surface to resist elongation of the bolt hole in wood poles and crossarms.
Features
●3/4 diameter, forged, one- piece design
●Supplied assembled with square nut
●Ultimate Tensile Strength: 20,050 Ibs
Material
Steel hot dip galvanized
3/4”Diameter - Ultimate Tensile Strength 20,050 Ibs
| Catalog number | Bolt Length (in) | Thread Length (in) | Weight /100 (Ibs) |
| LR9528 | 8 | 4 | 204 |
| LR9530 | 10 | 6 | 220 |
| LR9532 | 12 | 6 | 232 |
| LR9534 | 14 | 6 | 244 |
| LR9536 | 16 | 6 | 260 |
| LR9538 | 18 | 6 | 280 |
| LR9540 | 20 | 6 | 300 |
