Overview
MGT T-Connector belongs to tubular bus-bar fitting. MGT type T-connectors are used to fix or hang bus-bars on insulators at the substation, including rectangular channel, tube bus and cable supports in accordance with bus type.
MGT T-connector is hot-dip galvanized steel. MGT T-connectors are clamp for tubular bus-bar. Tubular Bus-bar MGT T-connector is suitable for aluminum cable. Clamping bolts have hex-stops for one-wrench installation. Cap screws are supplied for upright mounting. Reduced weight. Easy identification. Simple installation.
Parameter

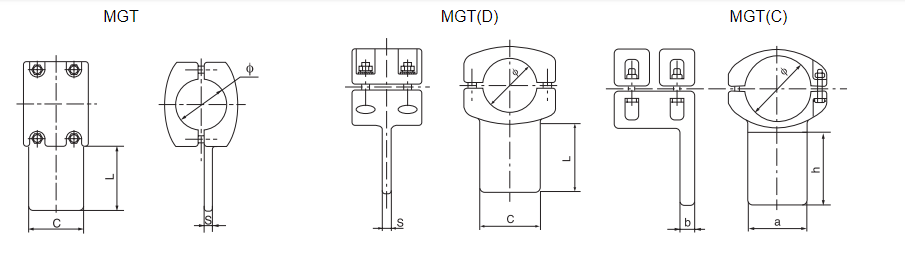

MGT
MGT(D)
MGT(C)
MGT T-Connector belongs to tubular bus-bar fitting. MGT type T-connectors are used to fix or hang bus-bars on insulators at the substation, including rectangular channel, tube bus and cable supports in accordance with bus type.
MGT T-connector is hot-dip galvanized steel. MGT T-connectors are clamp for tubular bus-bar. Tubular Bus-bar MGT T-connector is suitable for aluminum cable. Clamping bolts have hex-stops for one-wrench installation. Cap screws are supplied for upright mounting. Reduced weight. Easy identification. Simple installation.
Parameter
MGT
| Catalog | Suitable | Dimensions(mm) | Weight | |||
| No. | Busbar (mm) | φ | L | C | S | (kg) |
| MGT-50 | 50/44 | 50 | 85 | 8o | 14 | 2 |
| MGT-70 | 70/64 | 70 | 85 | 80 | 16 | 2.4 |
| MGT-8o | 80/72 | 80 | 85 | 8o | 16 | 4 |
| MGT-90 | 90/80 | 90 | 105 | 100 | 18 | 4.2 |
| MGT-100 | 100/90 | 100 | 105 | 100 | 18 | 4.4 |
| MGT-110 | 110/100 | 110 | 105 | 100 | 18 | 5 |
| MGT-120 | 120/110 | 120 | 105 | 100 | 18 | 5.2 |
| MGT-130 | 130/116 | 130 | 130 | 125 | 20 | 7.2 |
| MGT-150 | 150/136 | 150 | 130 | i25 | 20 | 8.2 |
| MGT-170 | 170/156 | 170 | 160 | 150 | 22 | 11.5 |
| MGT-200 | 200/180 | 200 | 170 | 160 | 22 | 15 |
| MGT-250 | 250/230 | 250 | 180 | 170 | 24 | 19.5 |
| MGT-150.1 | 150/136 | 150 | 160 | 150 | 30 | 12.3 |
| Catalog | Suitable | Dimensions(mm) | Weight | |||
| No. | Busbar (mm) | φ | L | C | S | (kg) |
| MGT-70D | 70/64 | 70 | 80 | 100 | 16 | 2.4 |
| MGT-8OD | 80/72 | 80 | 80 | 100 | 16 | 4 |
| MGT-90D | 90/80 | 90 | 100 | 125 | 18 | 4.2 |
| MGT-100D | 100/90 | 100 | 100 | 125 | 18 | 3.6 |
| MGT-11OD | 110/100 | 110 | 100 | 125 | 18 | 4 |
| MGT-120D | 120/110 | 120 | 100 | 125 | 18 | 4.3 |
| MGT-130D | 130/116 | 130 | 125 | 150 | 20 | 5.6 |
| MGT-15OD | 150/136 | 150 | 125 | 150 | 20 | 7 |
| MGT-17OD | 170/156 | 170 | 150 | 180 | 22 | 9.5 |
| MGT-200D | 200/180 | 200 | 160 | 200 | 22 | 15 |
| MGT-250D | 250/230 | 250 | 170 | 200 | 24 | 21 |
| Catalog | Suitable | Dimensions(mm) | Weight | |||
| No. | Busbar (mm) | φ | a | h | b | (kg) |
| MGT-50c | 50/44 | 70 | 50 | 85 | 16 | 2 |
| MGT-60C | 60/54 | 80 | 80 | 100 | 16 | 2.3 |
| MGT-70c | 70/64 | 70 | 80 | 100 | 16 | 2.5 |
| MGT-8oc | 80/72 | 80 | 80 | 100 | 16 | 2.7 |
| MGT-90c | 90/80 | 90 | 100 | 125 | 18 | 3.3 |
| MGT-100C | 100/90 | 100 | 100 | 125 | 18 | 3.8 |
| MGT-110C | 110/100 | 110 | 100 | 125 | 18 | 5.2 |
| MGT-120c | 120/110 | 120 | 100 | 125 | 18 | 5.4 |
| MGT-130C | 130/116 | 130 | 125 | 150 | 20 | 6.7 |
| MGT-150c | 150/136 | 150 | 125 | 150 | 20 | 8 |
| MGT-170c | 170/156 | 170 | 150 | 180 | 22 | 10.5 |
| MGT-200c | 200/180 | 200 | 150 | 200 | 22 | 16 |
| MGT-250c | 250/230 | 250 | 150 | 200 | 24 | 22 |
