Product Information:
MPS carriage bolts are rolLthreaded with square shoulder and square nut.
Material
Steel hot dip galvanized
3/8”Diameter - Minimum Tensile Strength 4,250 Ilbs
1/2”Diameter - Minimum Tensile Strength 8 ,500 Ibs
Clevis bolts
Product Information:
Clevis bolts are used to provide dead end connections to eyes or links. Clevis end includes 1/2”diameter machine bolt with nut and a stainless steel self locking cotter pin to provide a secure vibration proof assembly. design.
Material
Steel hot dip galvanized
Minimum Tensile Strength 13,500 Ibs
MPS carriage bolts are rolLthreaded with square shoulder and square nut.
Material
Steel hot dip galvanized
3/8”Diameter - Minimum Tensile Strength 4,250 Ilbs
| Catalog number | Bolt Length (in) | Thread Length (in) | Weight /100 (Ibs) |
| LR8634 | 4 | 3 | 16 |
| LR8634-1/2 | 41/2 | 3 | 16 |
| LR8635 | 5 | 3 | 18 |
| LR8636 | 6 | 3 | 22 |
| LR8637 | 7 | 4 | 24 |
| LR8638 | 8 | 4 | 26 |
| LR8640 | 10 | 4 | 34 |
1/2”Diameter - Minimum Tensile Strength 8 ,500 Ibs
| Catalog number | Bolt Length (in) | Thread Length (in) | Weight /100 (Ibs) |
| LR8645 | 5 | 3 | 35 |
| LR8646 | 6 | 3 | 41 |
| LR8647 | 7 | 4 | 44 |
| LR8648 | 8 | 4 | 51 |

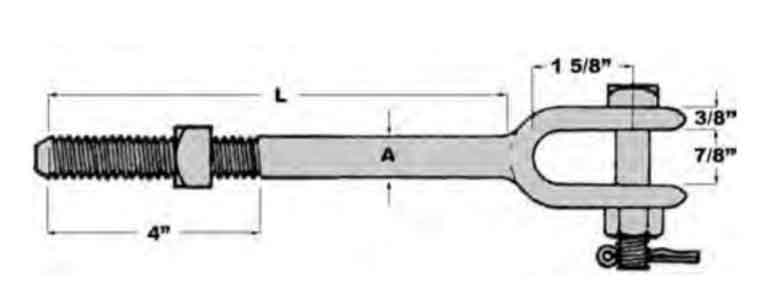

Clevis bolts
Product Information:
Clevis bolts are used to provide dead end connections to eyes or links. Clevis end includes 1/2”diameter machine bolt with nut and a stainless steel self locking cotter pin to provide a secure vibration proof assembly. design.
Material
Steel hot dip galvanized
Minimum Tensile Strength 13,500 Ibs
| Catalog number | Size (in) | Thread Length (in) | Weight /100 (Ibs) |
| LR7810 | 5/8x 10 | 4 | 172 |
| LR7812 | 5/8 x 12 | 4 | 192 |
| LR7814 | 5/8x 14 | 4 | 208 |
