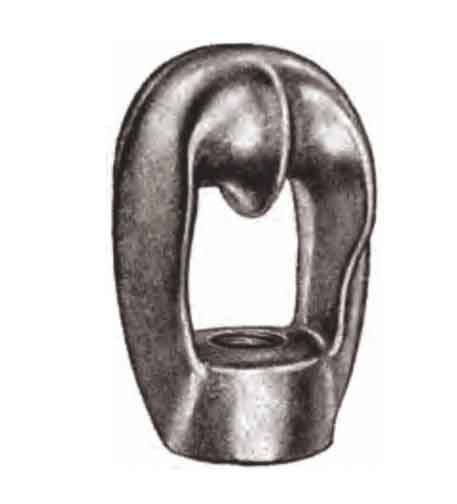

Thimble eyenuts are used for span, head and stub guying, twin eyenuts accomodate double guys. Oval eyenuts are used for deadending with suspension and strain insulators or thimble clevises.
Features
●Eyenuts are tapped to fit hot dip galvanized bolts made to ANSI specifications
●Designed to develop strength ratings consistent with the bolts withwhich they are used - i.e. 1/2" = 85000 Ibs, 5/8" = 13,550Ibs, 3/4" =20,050Ibs, 1"= 33 , 500 Ibs
Material
Steel hot dip galvanized
Twineye
Twin eyenuts accomodate double guys.
Material
Steel hot dip galvanized
Clevis Eyenut
Material
Ductile iron hot dip galvanized
Pole Steps For Wooden Poles
Material
Steel hot dip galvanized
Thimble eyenuts are used for span, head and stub guying, twin eyenuts accomodate double guys. Oval eyenuts are used for deadending with suspension and strain insulators or thimble clevises.
Features
●Eyenuts are tapped to fit hot dip galvanized bolts made to ANSI specifications
●Designed to develop strength ratings consistent with the bolts withwhich they are used - i.e. 1/2" = 85000 Ibs, 5/8" = 13,550Ibs, 3/4" =20,050Ibs, 1"= 33 , 500 Ibs
Material
Steel hot dip galvanized

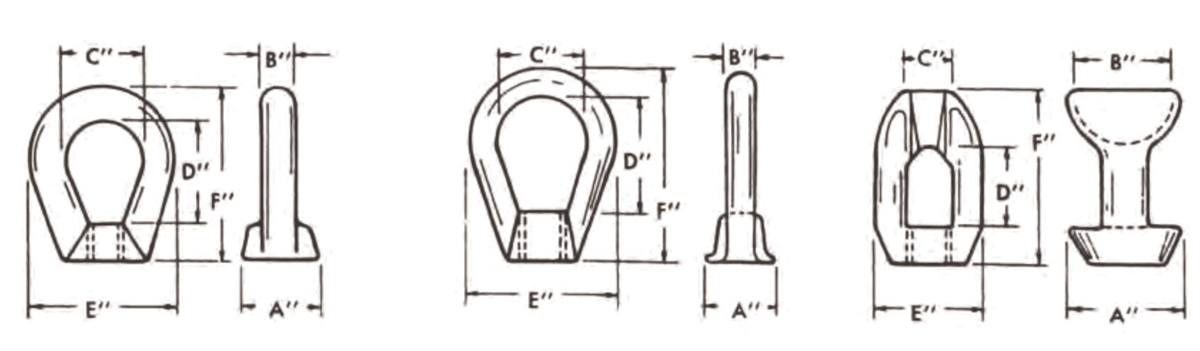

| Catalog number | Fig. | Eye NutsBolt Size (in) | A | B | c | D | E | F | Weight /100 (Ibs) |
| EN-4 | 1 | 1/2 | 13/8 | 9/6 | 11/2 | 13/4 | 25/8 | 3 | 100 |
| LR1092 | 2 | 5/8 | 13/8 | 9/6 | 11/2 | 13/4 | 25/8 | 3 | 72 |
| LR1093 | 2 | 3/4 | 13/8 | 9/6 | 11/2 | 13/4 | 25/8 | 3 | 53 |
| ENL- -5 | 3 | 5/8 | 13/8 | 5/8 | 11/2 | 2/21 | 8/25 | 4 | 100 |
| ENL-6 | 3 | 3/4 | 13/8 | 5/8 | 11/2 | 21/2 | 25/8 | 4 | 100 |
| LR6510 | 3 | 5/8 | 11/2 | 11/2 | 7/8 | 13/8 | 17/8 | 3 | 100 |
| LR6511 | 3 | 3/4 | 11/8 | 11/2 | 7/8 | 13/8 | 17/8 | 3 | 91 |
| LR16512 | 3 | 1 | 2 | 2 | 7/8 | 11/2 | 2 | Feb-41 | 200 |
Twin eyenuts accomodate double guys.
Material
Steel hot dip galvanized
| Catalog number | Bolt Length (in) | Thread Length (in) | Weight /100 (Ibs) |
| LR6515 | 5/8 | 5/8 | 177 |
| LR6516 | 3/4 | 5/8 | 176 |

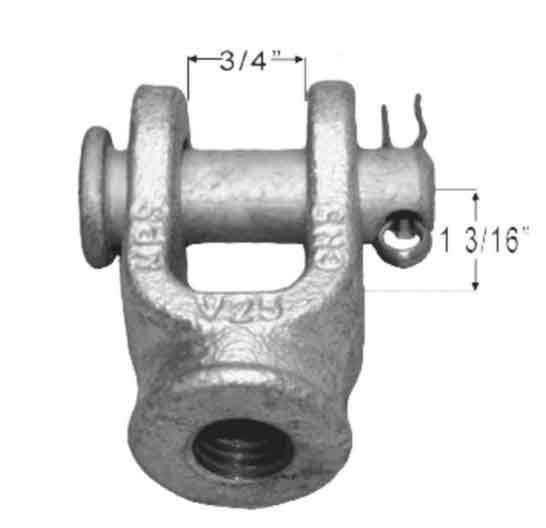

Clevis Eyenut
Material
Ductile iron hot dip galvanized
| Catalog number | Bolt Length (in) | Thread Length (in) | Weight /100 (Ibs) |
| CN-5 | 5/8 | 5/8 | 100 |

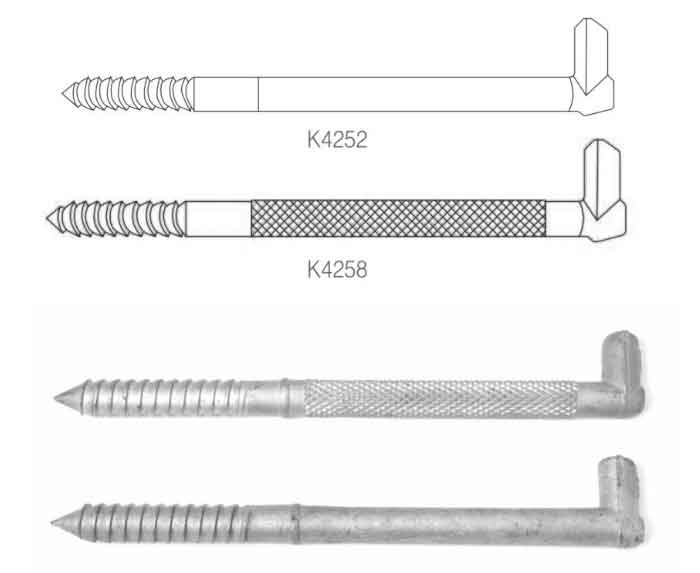

Pole Steps For Wooden Poles
Material
Steel hot dip galvanized
| Type | Stock Number | Diameter Steel | Overall Length | Height Hook | Thread Length |
| Standard Hook | K4252 | 5/8 | 10 | 1 | 2-3/4 |
| Standard Hook | K4258 | 5/8 | 14 | 1 | 4-3/4 |
