Cross Arm
Product Information:
Electrical cross arm is also named power pole cross arms, utility pole cross arms, telephone pole cross arms, light pole cross arms or crossarms for short. In different application setups, there are different configurations for the electrical cross arm. For instance, power pole cross arms are connected with the pin insulator by insulator pin, and the insulator connects with the wire to realize the power delivery.
Armements Pour Lignes Rigides
VOUTE RIGIDE VR1 ET VR2
VOUTE RIGIDE GAINEE VR1G ET VR2G
UTILISATION
●Reseau HTA sur isolateurs rigides.
●La forme de ces armements a ete specialement etudiee pour la protection des oiseaux.
*Les efforts sont donnes en nominal. Effort en limite elastique: 1,6.
Product Information:
Electrical cross arm is also named power pole cross arms, utility pole cross arms, telephone pole cross arms, light pole cross arms or crossarms for short. In different application setups, there are different configurations for the electrical cross arm. For instance, power pole cross arms are connected with the pin insulator by insulator pin, and the insulator connects with the wire to realize the power delivery.

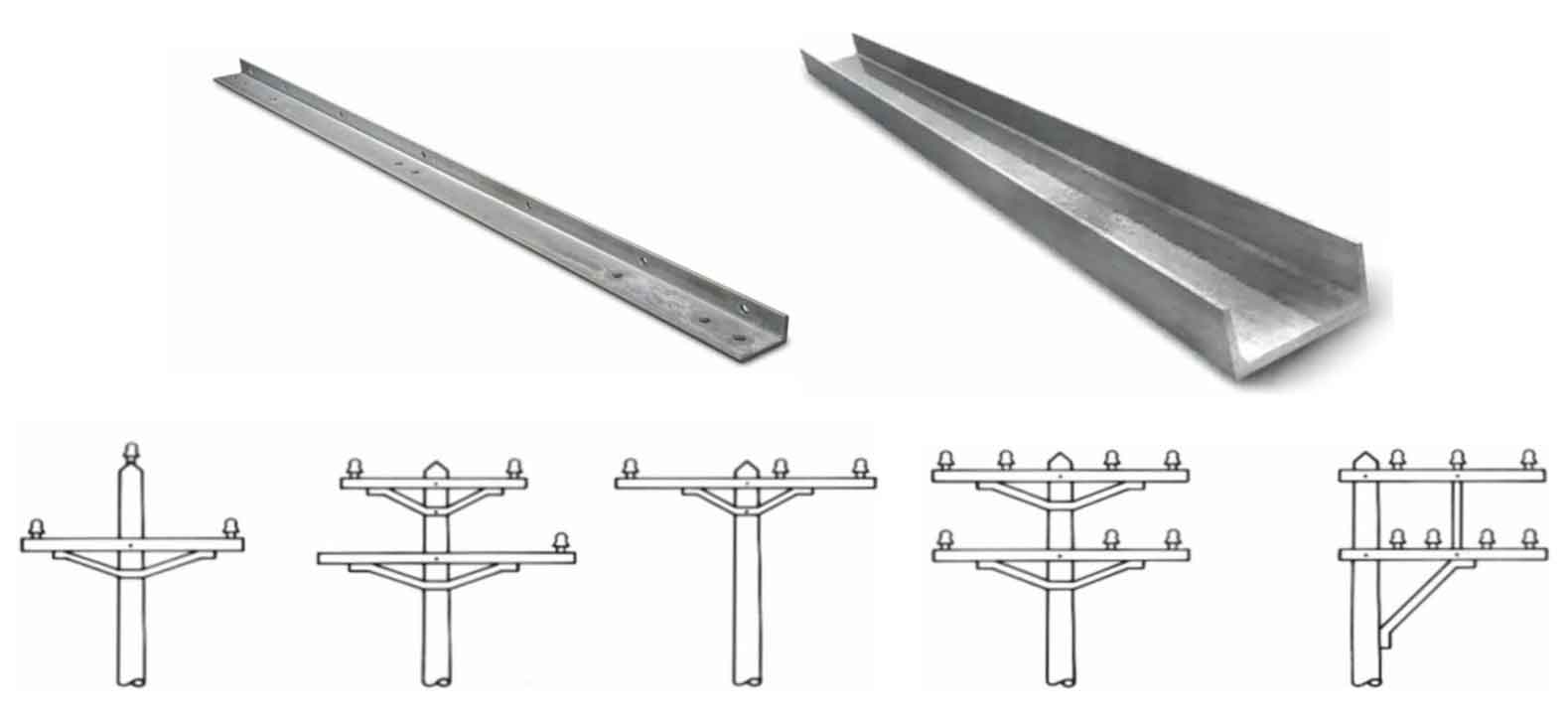

| Type | Width(mm) | High(mm) | Thickness(mm) | Length(mm) |
| Angle | 100 | 63 | 8 | 3000 |
| 90 | 90 | 8 | 3000 | |
| 125 | 80 | 8 | 3000 | |
| 100 | 63 | 8 | 2500 | |
| 100 | 63 | 6 | 2500 | |
| 160 | 100 | 12 | 6000 | |
| 160 | 100 | 12 | 9000 | |
| 125 | 75 | 8 | 2240 | |
| 100 | 50 | 5 | 600 | |
| 50 | 50 | 5 | 1200 | |
| 75 | 75 | 8 | 1200 | |
| 75 | 50 | 8 | 750 | |
| U Channel | 160 | 100 | 8.5 | 3000 |
| 160 | 65 | 8.5 | 3000 | |
| 160 | 100 | 8.5 | 550 | |
| 100 | 50 | 5 | 2240 |
Armements Pour Lignes Rigides

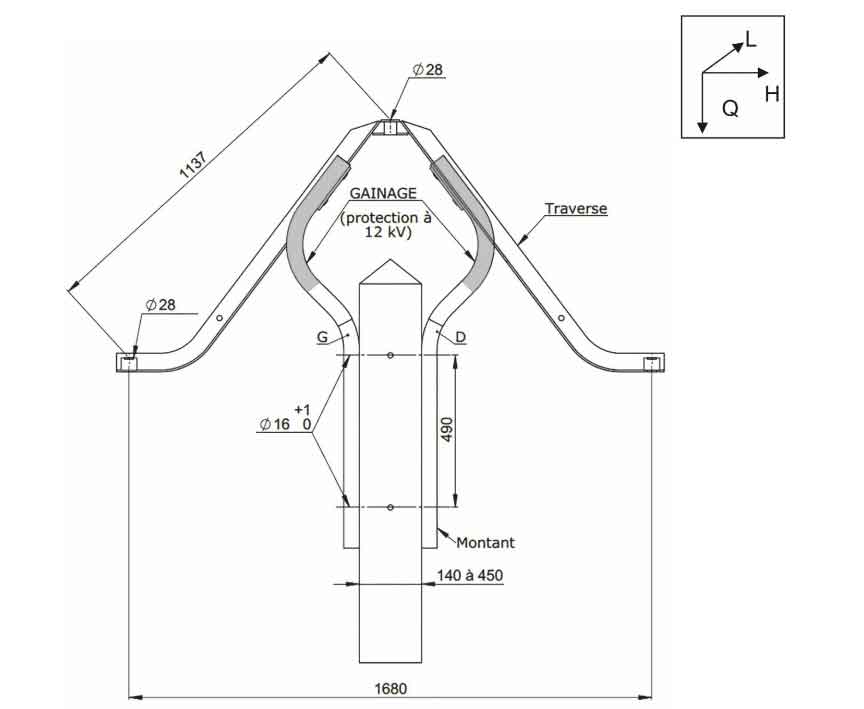

VOUTE RIGIDE VR1 ET VR2
VOUTE RIGIDE GAINEE VR1G ET VR2G
UTILISATION
●Reseau HTA sur isolateurs rigides.
●La forme de ces armements a ete specialement etudiee pour la protection des oiseaux.
| Reference | Codet | Profile en L | Effort nominal * (daN) | Poids (Kg) | |||
| Montant | Traverse | Q | H | L | |||
| VR1 | 68 53 335 | 50 | 60 | 160 | 160 | 40 | 23 |
| VR1G | 68 53 336 | 50 | 60 | 160 | 160 | 40 | 23 |
| VR2 | 68 53 337 | 70 | 80 | 440 | 380 | 100 | 43 |
| VR2G | 68 53 338 | 70 | 80 | 440 | 380 | 100 | 43 |
*Les efforts sont donnes en nominal. Effort en limite elastique: 1,6.
