Products Description
A fastener for connecting two grounding wires together in a grounding system that uses a flat or round wire as the grounding conductor.
The cable grounding clamp is used as a wire current connection with a tightly crimped, smooth overall connection. After crimping, the casing and the wire are completely sealed. Current conduction distribution is uniform, resistance is small, only micro-ohm level, low temperature, high tensile strength, failure rate can be reduced by more than 80%.Adopting stamping technology to manufacture wire clips, easy to install and dismantle, suitable for overhead work. No electromagnetic loss, anti-corrosion and anti-oxidation.
Stable and good line contact performance, no need for maintenance, reduce maintenance costs, reduce energy consumption and save energy.
Made of high quality brass, with brass or alloy screws, bolt fastening or high-pressure clamping fixed, reliable connection, never fall off, generally applicable to the building lightning protection system, the fastening and connection of the conductor network, the use of matching wire clips, can make your lightning protection system installation more convenient, longer service life.

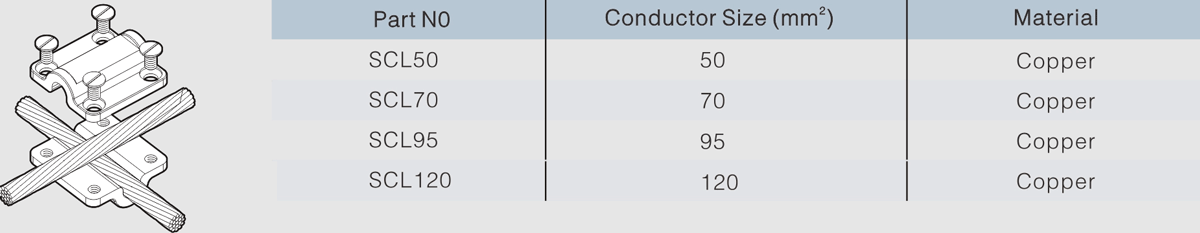

Square Conductor Clamp
A fastener for connecting two grounding wires together in a grounding system that uses a flat or round wire as the grounding conductor.
The cable grounding clamp is used as a wire current connection with a tightly crimped, smooth overall connection. After crimping, the casing and the wire are completely sealed. Current conduction distribution is uniform, resistance is small, only micro-ohm level, low temperature, high tensile strength, failure rate can be reduced by more than 80%.Adopting stamping technology to manufacture wire clips, easy to install and dismantle, suitable for overhead work. No electromagnetic loss, anti-corrosion and anti-oxidation.
Stable and good line contact performance, no need for maintenance, reduce maintenance costs, reduce energy consumption and save energy.
Made of high quality brass, with brass or alloy screws, bolt fastening or high-pressure clamping fixed, reliable connection, never fall off, generally applicable to the building lightning protection system, the fastening and connection of the conductor network, the use of matching wire clips, can make your lightning protection system installation more convenient, longer service life.
Square Conductor Clamp

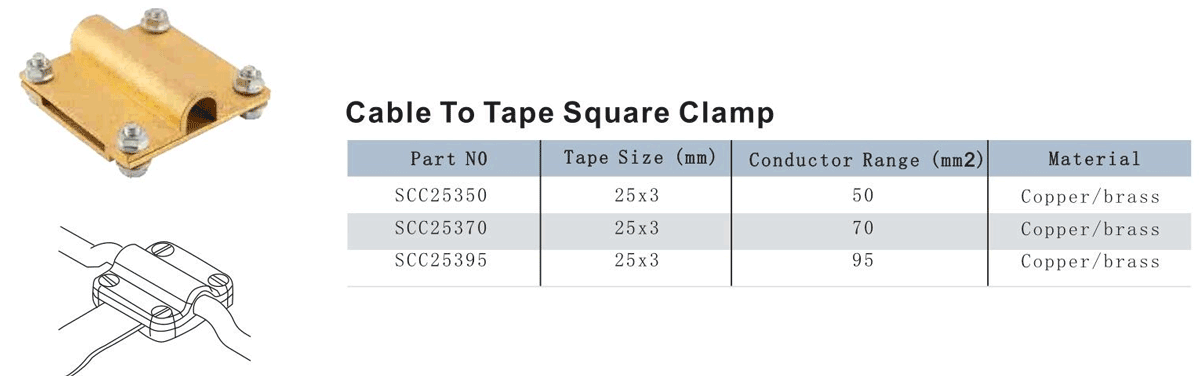

Cable To Tape Square Clamp

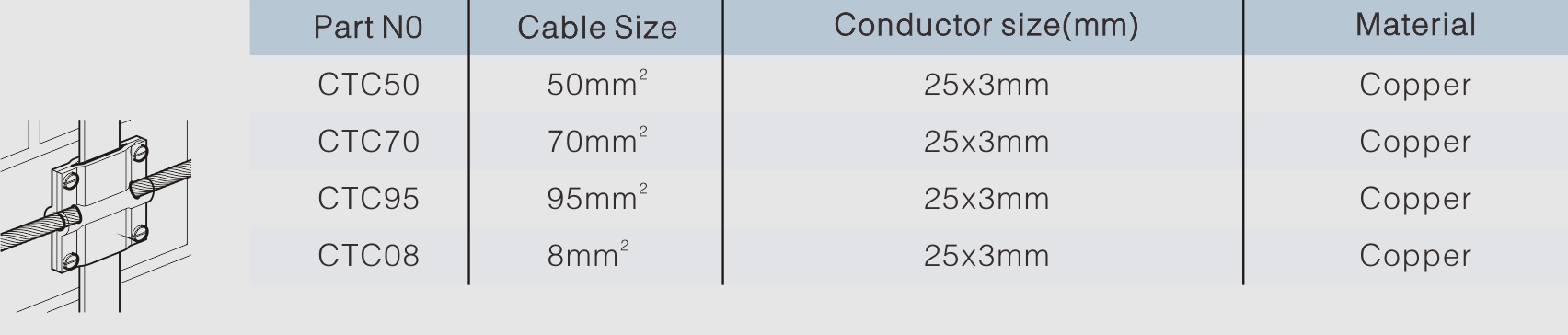

Cable to Tape Connectors
| Cable to Square Joint | |
| Product name | Cable Earthing Clamp |
| Working Voltage | High Voltage |
| Earthing Method | Direct Earthing Method |
| Material | Brass/Copper |
| Certification | ISO9001 |
| Service life | More Than 50 Years |
| Usage | Earthing System |
| Application | High Voltage Transmission Line |
