U Bolt Rod Clamps (Type ‘E’)

U Bolt Rod Clamps (Type ‘E’)

UNI U-Bolt brass cable clamp used to connect the copper rod and the conductor cable. It can well install and easily to use. Providing a secure connection between the down conductor cable and rod.
Adjustable
Type
Brass/ Copper
Material
U Clamp
Structure
Products Description
U Bolt Rod Clamps (Type ‘E’) used to connect the copper rod and the conductor cable. It can well install and easily to use. Providing a secure connection between the down conductor cable and rod.
Material : Gunmetal, Brass

Specification
Material: Brass/Copper
Normal Diameter:  12.7mm/16mm/20mm
Cable Size: 6-35mm2/16-70mm2/70-185mm2
Certificate: CE, ISO9001,RoSH,TUV
Stock available: Yes.Can shipping faster
Samples: Availiable
Standard: IEC standard
Application: Earthing And Lightning Protection System
Available service: OEM,ODM
Service life: ≥30years

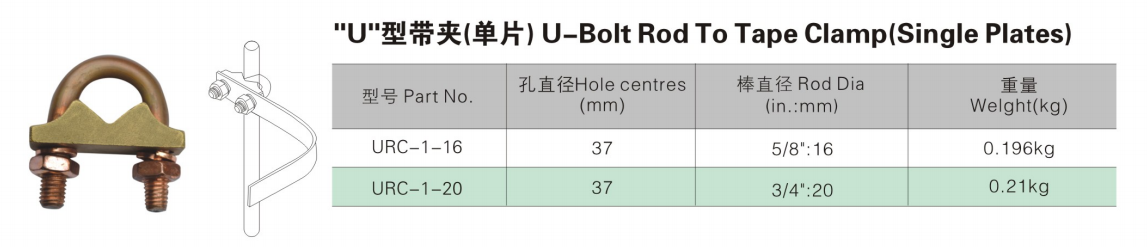

U-Bolt Rod To Tape Clamp(Single Plates)

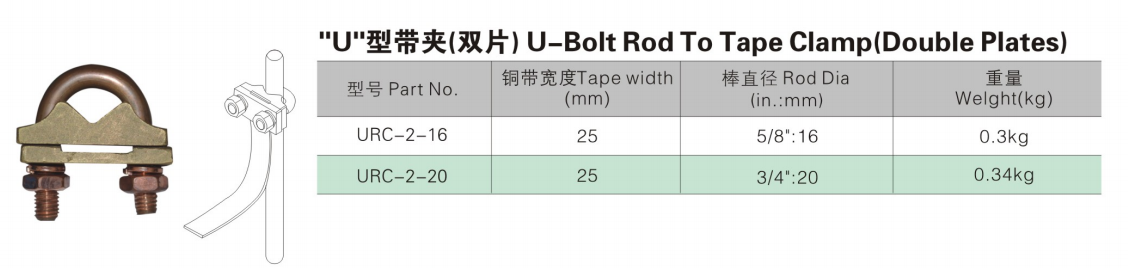

U-Bolt Rod To Tape Clamp(Double Plates)

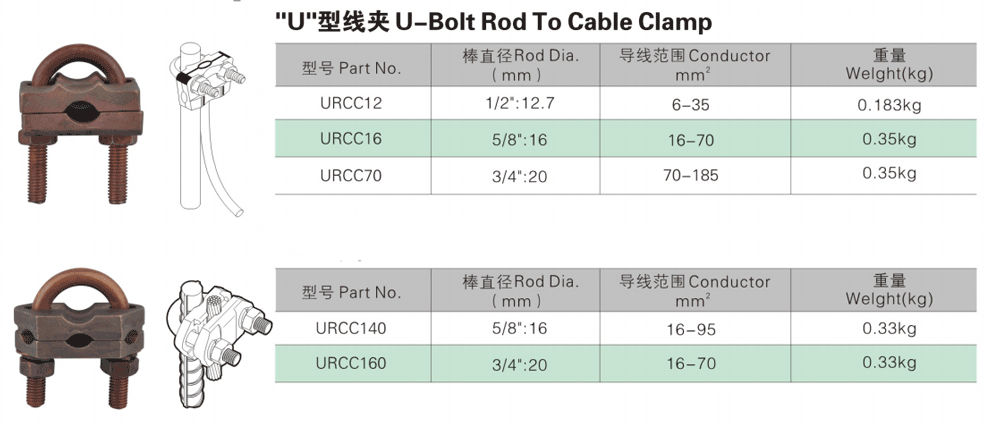

U-Bolt Rod To Cable Clamp

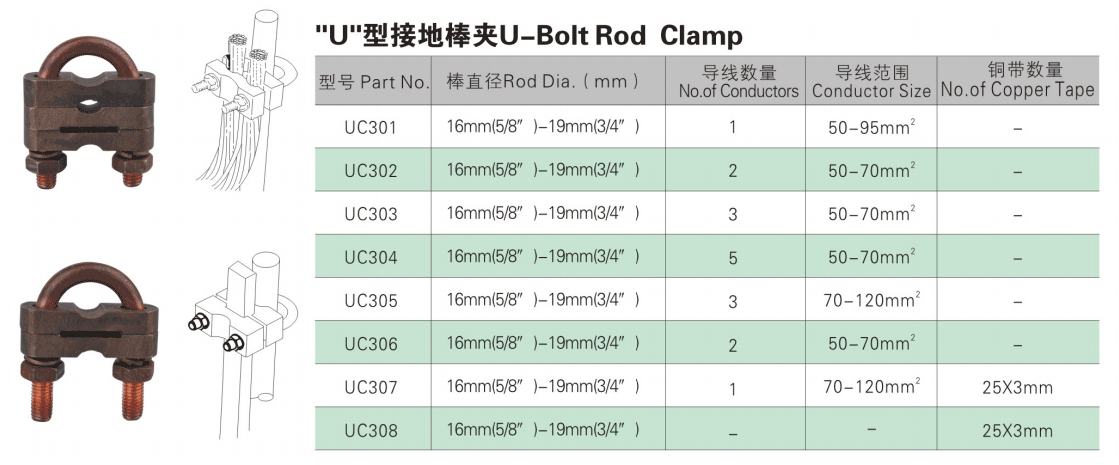

U-Bolt Rod Clamp
