Description

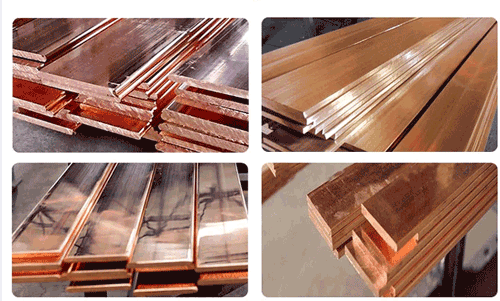

The complete range of earthing copper strip manufactured from high conductivity tinned copper by Qingzhou in an extensive range of widths and thicknesses from 12.5 x 1.5mm (18.75sqmm C.S.A. Cross Section Area) to 50 x 8mm (400sqmm C.S.A.) .
earthing copper strip conductors with fault current ratings according to BS7430 with an initial copper conductor temperature of 30°C and a maximum temperature of 250°C.
Application
earthing copper strip is used for earthing, bonding and protection of LV HV substations and networks.
Packing
Standard Wooden Case
Our Advantage
1. Factory direct sale, discount price, short delivery time
2. We provide one-stop professional packaging solutions
3. Complete quality inspection and certification
4. Help customers realize new profit resources and cost savings
The complete range of earthing copper strip manufactured from high conductivity tinned copper by Qingzhou in an extensive range of widths and thicknesses from 12.5 x 1.5mm (18.75sqmm C.S.A. Cross Section Area) to 50 x 8mm (400sqmm C.S.A.) .
earthing copper strip conductors with fault current ratings according to BS7430 with an initial copper conductor temperature of 30°C and a maximum temperature of 250°C.
Application
earthing copper strip is used for earthing, bonding and protection of LV HV substations and networks.
Packing
Standard Wooden Case
Our Advantage
1. Factory direct sale, discount price, short delivery time
2. We provide one-stop professional packaging solutions
3. Complete quality inspection and certification
4. Help customers realize new profit resources and cost savings
| AN Wallis Part Number | Earth Tape W x H | Copper Cross Sectional Area (CSA) / Thickness | Weight Per Metre | Standard Copper Coil Size |
| TC 121 | 12.5mm x 1.5mm | 18.75sqmm | 0.17kg | 100m |
| TC 123 | 12.5mm x 3mm | 37.50sqmm | 0.33kg | 100m |
| TC 201 | 20mm x 1.5mm | 30sqmm | 0.27kg | 100m |
| TC 203 | 20mm x 3mm | 60sqmm | 0.53kg | 100m |
| TC 251 | 25mm x 1.5mm | 37.5sqmm | 0.33kg | 100m |
| TC 253 | 25mm x 3mm | 75sqmm | 0.67kg | 25m & 50m |
| TC 254 | 25mm x 4mm | 100sqmm | 0.89kg | 50m |
| TC 256 | 25mm x 6mm | 150sqmm | 1.33kg | 40m |
| TC 302 | 30mm x 2mm | 60sqmm | 0.53kg | 50m |
| TC 303 | 30mm x 3mm | 90sqmm | 0.80kg | 50m |
| TC 304 | 30mm x 4mm | 120sqmm | 1.07kg | 40m |
| TC 305 | 30mm x 5mm | 150sqmm | 1.33kg | 40m |
| TC 313 | 31mm x 3mm | 93sqmm | 0.83kg | 50m |
| TC 3154 | 31.5mm x 4mm | 126sqmm | 1.13kg | 40m |
| TC 316 | 31mm x 6mm | 186sqmm | 1.65kg | 30m |
| TC 383 | 38mm x 3mm | 114sqmm | 1.01kg | 50m |
| TC 385 | 38mm x 5mm | 190sqmm | 1.69kg | 30m |
| TC 386 | 38mm x 6mm | 228sqmm | 2.02kg | 25m |
| TC 403 | 40mm x 3mm | 120sqmm | 1.06kg | 40m |
| TC 404 | 40mm x 4mm | 160sqmm | 1.42kg | 30m |
| TC 405 | 40mm x 5mm | 200sqmm | 1.78kg | 25m |
| TC 406 | 40mm x 6mm | 240sqmm | 2.16kg | 25m |
| TC 4063 | 40mm x 6.3mm | 252sqmm | 2.24kg | 25m |
| TC 503 | 50mm x 3mm | 150sqmm | 1.33kg | 40m |
| TC 504 | 50mm x 4mm | 200sqmm | 1.78kg | 30m |
| TC 505 | 50mm x 5mm | 250sqmm | 2.22kg | 20m |
| TC 506 | 50mm x 6mm | 300sqmm | 2.68kg | 10m & 20m |
| TC 5063 | 50mm x 6.3mm | 315sqmm | 2.80kg | 20m |
| TC 508 | 50mm x 8mm | 400sqmm | 3.60kg | 15m |
