Product Description

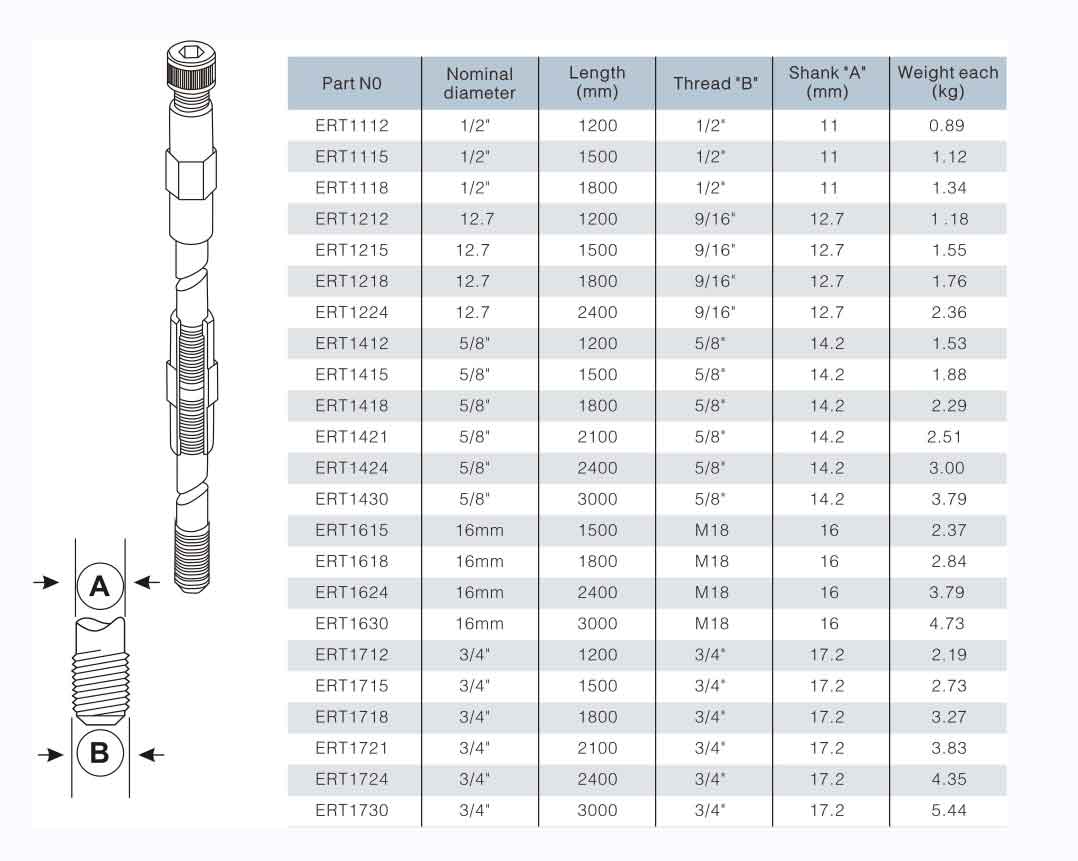

Copper Bonded Earth Rod(Threaded) probably offer to the installer the best and most economical earth rods available. They are made by molecularly bonding 99.9% pure electrolytic copper on to a low carbon steel core.Confusion often arises between thread and shank diameters for threaded rods. The thread rolling process, used by quality rod manufacturers, raises the surface of the rod so that thread diameter (B) is greater than shank diameter (A) (see drawing).
Copper thickness standard 254 microns.(others plating copper thickness as your requested)
Earth rods to BS EN 50164-2, Bs7430 and UL467; Fittings to BS EN 50164-1
PRODUCT PARAMETER
| Material | Copper Clad Steel |
| Copper Thickness | ≥0.254mm |
| Copper Purity | 99.90% |
| Tensile strength | ≥580N/mm² |
| Straightness error | ≤1mm/m |
| Service life | ≥30years |
| Diameter | according to customer's requirement |
| Function | Used in grounding and lightning system |
| Type | Threaded or flat or pointed |
| Accessories | Coupling，Driving head ，Drill |
| Available service mode | OEM,ODM |
| Certificate | ISO9001:2008,CE,SGS,UL |
Product Application
