Overview
The Aerial Bundle Cable Insulation Piercing Connector (IPC) is used to establish a tap connection from low voltage ABC (Aerial Bundled Conductors) to a low voltage aluminium alloy or copper bare main conductor. It is widely used for Low Voltage Aerial Bundled Conductor (LV ABC) lines up to 1KV.

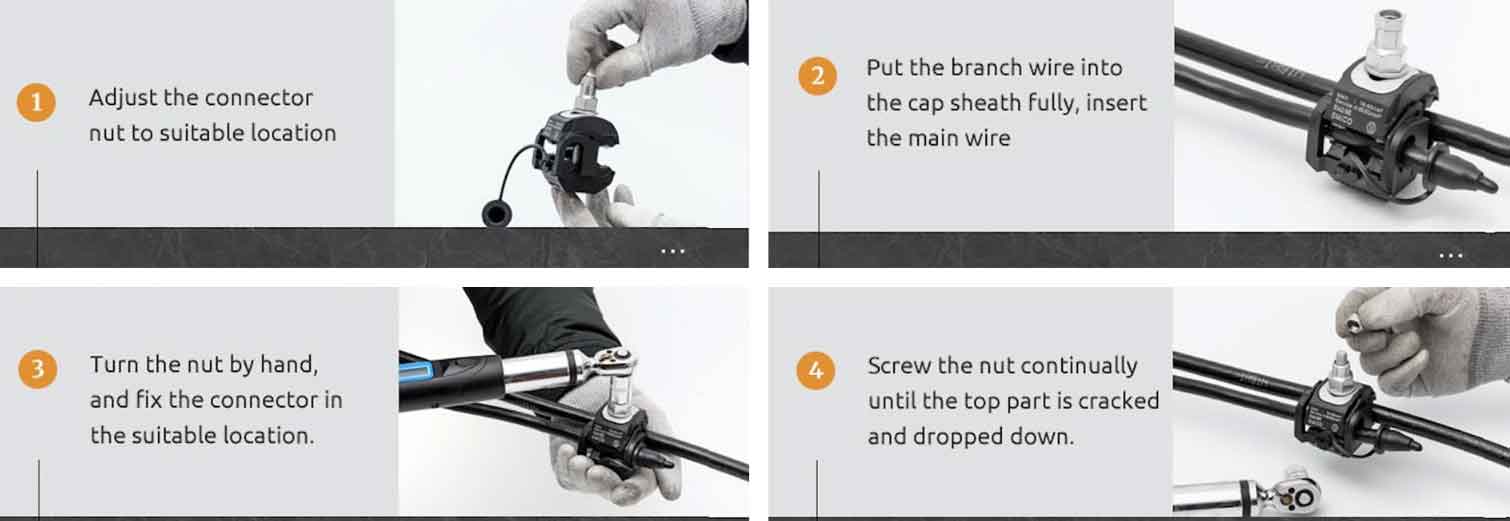

Arc surface design , apply to connection with the same (different) diameter, wide connection scope;The blades of the insulation piercing connectors are made of tin-plated copper or tin-plated brass or aluminium alloy allowing connections to Al or Cu conductors;The shell is made of high-quality insulation and flame retardant material, the shell is hard and not easy to break, corrosion-resistant, aging-resistant, much more durable;A single torque control nut draws the two parts of the connector together and shears off when the teeth have pierced the insulation and made contact with the conductor strands.
Application: Secondary URD Cable. Secondary underground distribution cables are used to run power from a pad mounted transformer to the service entry or meter of a structure. The cables are rated for installation in underground duct or directly buried in earth. They are offered in single conductor, duplex, triplex, and quadruplex.
Parameter
The Aerial Bundle Cable Insulation Piercing Connector (IPC) is used to establish a tap connection from low voltage ABC (Aerial Bundled Conductors) to a low voltage aluminium alloy or copper bare main conductor. It is widely used for Low Voltage Aerial Bundled Conductor (LV ABC) lines up to 1KV.
Arc surface design , apply to connection with the same (different) diameter, wide connection scope;The blades of the insulation piercing connectors are made of tin-plated copper or tin-plated brass or aluminium alloy allowing connections to Al or Cu conductors;The shell is made of high-quality insulation and flame retardant material, the shell is hard and not easy to break, corrosion-resistant, aging-resistant, much more durable;A single torque control nut draws the two parts of the connector together and shears off when the teeth have pierced the insulation and made contact with the conductor strands.
Application: Secondary URD Cable. Secondary underground distribution cables are used to run power from a pad mounted transformer to the service entry or meter of a structure. The cables are rated for installation in underground duct or directly buried in earth. They are offered in single conductor, duplex, triplex, and quadruplex.
Parameter
| Type | Main Line (mm²) | Tap Line (mm²) |
| JBC/PG-1 | 35-70 | 6-35 |
| JBC/PG-2 | 35-120 | 35-120 |
| JBC/PG-3 | 50-240 | 50-240 |
