Product Information:
"A" cable suspension bolts are supplied with two square nuts.One nut is used to fasten the square head bolt to the pole and the other nut is used to secure a straight or angle cablesuspension clamp to the bolt.
Material
Steel hot dip galvanized
5/8”Diameter - Minimum Tensile Strength 13,550
3/4”Diameter - Minimum Tensile Strength 20,050
Brace bolts
Product Information:
Brace bolts are used in place of carriage bolts or machine bolts to fasten braces to crossarms. The integral washer/hex head construction provides a static- proof design.
Material
Steel hot dip galvanized
Minimum Tensile Strength 4,250 Ibs
"A" cable suspension bolts are supplied with two square nuts.One nut is used to fasten the square head bolt to the pole and the other nut is used to secure a straight or angle cablesuspension clamp to the bolt.
Steel hot dip galvanized
5/8”Diameter - Minimum Tensile Strength 13,550
| Catalog number | Bolt Length (in) | Thread Length (in) | Weight /100 (Ibs) |
| LR6645.A01 | 8 | 4 | 85 |
| LR6645.A02 | 10 | 6 | 104 |
| LR6645.A03 | 12 | 6 | 120 |
| LR6645.A04 | 14 | 6 | 138 |
| LR6645.A05 | 16 | 6 | 153 |
| LR6645. A06 | 18 | 6 | 168 |
| LR6645.A07 | 20 | 6 | 183 |
| LR6645.A08 | 22 | 6 | 198 |
| LR6645.A09 | 24 | 6 | 214 |
3/4”Diameter - Minimum Tensile Strength 20,050
| Catalog number | Bolt Length (in) | Thread Length (in) | Weight /100 (Ibs) |
| LR6645 A10 | 10 | 6 | 165 |
| LR6645.A11 | 12 | 6 | 187 |
| LR6645.A12 | 14 | 6 | 204 |
| LR6645.A13 | 16 | 6 | 220 |
| LR6645.A14 | 18 | 6 | 220 |

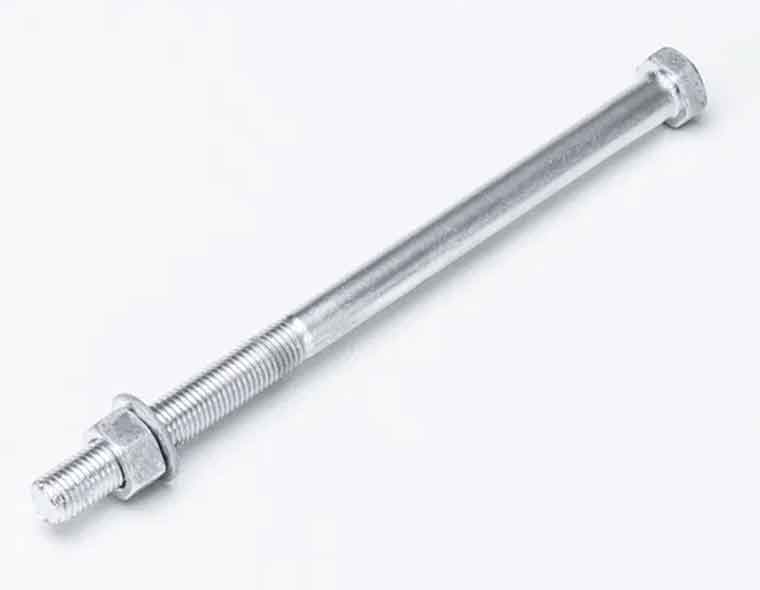

Brace bolts
Product Information:
Brace bolts are used in place of carriage bolts or machine bolts to fasten braces to crossarms. The integral washer/hex head construction provides a static- proof design.
Material
Steel hot dip galvanized
Minimum Tensile Strength 4,250 Ibs
| Catalog number | Size (in) | Thread Length (in) | Weight /100 (Ibs) |
| LR8624- 1/2 | 3/8x41/2 | 2 | 21 |
