YOUR CURRENT POSITION: Home > products > Overhead Line Hardware
Splice Sleeves

Splicing Sleeves

Overview Splicing Sleeve is suitable for linking & repairing aerial insulation conduct in aerial electric power line. Splicing Sleeves for Steel Wire (Hydraulic
SEND EMAIL
Consult now
Overview
Splicing Sleeve is suitable for linking & repairing aerial insulation conduct in aerial electric power line.

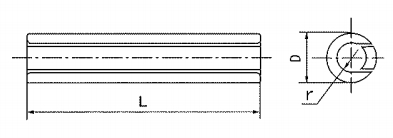

Splicing Sleeves for Steel Wire (Hydraulic Compression Type)
Hot-dip galvanized steel.

Catalog on. Suitable  Steel Wire Dimensions  (mm) Slip Strength(kN) Weight(kg)
D d L
JY-35G GJ-35 16 8.4 220 45 0.3
JY-50G GJ-50 18 9.6 240 60 0.4
JY-70G GJ-70 22 11.7 290 88 0.7
JY-100G GJ-100 26 13.7 320 123 1
JY-150G GJ-150 32 16.5 430 162 2

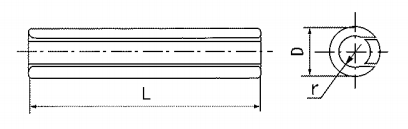

Splicing Sleeves for Steel Wire(Explosive Overlap Joint)
Hot-dip galvanized steel.

Catalog No. Suitable Steel Wire Dimensions  (mm) Slip Strength (kN) Weight(kg)
D d L
JBD-35G GJ-35 22 16 110 45 0.2
JBD-50G GJ-50 25 17 130 60 0.3
JBD-70G GJ-70 28 20 150 88 0.4
JBD-100G GJ-100 32 23 170 123 0.6

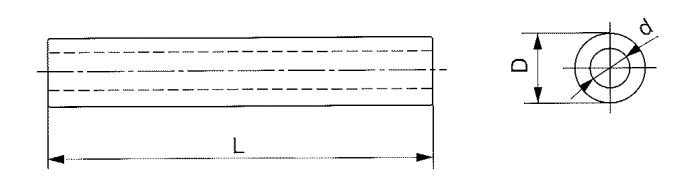

Splicing Sleeves for Aluminium Conductor (Hydraulic Compression Type)
Hot-dip galvanized steel.

Catalog No. Suitable Conductoi Dimensions  (mm) Slip Strength(kN) Weight(Kg)
D   d L
JY-150L LJ-150 30 20 17 280 22 0.4
JY~185L LJ-185 32 20 19 310 27 0.5
JY-210L LJ-210 34 20 20 330 31 0.6
JY-240L LJ-240 36 20 21.5 350 34 0.7
JY-300L LJ-300 40 25 24 390 45 1
JY-400L LJ-400 45 25 27.5 450 58 1.2
JY-500L LJ-500 52 30 30.5 510 73 2
JrY-630L LJ-630 60 35 34.5 570 87 3
JY-800L LJ-800 65 40 38.5 650 110 3.8

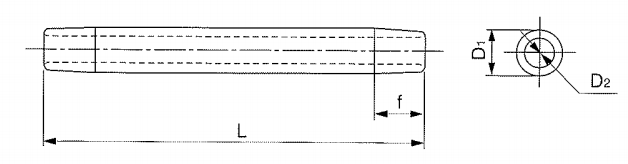

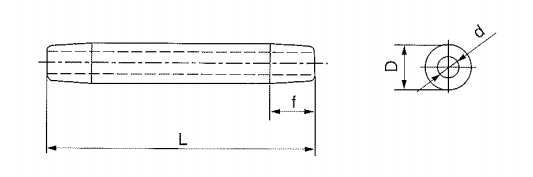

Splicing Sleeves for Insulated Overhead Cable
Material is aluminiun.Note: the insulation material can be supplied.

Catalog No. Suitable Conductor Dimensions (mm) Slip Strength(kN) Weight(Kg)
Di D2 f L
JY-35LY JKLYJ-35 20 7.6 15 130 4.9 0.1
JY-50LY JKLYJ-50 20 9 15 140 6.7 0.1
JY-70LY JKLYJ-70 22 11 15 170 9.8 0.13
JY-95LY JKLYJ-95 24 12.5 15 190 13 0.17
JY-120LY JKLYJ-120 26 14 15 210 16.5 0.22
JY-150LY IKLYJ-150 28 15.5 20 240 20 0.28
IV-185LY JKLYJ-185 32 17 20 260 25.4 0.4
JY-240L,Y JKLYJ-240 36 19.5 20 290 33 0.5

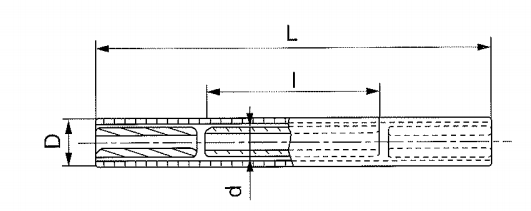

Splicing Sleeves for AS.Stranded Wire(Hydraulic Compression Type)
The inner sleeve is hot-dip galvanized steel, and the outer sleeve and lining sleeves are aluminum.



Catalog No. Suitable Conductor Dimensions_(mm) Slip Strength(kN) Weight(Kg)
D d L l
JY-50BG LB20J-50 32 18 440 240 55.8 1
JY-70BG LB27J-70 32 20 550 320 65.8 1.63
JY-80BG LB20J-80 34 24 550 320 85 2.12
JY-95BG LB40J-95 34 24 550 330 56 1.66
JY-120BG LB27J-120 36 26 640 400 112 2

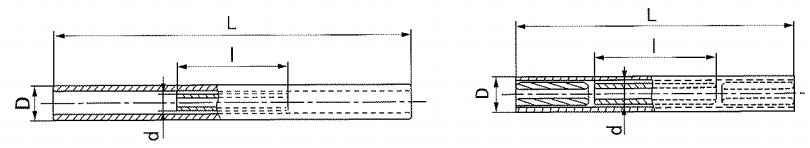

Splicing Sleeves for ACSR/AS(Hydraulic Compression Type)
The inner sleeve is hot-dip galvanized steel, and the outer sleeve and   lining sleeves are aluminum.

Catalog No. Suitable Conductor Fig. Dimensions  (mm) Slip Strength (kN) Weight(Kg)
D d L l
JY-80/47BG ACSR/AS-80/47 2 36 18 480 250 64.6 1.3
JY-95/55BG ACSR/AS-95/55 2 36 20 500 260 74 1.32
JYD-240/40BG ACSR/AS-240/4(   38 22 500 110 81.6 1.18
JYD-300/25BG ACSR/AS-300/25 1 42 20 500 90 74.4 1.35
JYD-300/40BG ACSR/AS-300/40 ] 42 22 530 110 90 1.42
JYD-300/50BG ACSR/AS-300/50 l 42 24 550 130 101 1.5
JYD-400/35BG ACSR/AS-400/35   48 22 560 100 99 2.03
JYD-400/50BG ACSR/AS-400/50 l 48 24 590 130 117 2.07

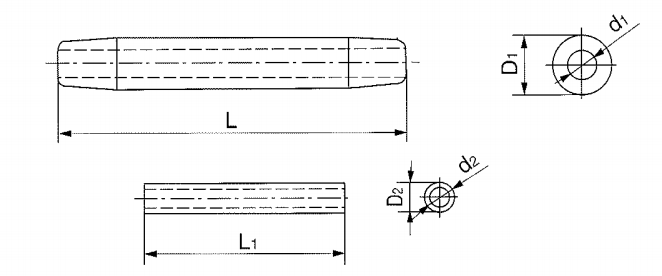

Splicing Sleeves for ACSR Conductor (Explosive Overlap Joint)
The outer sleeve is aluminum, inner sleeve is hot-dip galvanized steel.

Catalog No. Suitable Conductor Dimensions  (mm) Slip Strength(kN) Weight(Kg)
D1 D2 D1 d2 L L1
JYB-300/40 LGJ-300/40 40 22 25.5 17 430 120 87 1.1
JYB-300/50 LGJ-300/50 40 22 26 17 450 140 98 1.1
1VB-300/70 LGJ-300/70 42 24 27 19 510 160 122 1.4
JYB-400/35 LGJ-400/35 45 24 29 19 510 120 99 1.4
JYB-400/50 LGJ-400/50 45 24 29.5 19 510 140 117 1.5
JYB-400/65 IGJ-400/65 48 26 29.5 21 520 160 128 1.8
JYB-400/95 LGJ-400/95 48 28 31 22 550 170 163 1.9
JYB-500/65 LGJ-500/65 52 24 32.5 19 560 160 146 2.2


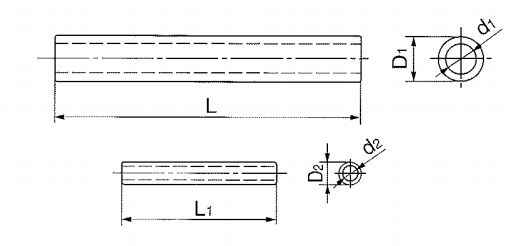

Splicing Sleeves for Shielding Wire (Hydraulic Compression Type)
The outer sleeve is aluminum, inner sleeve is hot-dip galvanized steel.

Catalog No. Suitable Conductor Dimensions (mm) Slip Strength (kN) Weight(Kg)
D1 D2 d1 d2 L L1
JY-70/40 LGJ-70/40 32 16 21 8.8 450 215 55 1.03
JY-95/55 LGJ-95/55 34 22 23 10.2 480 280 74 1.13
JYD-95/55 LGJ-95/55 34 24 17.5 16 370 110 74 0.82
JY-95/140 LGJ-95/140 45 30 32 16 685 415 163 3.2

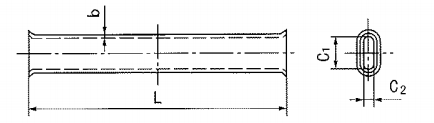

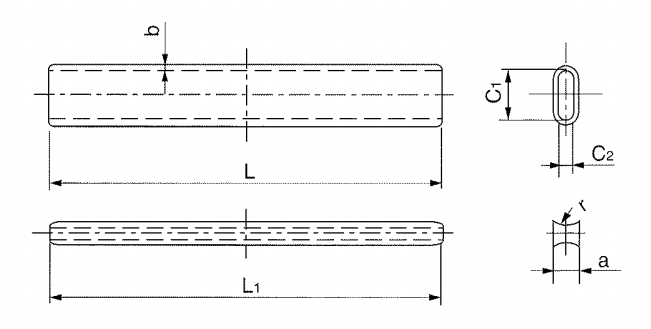

Splicing Sleeves for Aluminium Conductor (Compression With Pliers)

Catalog No. Suitabl Conductor Dimensions (mm) Slip Strenglh (kN) Weight(Kg)
b Cl C2 L
JT-16L LJ-16 1.7 12 6 110 2.7 0.02
JT-25L LJ-25 1.7 14.4 7.2 120 4.1 0.03
}JT-35L LJ-35 1.7 17 8.5 140 5.5 0.04
JT-50L LJ-95 1.7 20 10 190 7.5 0.05
JT-70L LJ-70 1.7 23.7 11.7 210 10 0.07
JT-95L JJ-95 1.7 26.8 13.4 280 14 0.1
JT-120L LJ-120 2 30 15 300 18 0.15
JT-150L LJ-150 2 34 17 320 22 0.16
JT-185L LJ-800 2 38 19 340 27 0.2

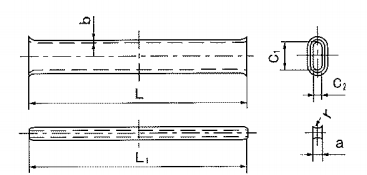

Splicing Sleeves for ACSR Conductor (Compression With Pliers)



Catalog No. Suitable Conductor Dimensions(mm) Slip Strength (kN) Weight (Kg)
à b C Câ‚‚ I L L
JT-10/2 LGJ-10/2 4 1.7 11 5 ** · 170 180 3.9 0.05
JT-16/3 LGJ-16/3 5 1.7 14 6   210 220 5.8 0.07
JT-25/4 LGJ-25/4 6.5 1.7 16.6 7.8   270 280 8.8 0.08
JT-35/6 LGJ-35/6 8 2.1 18.6 8.8 12 340 350 12 0.17
JT-50/8 LGJ-50/8 9.5 2.3 22 10.5 13 420 430 16 0.23
JT-70/10 LGJ-70/10 11.5 2.6 26 12.5 14 500 510 22 0.34
JT-95/15 LGJ-95/15 14 2.6 31 15 15 690 700 33 0.52
JT-95/20 LGJ-95/20 14 2.6 31.5 15.2 15 690 700 35 0.55
JT-120/7 LGJ-120/7 5 3.1 33 16 15 910 920 26 0.6
JT-120/20 LGJ-120/20 15.5 3.1 35 17 15 910 920 39,0 0.91
JT-150/8 LGJ-150/8 16 3.1 36 17.5 17.5 940 950 31 1.05
JT-150/20 LGJ-150/20 17 3.1 37 18 17.5 940 950 44 1.1
JT-150/25 LGJ-150/25 17.5 3.1 39 19 17.5 940 950 51 1.15
JT-185/10 LGJ-185/10 18 3.4 40 19.5 18.5 1040 1060 39 1.4
JT-185/25 LGJ-185/25 19.5 3.4 43 21 18 1040 1060 56 1.42
JT-185/30 LGJ-185/30 19.5 3.4 43 21 18 1040 1060 61 1.5
JT-210/10 LGJ-210/10 20 3.6 43 21 19.5 1070 1090 43 1.52
JT-210/25 LGJ-210/25 20 3.6 44 21.5 19.5 1070 1090 63 1.58
JT-210/35 LGJ-210/35 20.5   45 22 19.5 1070 1090 71 1.62
JT-240/30 LGJ-240/30 22 3.9 48 23.5 20 540 550 72 1
JT-240/40 LG3-240/40 22 3.9 48 23.5 20 540 550 79 1

Splicing Sleeves for ACSR Conductor (Explosive Compression Joint)

Catalog No. Suitable Conductor Dimensions (mm) Slip Strength (kN) Weight (Kg)
a b CI C2 I L Li
JTB-35/6 LGJ-35/6 8 2.1 18.6 8.8 12 170 180 12 0.08
JTB-50/8 LGJ-50/8 9.5 2.3 22 10.5 13 210 220 16 0.13
  LGJ-70/10 11.5 2.6 26 12.5 14 250 260 22 0.19
JTB-95/15 LGJ-95/15 14 2.6 31 15 15 260 270 33 0.25
JTB-95/20 LGJ-95/20 14 2.6 31.5 15.2 15 260 270 35 0.25
JTB-120/7 LGJ-120/7 15 3.1 33 16 15 300 310 26 0.34
JTIB-120/20 LGJ-120/20 15.5 3.1 35 17 15 300 310 39 0.34
JTB+150/8 LGJ-150/8 16 3.1 36 17.5 17.5 310 320 31 0.4
JTB-150/20 LGJ-150/20 17 3.1 37 18 17.5 310 320 44 0.4
JTB-150/25 LGJ-150/25 17.5 3.1 39 19 17.5 310 320 51 0.4
JTB-185/10 LGJ-185/10 18 3.4 40 19.5 18 350 360 39 0.5
11B-185/25 LGJ-185/25 19.5 3.4 43 21 18 350 360 56 0.5
JTB-185/30 LGJ-185/30 19.5 3.4 43 21 18 350 360 61 0.5
JTB-210/10 LGJ-210/10 20 3.6 43 21 19.5 360 370 43 0.57
JTB-210/25 LGJ-210/25 20 3.6 44 21.5 19.5 360 370 63 0.63
JTB-210/35 LGJ-210/35 20.5 3.6 45 22 19.5 360 370 71 0.67
JTB-240/30 LGJ-240/30 22 3.9 48 23.5 20 400 410 72 0.8
JTB-240/40 LGJ-240/40 22 3.9 48 23.5 20 460 470 79 0.84
Splicing sleeves for ACSR Conductor (Hydraulic Overlap Joint)
The outer sleeve is aluminum, inner sleeve is hot-dip galvanized steel.



Catalog No. Suitable Conductor Dimensions   (mm) Slip Strength (kN) Weight (Kg)
D1 D2 L Li di d2
JYD-240/30 LGJ-240/30 36 20 440 80 23 12 72 0.86
JYD-240/40 LGJ-240/40 36 20 440 80 23 13 79 0.86
JYD-240/55 LGJ-240/55 36 22 460 100 24 16 97 0.88
JYD-300/15 LGJ-300/15 40 18 470 50 24.5 8.4 65 1.1
JYD-300/20 LGJ-300/20 40 18 480 60 25 9.8 72 1.15
JYD-300/25 LGJ-300/25 40 20 480 70 25.5 11.2 79 1.15
JYD-300/40 LGJ-300/40 40 20 480 80 25.5 13.3 88 1.2
JYD-300/50 LGJ-300/50 40 22 490 100 26 15 98 1.2
JYD-300/70 LGJ-300/70 42 24 510 110 27 18 122 1.37
JYD-400/20 LGJ-400/20 45 18 550 60 28.5 9.8 84 1.52
JYD-400/25 LGJ-400/25 45 20 550 70 28.5 11.2 91 1.55
JYD-400/35 LGJ-400/35 45 22 540 80 28.5 13 99 1.56
JYD-400/50 LGJ-400/50 45 24 550 100 29.5 15.4 117 1.61
JYD-400/65 LGJ-400/65 48 26 560 110 29.5 17.2 129 1.96
JYD-500/35 LGJ-500/35 52 22 610 80 31.5 13 114 2.36
JYD-500/45 LGJ-500/45 52 24 610 90 31.5 14 122 2.41
JYD-500/65 LGJ-500/65 52 26 610 110 32.5 17.2 146 2.5
JYD-630/45 LGJ-630/45 60 24 680 90 35.5 14 141 3.71
JYD-630/55 LGJ-630/55 60 26 680 100 36 16 156 3.8
JYD-800/55 LGJ-800/55 65 26 760 100 40 16 182 4.5
JYD-800/70 LGJ-800/70 65 26 760 110 40.5 18 197 4.45

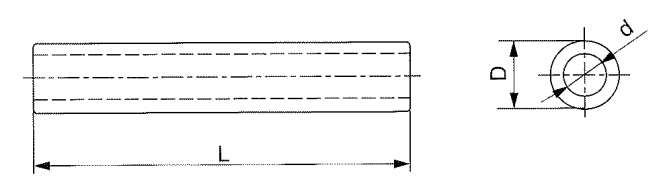

Repair  Sleeves  for  ACSR  Conductor

Catalog No. Suitabl Conductor Dimensions (mm) Weight(Kg)
D L I
JX-95/55 LGJ-95/55 32 150 9 0.25
JX-185/10 LGJ-185/10 32 150 10 0.2
JX-185 LG3-185/25185/30185/45210/10 32 150 10.5 0.2
JX-210 LGJ-210/25210/35 34 200 11 0.29
JX-240 LGJ-240/30240/40210/50 36 200 12 0.33
JX-240/55 LGJ-240/55 40 250 12.5 0.31
JX-300/15 LGJ-300/15 40 250 13 0.52
JX-300 LGJ-300/20300/25300/40300/50 42 250 13.5 0.51
JX-300/70 LGJ-300/70 45 300 14.5 0.55
JX-400 LGJ-400/20400/25400/35 45 320 14.5 0.75
JX-400/50 LGJ-400/50 48 300 15 0.9
JX-400/65 LGJ-400/65 48 320 15.5 0.9
JX-400/95 LGJ-400/95 52 320 16 0.85
JX-500 LGJ-500/35500/45500/65 60 370 18 1.07
JX-630 LGJ-630/45  630/55  630/80 60 370 18 1.7
JX-800/55 LGJ-800/55 65 370 20 19
IX-800 LGJ-800/70800/100 65 350 20.5 19
 Repair  Sleeves  for  Steel  Wire
Catalog No. Suitabl Conductor Dimensions  (mm) Weight(Kg)
D L !
JX-35G GJ-35 16 120 4.2 0.11
JX-50G GJ-50 18 120 4.8 0.14
JX-70G GJ-70 22 140 5.8 0.25
JX-80G GJ-80 24 140 6.2 0.4
JX-100G GJ-100 26 140 7 0.41
JX-150G GJ-150 32 200 8.4 0.9
