Suspension Clamp For Double Conductors

Suspension Clamp For Double Conductors

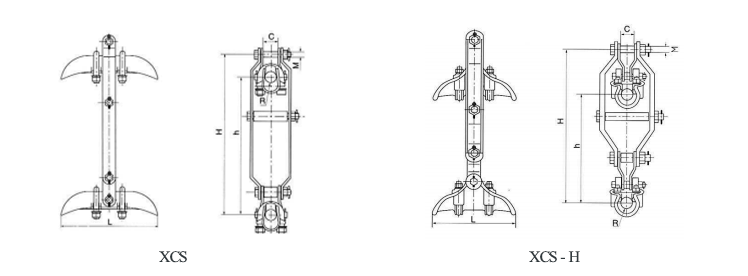

Parameter XCS Suspension Clamp For Double Conductors Catalog Conductor Dia. Dimensions(mm) Rated Failure Load Weight No. (mm) h L

Parameter

XCS Suspension Clamp For Double Conductors
Catalog Conductor Dia. Dimensions(mm) Rated Failure Load Weight
No. (mm) h L R C H M (kN) (kg)
XCS-4 21~26 400 250 13.5 20 490 18 70 9.3
XCS-5 23~33 400 300 17.0 38 490 18 100 10.8
XCS-6 34~45 400 300 23.0 38 490 18 100 12.5
The clamp body and keepers arc mallcable iron, cotter-pins are stainless steel, the other parts are steel. All ferrous parts arehot-dip galvanized.
Aluminium Alloy Suspension Clamps for Double Conductors
Catalog Conductor Dia. Dimensions(mm) Rated Failure Load Weight
No. (mm) h L R c H M (kN) (kg)
XCS-4H 21.0~ 26.0 400 300 13.5 500 42 16 70 10.2
XCS-5H 26.0~31.5 400 300 16 510 44 18 100 11.4
XCS-6H 32.0~ 43.0 400 300 22 515 50 22 120 12.9
Cotter-pins are stainless steel, fasteners are hot-dip galvanind steel, the other parts are aluminium alloy.
