Overview

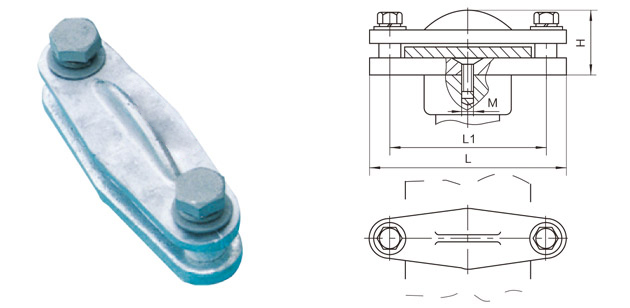

Indoor supports for single pieces bar (horizontal setting)

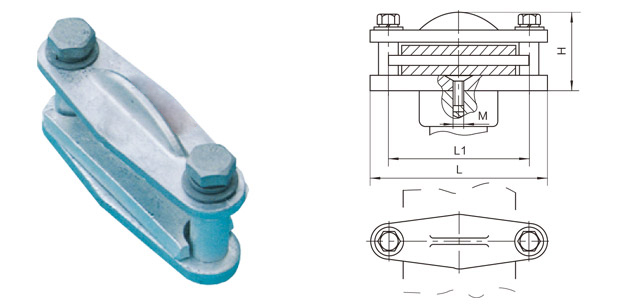

Indoor supports for two pieces bar (horizontal setting)

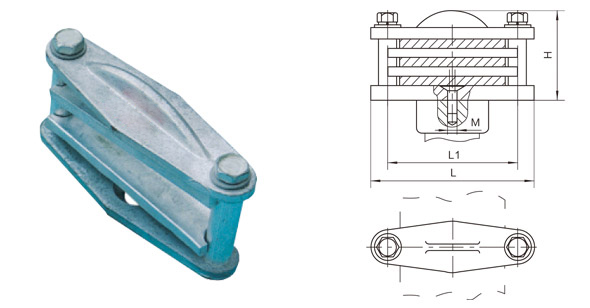

Indoor supports for tHree pieces bar (horizontal setting)
Indoor supports for single pieces bar (horizontal setting)
| Catalog No. | Bus width(mm) | Main Dimensions(mm) | WeigHt | |||
| H | L | L1 | M | (kg) | ||
| MNP-100 | 40 | 35 | 90 | 60 | 10 | 0.3 |
| MNP-101 | 63 | 38 | 113 | 83 | 10 | 0.4 |
| MNP-102 | 80 | 42 | 130 | 100 | 10 | 0.5 |
| MNP-103 | 100 | 46 | 150 | 120 | 10 | 0.6 |
| MNP-104 | 125 | 48 | 175 | 145 | 10 | 0.6 |
| MNP-105 | 63 | 38 | 113 | 83 | 16 | 0.4 |
| MNP-106 | 80 | 42 | 130 | 100 | 16 | 0.5 |
| MNP-107 | 100 | 46 | 150 | 120 | 16 | 0.6 |
| MNP-108 | 125 | 48 | 175 | 145 | 16 | 0.6 |
| Catalog No. | Bus width (mm) | Main Dimensions(mm) | WeigHt | |||
| H | L | L1 | M | (kg) | ||
| MNP-201 | 63 | 58 | 113 | 83 | 10 | 0.7 |
| MNP-202 | 80 | 62 | 130 | 100 | 10 | 0.8 |
| MNP-203 | 100 | 66 | 150 | 120 | 10 | 1 |
| MNP-204 | 125 | 68 | 175 | 145 | 10 | 1 |
| MNP-205 | 63 | 58 | 113 | 83 | 16 | 0.7 |
| MNP-206 | 80 | 62 | 130 | 100 | 16 | 0.8 |
| MNP-207 | 100 | 66 | 150 | 120 | 16 | 1 |
| MNP-208 | 125 | 68 | 175 | 145 | 16 | 1 |
| Catalog No. | Bus width(mm) | Main Dimensions(mm) | WeigHt(kg) | |||
| H | L | L1 | M | |||
| MNP-301 | 63 | 78 | 113 | 83 | 10 | 0.9 |
| MNP-302 | 80 | 82 | 130 | 100 | 10 | 0.9 |
| MNP-303 | 100 | 86 | 150 | 120 | 10 | 1.2 |
| MNP-304 | 125 | 88 | 175 | 145 | 10 | 1.3 |
| MNP-305 | 63 | 78 | 113 | 83 | 16 | 0.8 |
| MNP-306 | 80 | 82 | 130 | 100 | 16 | 0.9 |
| MNP-307 | 100 | 86 | 150 | 120 | 16 | 1.1 |
| MNP-308 | 125 | 88 | 175 | 145 | 16 | 1.2 |
