Overview
Terminal connectors are fittings that connect wires and electrical equipment to transmit electrical loads and bear certain mechanical loads.
Compressed aluminum terminal connectors are constructed by hydraulic or explosive pressure, with good electrical contact performance, and are suitable for permanent connections.
Two manufacturing processes are adopted for compressed aluminum terminal connectors: terminal connectors with a section of 400mm and below can be pressed with aluminum tubes; Terminal connectors with a cross section of 500mm2 and above shall be welded with aluminum tube or cast.
Parameter
Terminal connectors are fittings that connect wires and electrical equipment to transmit electrical loads and bear certain mechanical loads.
Compressed aluminum terminal connectors are constructed by hydraulic or explosive pressure, with good electrical contact performance, and are suitable for permanent connections.
Two manufacturing processes are adopted for compressed aluminum terminal connectors: terminal connectors with a section of 400mm and below can be pressed with aluminum tubes; Terminal connectors with a cross section of 500mm2 and above shall be welded with aluminum tube or cast.

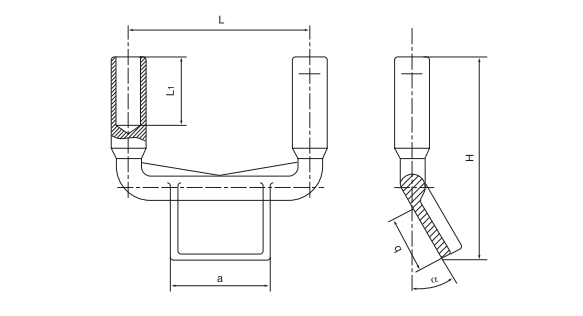

| Catalog | Suitable | Dimensions(mm) | Weight | |||||
| No. | Conductor | L1 | α | a | b | H | L | (kg) |
| SSY-300/120A | LGJ-300 | 110 | 0° | 100 | 110 | 296 | 120 | 1.7 |
| SSY-300/120B | LGJ-300 | 110 | 30° | 100 | 110 | 288 | 120 | 1.8 |
| SSY-300/200A | LGJ-300 | 160 | 0° | 100 | 120 | 293 | 200 | 1.6 |
| SSY-300/200B1 | LGJ-300 | 160 | 45° | 100 | 100 | 258 | 200 | 1.6 |
| SSY-300/200c | LGJ-300 | 160 | 90° | 100 | 120 | 185 | 200 | 1.6 |
| SSY-400/120A-1 | LGJ-400 | 120 | 0° | 120 | 130 | 325 | 120 | 1.4 |
| SSY-400/200A | LGJ-400 | 160 | 0° | 120 | 130 | 315 | 200 | 2.6 |
| SSY-400/200B1 | LGJ-400 | 160 | 45° | 120 | 130 | 275 | 200 | 2.1 |
| SSY-400/200C | LGJ-400 | 160 | 90° | 120 | 135 | 195 | 200 | 2.1 |
| SSY-500/35 | LGJ-500/35 | 160 | 0° | 110 | 110 | 356 | 400 | 2.3 |
| SSY-500/45 | LGJ-500/45 | 160 | 0° | 110 | 110 | 356 | 400 | 2.3 |
| SSY-500/55 | LGJ-500/55 | 160 | 0° | 110 | 110 | 356 | 400 | 2.3 |
| SSY-630/45 | LGJ-630/45 | 160 | 0° | 115 | 115 | 376 | 400 | 3 |
| SSY-630/55 | LGJ-630/55 | 160 | 0° | 115 | 115 | 376 | 400 | 3 |
| SSY-630/80 | LGJ-630/80 | 160 | 0° | 115 | 115 | 376 | 400 | 3 |
| SSY-800/55 | LGJ-800/55 | 160 | 0° | 125 | 125 | 401 | 400 | 3.4 |
| SSY-800/70 | LGJ-800/70 | 160 | 0° | 125 | 125 | 401 | 400 | 3.4 |
| SSY-800/100 | LGJ-800/100 | 160 | 0° | 125 | 125 | 401 | 400 | 3.4 |
| SSY-1144N/400-100 | NAHLGJQ-1144 | 150 | 0° | 100 | 170 | 329 | 400 | 4.5 |
| SSY-1144N/400-134 | NAHLGJQ-1144 | 150 | 0° | 134 | 125 | 284 | 400 | 4.5 |
