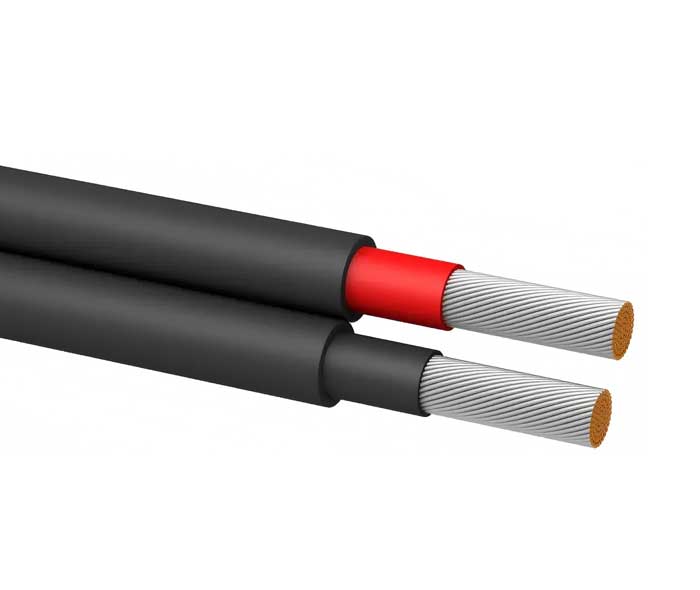

Qingzhou PV cable is a highly flexible wire specially engineered for photovoltaic panel connections. It is compatible with all mainstream solar connectors and carries multiple international certifications, including TUV, UL, IEC, CE, and RETIE. The cable fully complies with UL4703, IEC62930, and EN50618 standards, ensuring reliable performance for global PV applications.
Designed as a versatile single-core photovoltaic cable, it is widely used in solar farms, rooftop PV systems, and floating power plants. With excellent resistance to high temperatures, humidity, and salt corrosion, it performs reliably in harsh outdoor environments such as rooftops, deserts, lakes, coastal areas, and mountainous regions.
As a critical component of any solar power system, high-quality PV cabling ensures long-term, stable, and safe operation. Superior connection performance helps reduce system failure rates and lowers maintenance and operational costs over the lifetime of the photovoltaic installation.
 |
Conductor | Class 5 (flexible) tinned copper, based on EN 60228 and IEC 60228 |
| Insulation & Sheath Jacket | Polyolefin Copolymer electron-beam cross-linked | |
| Rated voltage | 1000/1800VDC,Uo/U=600V/1000VAC | |
| Test voltage | 6500V,50Hz,10Min | |
| Temperature Rating | -40oC-120oC | |
| Fire Performance | Flame non-propagation based on UNE-EN 60332-1 and IEC 60332-1 | |
| Smoke Emission | Based on UNE-EN 60754-2 and IEC 60754-2. | |
| European CPR | Cca/Dca/Eca, according to EN 50575 | |
| Water performance | AD7 | |
| Minimum bend radius | 5D (D:cable diameter) | |
| Optional features | Meter by meter marking, rodent-proof and termite-proof | |
| Certification | TUV/UL/RETIE/IEC/CE/RoHS |
Dimensions Of Solar Cable，The size from 1.5mm2 to 120mm2.
| Construction | Conductor Construction | Conductor | Outer | Resistance Max | Current Carring Capacity |
| n×mm2 | n×mm | mm | mm | Ω/Km | A |
| (16AWG)1×1.5 | 30×0.25 | 1.58 | 4.90 | 13.3 | 30 |
| (14AWG)1×2.5 | 50×0.256 | 2.06 | 5.45 | 7.98 | 41 |
| (12AWG)1×4.0 | 56×0.3 | 2.58 | 6.15 | 4.75 | 55 |
| (10AWG)1×6 | 84×0.3 | 3.15 | 7.15 | 3.39 | 70 |
| (8AWG)1×10 | 142×0.3 | 4.0 | 9.05 | 1.95 | 98 |
| (6AWG)1×16 | 228×0.3 | 5.7 | 10.2 | 1.24 | 132 |
| (4AWG)1×25 | 361×0.3 | 6.8 | 12.0 | 0.795 | 176 |
| (2AWG)1×35 | 494×0.3 | 8.8 | 13.8 | 0.565 | 218 |
| (1/0AWG)1×50 | 418×0.39 | 10.0 | 16.0 | 0.393 | 280 |
| (2/0AWG)1×70 | 589×0.39 | 11.8 | 18.4 | 0.277 | 350 |
| (3/0AWG)1×95 | 798×0.39 | 13.8 | 21.3 | 0.210 | 410 |
| (4/0AWG)1×120 | 1007×0.39 | 15.6 | 21.6 | 0.164 | 480 |
