Products Description

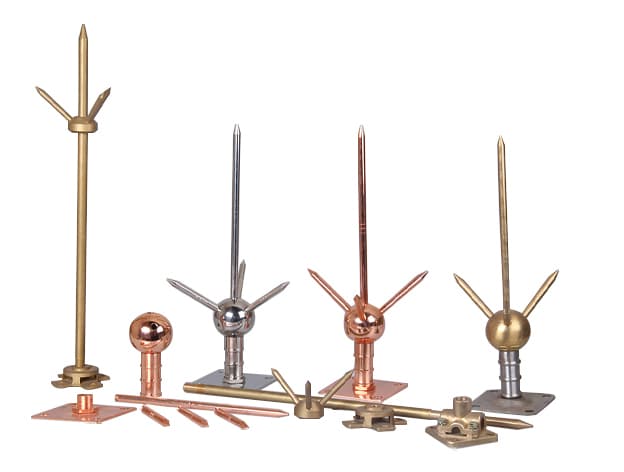

Lightning arrester,alternate named lightning protection devices,used for protecting the building when raining and lightning .The lightning rod installed on the building and transfer the electric to earthing metal to protect the building . Our SLE lightning rod comply with GB standard . Customized lightning rod available .
Product Parameter
Product Size
Lightning arrester,alternate named lightning protection devices,used for protecting the building when raining and lightning .The lightning rod installed on the building and transfer the electric to earthing metal to protect the building . Our SLE lightning rod comply with GB standard . Customized lightning rod available .
| Material | Copper or Brass or Copper Clad Steel or Stainless Steel |
| Size | according to customer's requirement |
| Life | More than 50 Years |
| Characters | Easy installation,long life |
| Description | Size | Material |
| Lightning rod | Dia7mmxL250mm | copper clad steel or stainless steel |
| Three point needle | Dia7mmxL9mm | |
| Ball | Dia18mm | |
| Holder | Dia85mmxH60mm | |
| Base | 100mmx100mmx2mm | |
| Total Height | 370mm |
| Rod Length | Rod diameter | Thread | Material |
| 500mm | 15mm | M16 | Brass,copper |
| 1000mm | 15mm | M16 | Brass,copper |
| 1500mm | 15mm | M16 | Brass ,copper |
| Avaible Dia:8mm-25mm; Length:300mm-2000mm | |||
| Base | Conductor size | Rod diamter | Material |
| 1 | 50-95mm² wire | 15mm | Brass |
| 2 | 25mmx3mm copper tape | 15mm | Brass |
| Three Point Needle | Nos | Rod | Material |
| 1 | 3 | 15mm | Brass,copper |
