Products Description

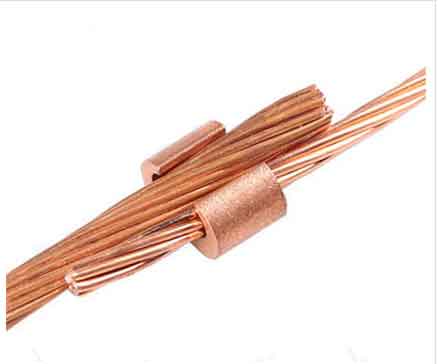

Earthing Copper C Clamp is used for lightning protection of building,conductor of the fastening and connection of the net work,Use the matched fittings will make the lightning system easy to install and extend the using life.
Earthing Copper C Clamp is used for lightning protection of building,conductor of the fastening and connection of the net work,Use the matched fittings will make the lightning system easy to install and extend the using life.

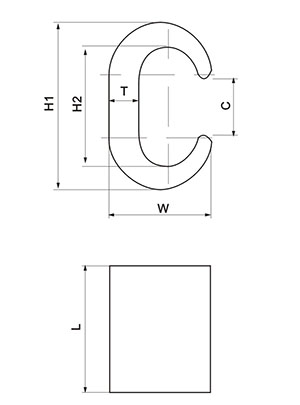

| Type | Suitable Section of Conductors(mm2) | Dimensions(mm) | |||||
| H1 | H2 | W | L | T | C | ||
| CCT-10 | 7.5-11 | 9.5 | 6.3 | 6.2 | 12 | 1.6 | 4 |
| CCT-16 | 11.5-16 | 11.8 | 7.8 | 7.3 | 13 | 2 | 5 |
| CCT-20 | 14-20 | 12.8 | 8.6 | 9.7 | 13 | 2.9 | 5.4 |
| CCT-26 | 21-26 | 14.7 | 10.2 | 10.9 | 16 | 3.2 | 6.5 |
| CCT-44 | 27-44 | 19 | 12.4 | 14.4 | 20 | 4 | 8.5 |
| CCT-60 | 45-60 | 21 | 15.4 | 15.1 | 22 | 4 | 9.7 |
| CCT-76 | 61-76 | 24.4 | 17.3 | 17.6 | 22 | 5 | 10.8 |
| CCT-98 | 77-98 | 27.8 | 20.8 | 18.1 | 25 | 5 | 12.8 |
| CCT-122 | 99-122 | 29.8 | 22.1 | 21.2 | 26 | 5.5 | 13.5 |
| CCT-154 | 123-154 | 34 | 25.7 | 24.2 | 28 | 6 | 17 |
| CCT-190 | 155-190 | 37 | 28.5 | 25.4 | 35 | 6 | 17.4 |
| CCT-240 | 191-240 | 40 | 30.2 | 28.5 | 40 | 7 | 19 |
| CCT-288 | 241-288 | 44.5 | 34.7 | 31.1 | 45 | 7 | 22.3 |
| CCT-365 | 289-365 | 47.5 | 37.7 | 34 | 50 | 7 | 24.8 |
| CCT-450 | 366-450 | 57 | 42.5 | 41 | 60 | 10 | 28 |
| CCT-560 | 451-560 | 62 | 46 | 45 | 65 | 11 | 31 |
| CCT-700 | 561-700 | 68 | 52 | 49.5 | 70 | 12 | 34 |
