PRODUCT APPLICATION
Copper Lug/Copper Connecting Terminals is also known as "wire nose" commonly used in cable end connection and renewal, can make the cable and electrical connection more solid, more secure. It is a commonly used material in construction, electric equipment, electrical connection and so on.
Copper Lug/Copper Connecting Terminals is a wire and cable connected to the electrical equipment on the connector, can play a role in the installation of a solid, direct and effective prevention of short circuits, poor contact and so on, to avoid unnecessary economic losses.
Widely used in household appliances, electrical industry, machinery and equipment factories, shipyards, distribution cabinets and distribution boxes.
PRODUCT PARAMETER
Copper Lug/Copper Connecting Terminals is also known as "wire nose" commonly used in cable end connection and renewal, can make the cable and electrical connection more solid, more secure. It is a commonly used material in construction, electric equipment, electrical connection and so on.
Copper Lug/Copper Connecting Terminals is a wire and cable connected to the electrical equipment on the connector, can play a role in the installation of a solid, direct and effective prevention of short circuits, poor contact and so on, to avoid unnecessary economic losses.
Widely used in household appliances, electrical industry, machinery and equipment factories, shipyards, distribution cabinets and distribution boxes.
| Material | Copper or tinned copper or aluminium |
| Size | According to customer's requirement |
| Life | More than 50 years |
| Characters | Easy installation |

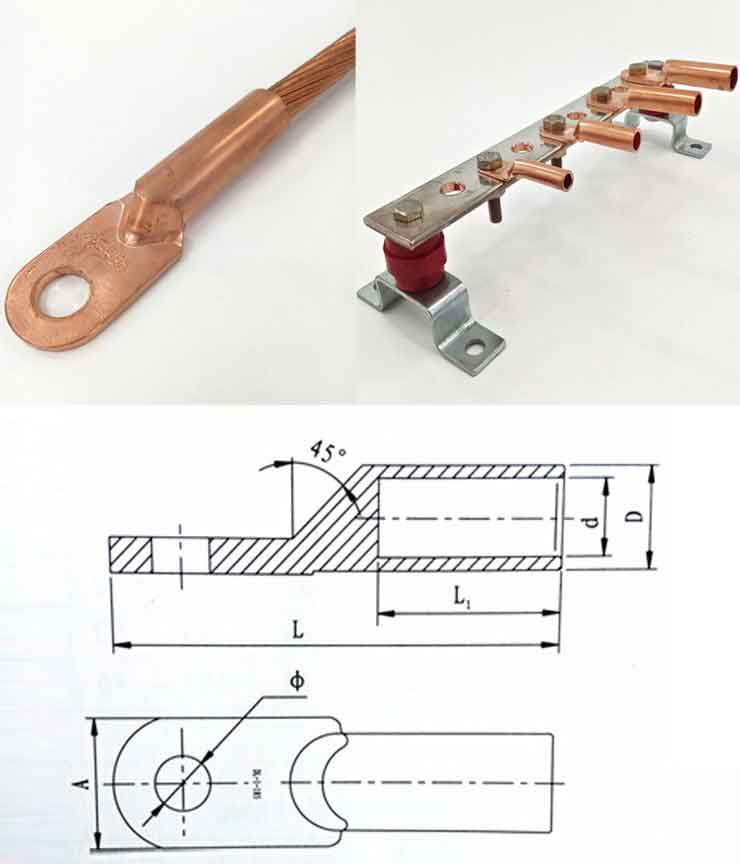

| Type | Φ | D | d | L | L1 | B |
| DT-10 | 8.5 | 9 | 5.3 | 62 | 28 | 16 |
| DT-16 | 8.5 | 10 | 6.5 | 68 | 30 | 16 |
| DT-25 | 8.5 | 11 | 7 | 70 | 33 | 18 |
| DT-35 | 10.5 | 12 | 8.5 | 80 | 36 | 20.5 |
| DT-50 | 10.5 | 14 | 9.5 | 85 | 38 | 23 |
| DT-70 | 12.5 | 16 | 11.5 | 95 | 43 | 26 |
| DT-95 | 12.5 | 18 | 13.5 | 104 | 46 | 28 |
| DT-120 | 14.5 | 20 | 15 | 112 | 49 | 30 |
| DT-150 | 14.5 | 22 | 16.5 | 120 | 51 | 34 |
| DT-185 | 16.5 | 25 | 18.5 | 125 | 55 | 37 |
| DT-240 | 16.5 | 27 | 21 | 136 | 60 | 40 |
| DT-300 | 21 | 31 | 23.5 | 155 | 66 | 50 |
| DT-400 | 21 | 34 | 26.5 | 170 | 75 | 50 |
| DT-500 | 21 | 38 | 29 | 190 | 75 | 60 |
| DT-630 | 21 | 45 | 35 | 220 | 85 | 80 |
| DT-800 | 21 | 50 | 38 | 260 | 85 | 100 |
