PRODUCT DESCRIPTION

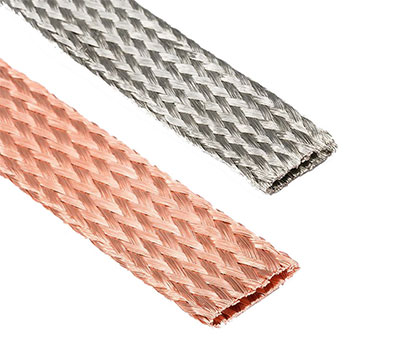

Tinned Copper Wire Braid used for the flexible conductor of electric installation,switch gear,electric frunace,storage battery,etc.

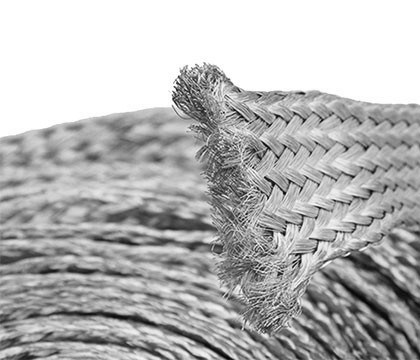

Tinned Copper Wire Braid is made by braiding a number of spindles (13,16,24,36,40,48,64,96) of best quality round copper wires (0.10,0.12,0.15,0.19,0.20,0.25) or soft tinned wires (0.10,0.12,0.15,0.19,0.20) to become single layer of multilayer type.
If you have any other special specifications, please provide drawings or samples, our company can customize the products according to your request.
PRODUCT APPLICATION
Tinned Copper Wire Braid is used for earthing system of power plant, transformer station,tower, communication station ,airport, railway, subway station, high building, computer room, petro plant , oil reservoir in the environmental of moist,saline and alkaline,acid and chemical corrosion medium environmental.
PRODUCT INSTALLATION
PRODUCT SIZE
Above is the common size, we also can do according to your requests. Please contact us to learn more about our products and services.
Tinned Copper Wire Braid used for the flexible conductor of electric installation,switch gear,electric frunace,storage battery,etc.
Tinned Copper Wire Braid is made by braiding a number of spindles (13,16,24,36,40,48,64,96) of best quality round copper wires (0.10,0.12,0.15,0.19,0.20,0.25) or soft tinned wires (0.10,0.12,0.15,0.19,0.20) to become single layer of multilayer type.
If you have any other special specifications, please provide drawings or samples, our company can customize the products according to your request.
PRODUCT APPLICATION
Tinned Copper Wire Braid is used for earthing system of power plant, transformer station,tower, communication station ,airport, railway, subway station, high building, computer room, petro plant , oil reservoir in the environmental of moist,saline and alkaline,acid and chemical corrosion medium environmental.
PRODUCT INSTALLATION
| Material | Pure copper or tinned copper |
| Size | Custom Made |
| Life | More than 50 Years |
| Characters | Easy installation ,Good conductivity |
| Customized | OEM or ODM mode service |
| Certification | ISO9001 |
| Product specifications | Area (mm²) | Size(mm) | Max. width（mm） | Max thickness（mm） | Weight（kg/km） |
| TZ(X)-15/10 | 10.6 | 40×15×1/0.15 | 15 | 2 | 106 |
| TZ(X)-15/10 | 10.18 | 48×12×1/0.15 | 16 | 1.5 | 102 |
| TZ(X)-15/12 | 12.72 | 48×15×1/0.15 | 18 | 1.8 | 128 |
| TZ(X)-15/16 | 16.96 | 48×20×1/0.15 | 22 | 2 | 170 |
| TZ(X)-15/20 | 21.2 | 48×25×1/0.15 | 25 | 2 | 212.5 |
| TZ(X)-15/25 | 25.45 | 48×30×1/0.15 | 28 | 3 | 254 |
| TZ(X)-15/25 | 25.45 | 48×15×2/0.15 | 20 | 3.5 | 254 |
| TZ(X)-15/35 | 33.93 | 64×30×1/0.15 | 40 | 2.2 | 340 |
| TZ(X)-15/35 | 33.93 | 48×20×2/0.15 | 26 | 3.2 | 340 |
| TZ(X)-15/50 | 50.87 | 64×45×1/0.15 | 50 | 3 | 510 |
| TZ(X)-15/50 | 50.87 | 48×30×2/0.15 | 30 | 3.2 | 510 |
| TZ(X)-15/50 | 50.89 | 48×20×3/0.15 | 28 | 4.8 | 510 |
| TZ(X)-15/75 | 76.34 | 80×54×1/0.15 | 32 | 3.5 | 765 |
| TZ(X)-15/75 | 76.34 | 48×30×3/0.15 | 36 | 5 | 765 |
| TZ(X)-15/95 | 95 | 48×28×4/0.15 | 35 | 6 | 950 |
| TZ(X)-15/100 | 100.09 | 96×59×1/0.15 | 80 | 4 | 1000 |
| TZ(X)-15/120 | 127.23 | 48×30×5/0.15 | 42 | 7 | 1271.8 |
