Outdoor Rectangular Bus Fixed Fittings

Outdoor Rectangular Bus Fixed Fittings

Overview The body is aluminum alloy,the other parts are hot-dip galvanized steel. Catalog No. Bus width(mm) Main Dimensions(mm) WeigHt H L
Overview

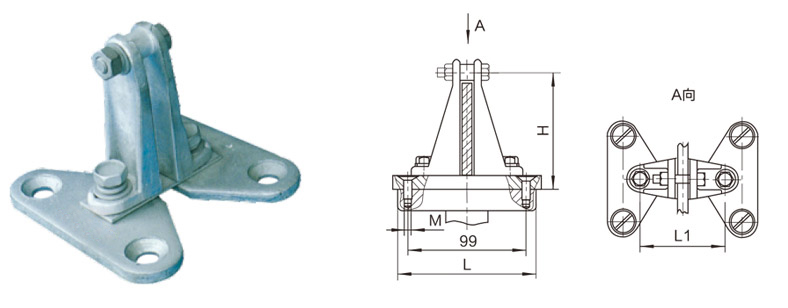

The body is aluminum alloy,the other parts are hot-dip galvanized steel.
Catalog No. Bus width(mm) Main Dimensions(mm) WeigHt
H L L1 M (kg)
MWL-101 63 82 140 60 12 2.1
MWL-102 80 100 140 60 12 2.2
MWL-103 100 120 140 60 12 2.3
MWL-104 125 145 140 60 12 2.3

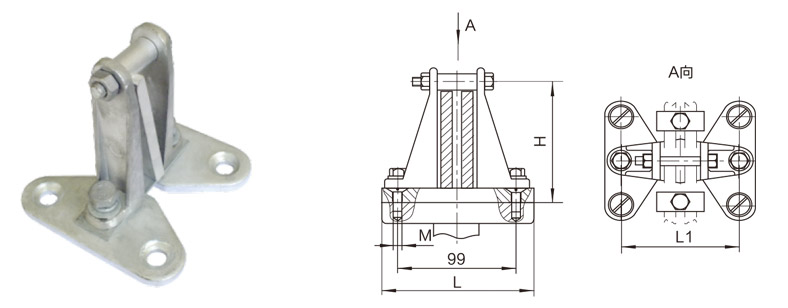

The body is aluminum alloy,the spacer is aluminium,the other parts are hot-dip galvanized steel.
Catalog No. Bus width(mm) Main Dimensions(mm) WeigHt
H L L1 M (kg)
MWL-201 63 82 140 80 12 2.2
MWL-202 80 100 140 80 12 2.3
MWL-203 100 120 140 80 12 2.3
MWL-204 125 145 140 80 12 2.4

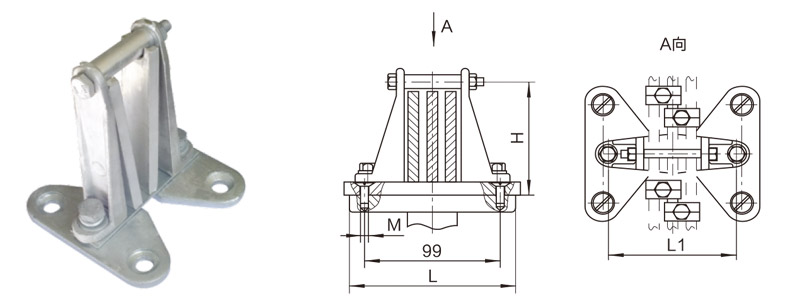

The body is aluminum alloy,the spacer is aluminium,the other parts are hot-dip galvanized steel.
Catalog No. Bus width(mm) Main Dimensions(mm) WeigHt
H L L1 M (kg)
MWL-301 63 82 140 100 12 2.2
MWL-302 80 100 140 100 12 2.3
MWL-303 100 120 140 100 12 2.3
MWL-304 125 145 140 100 12 2.4
