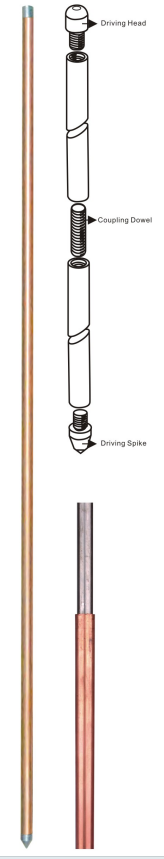

Product Description
Copper Claded Non-Magnetic Stainless Steel Ground Rods are made from 99. 9 % pure electrolytic copper tube and non magnetic steel
This product claded copper thickness more than 1.5mm,so the conductive good performance,low resistance, and can be comparable to pure copper ground rod.
Driving Head
Driving Heads are made from hardened and tempered steel.It is used protect the internal thread and the top of the earth electrode when being driven into the ground.
Coupling Dowel
Coupling dowels for stainless steel earth rods are made from stainless steel or brass, It used to join either the solid copper and stainless steelrods.
Driving Spike
Driving spikes are made from case hardened steel it is used to enable the earth Electrode to be driven into the ground more easily and stops the earth electrode from Being damaged.
Copper Claded Non-Magnetic Stainless Steel Ground Rods are made from 99. 9 % pure electrolytic copper tube and non magnetic steel
This product claded copper thickness more than 1.5mm,so the conductive good performance,low resistance, and can be comparable to pure copper ground rod.
| Part No. | Rod Dia | Length | Copper tube thickness |
| CCR-1212 | 12.5mm | 1200mm | ≥1.5mm |
| CCR-1312 | 13mm | 1200mm | |
| CCR-1412 | 14mm | 1200mm | |
| CCR-1415 | 14mm | 1500mm | |
| CCR-1615 | 16mm | 1500mm | |
| CCR-1715 | 17.2mm | 1500mm |
Driving Heads are made from hardened and tempered steel.It is used protect the internal thread and the top of the earth electrode when being driven into the ground.
| Part No | Length(mm) | Thread Dia(mm) | Material |
| DH16 | 38 | 10 | Hardened steel |
| DH20 | 41 | 10 |
Coupling dowels for stainless steel earth rods are made from stainless steel or brass, It used to join either the solid copper and stainless steelrods.
| Part No | Length(mm) | Thread Dia (mm) | Material |
| CD16 | 10 | Stainless Steel | |
| CD20 | 10 | ||
| 0 |
Driving spikes are made from case hardened steel it is used to enable the earth Electrode to be driven into the ground more easily and stops the earth electrode from Being damaged.
| Part No | Length(mm) | Thread Dia (mm) | Material |
| DS16 | 0 | 10 | Stainless Steel |
| DS20 | 12 |
