Overview
The body and keeper are made of aluminium alloy, other parts are made of hot-dip galvanized steel.
Parameter

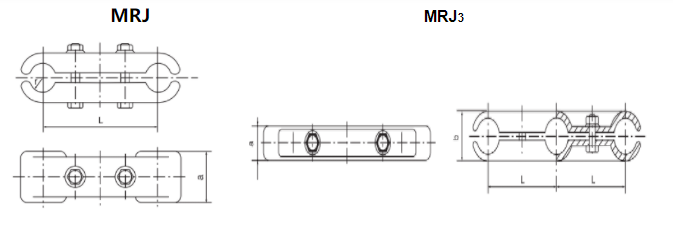

MRJ
MRJ3
The body and keeper are made of aluminium alloy, other parts are made of hot-dip galvanized steel.
Parameter
MRJ
| Catalog | Suitable Conductor | Dimensions(mm) | Weight | ||
| No. | a | L | r | (kg) | |
| MRJ-4/120 | 19.02~21.28 | 5o | 120 | 11 | 0.4 |
| MRJ-5/120 | 23.70~27.36 | 60 | 120 | 14 | 0.6 |
| MRJ-6/120 | 30.16~33.20 | 70 | 120 | 17 | 0.7 |
| MRJ-4/200 | 19.02~21.28 | 50 | 200 | 11 | 0.9 |
| MRJ-5/200 | 23.70~27.36 | 60 | 200 | 14 | 1 |
| MRJ-6/200 | 30.16~33.20 | 70 | 200 | 17 | 1.2 |
| MRJ-4/400 | 19.02~21.28 | 50 | 400 | 11 | 2.1 |
| MRJ-5/400 | 23.70~27.36 | 60 | 400 | 14 | 2.5 |
| MRJ-6/400 | 30.16~33.20 | 70 | 400 | 17 | 2.8 |
| Catalog | Suitable | Dimensions(mm) | Weight | ||
| No. | Conductor | a | b | L | (kg) |
| MRJ3-240/200 | LGJ-240 | 50 | 44 | 200 | 1.5 |
| MSJ-10/24 (MRJ3-600K/120) | LGKK-600 | 50 | 68 | 120 | 2.7 |
| MSJ-10/24 (MRJ3-600K/200) | 200 | 2.7 | |||
| MSJ-10/24 (MRJ3-1400/120) | LGJQT-1400 | 50 | 68 | 120 | 2.2 |
| MSJ-10/24 (MRJ3-1400/200) | 200 | 2.7 | |||
| MRJ3-1440N-200 | NAHLGJQ-1440 | 60 | 70 | 200 | 2.7 |
