Product Description
Copper Bonded Earth Rod (Un-Thread) probably offer to the installer the best and most economical earth rods available . They are made by molecularly bonding 99.9% pure electrolytic copper on to a low carbon steel core.
Copper thickness standard 250 microns.(others plating copper thickness as your requested)
Earth rods to BS EN 50164-2, Bs7430 and Ul467 ,Fittings to BS EN 50164-1
Note:
1. Coupler can be provided separately on request.
2. Different lengths can be provided on request.
| Material | Copper Clad Steel |
| Copper Thickness | ≥0.254mm |
| Copper Purity | 99.90% |
| Tensile strength | ≥580N/mm² |
| Straightness error | ≤1mm/m |
| Service life | ≥30years |

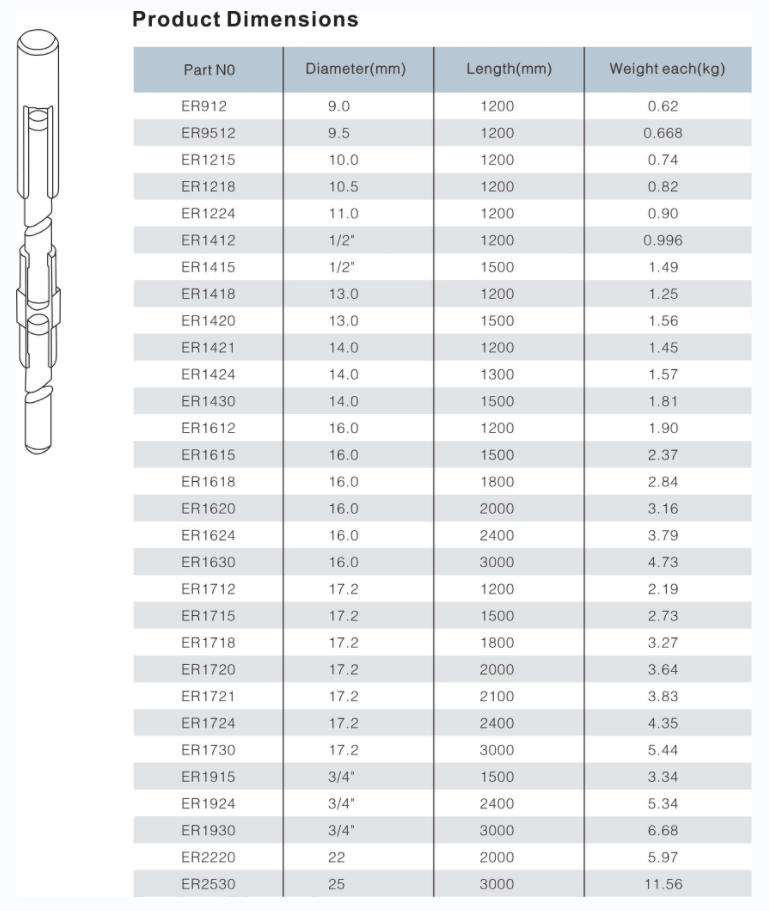

| Diameter | according to customer's requirement |
| Function | Used in grounding and lightning system |
| Type | Threaded or flat or pointed |
| Available service mode | OEM,ODM |
| Certificate | ISO9001:2008,CE,SGS,UL |
PRODUCT APPLICATION
copper-bonded ground rods is used for earthing system of power plant, transformer station, tower, communication station, airport, railway, subway station , high building, computer room, petro plant, oil reservoir in the environmental of moist , saline and alkaline, acid and chemical corrosion medium environmental.PRODUCT INSTALLATION
The installation of copper coated carbon electrode is very flexible, both hammer and electric pick are ok .In the bad soil condition ,please drill and then install .1.When installing the rod deeply with hammer , please fit the drilling head to protect copper layer and connect multi grounding rod with coupler ;
2.When installing the rod deeply in rock or other hard soil area with drilling tool ,please refer to below two choice:
1).Before installing rod ,please drill hole and then fill bentonite and water full to reduce electric resistance
2)Fill bentonite and water after installing the rods to reduce electric resistance
