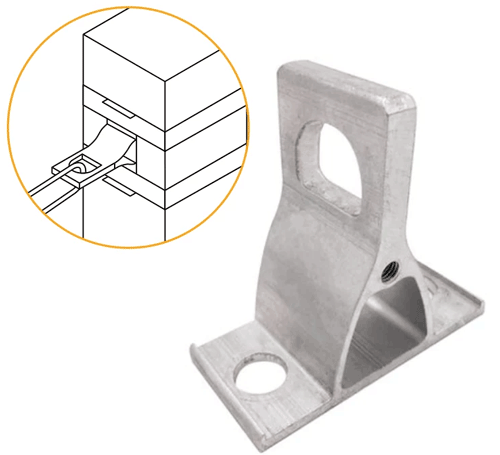

Anchoring bracket ABC cables

Anchoring bracket ABC cables with neutral messenger on poles

Overview These elements are made of high strenght aluminium alloy. The fixing clamp is designed for single anchoring whereas the bracket offers up to 6 fixing p
Overview
These elements are made of high strenght aluminium alloy.
The fixing clamp is designed for single anchoring whereas the bracket offers up to 6 fixing points.
Their specific design allows fixing on wooden, metal or concrete poles.
The fixing clamp is implemented using a 10mm diameter bolt or using a 20x0.7mm stainless steel strap (tensile strength: 200daN).
The ABC cable pole bracket is implemented using a 14 or 16mm diameter bolt or using two 20x0.7mm stainless steel straps (tensile strength: 200daN/anchoring point).
This anchoring assembly meets the criteria of the NF C 33-042 and EN 50-483 standards
