LV self support aluminum alloy anchoring clamp for ABC cable DR1400 DR1500 DR1600 JBG-1

Overview

Description of self supporting anchor clamp:

The self supporting anchor clamp for ab cable service line.The dead end clamp is designed to anchor insulated service lines with 2 or 4 conductors to the pole or wall. The clamp is composed of a body, wedges and removable and adjustable bail or pad. One core adjustable anchor clamp are design to supporting the neutral messenger,the wedge can be self-adjusting. Pilot wires or street lighting conductor are led alongside the clamp. The self opening is featured by an integrate spring facilities for easily insert the conductor into the clamp. Standard: NFC 33-042.
Material：High strength aluminium alloy,nylon plus fiber glass ,stainless steel
Product property：They are characterized by high mechanical stability ,reduced dimensions for easier handling ,high mechanical and climatic resistance .Cable gripping device in insulating material ensures the double insulation of the neutral core and avoids damage to sheath ,secured parts ,no tools required .Stainless steel bail with two marbles compressed on the end ,theis conception allows an easier locking on the body of the clalnp .They are in accordance with NFC 33-041 .
Tey

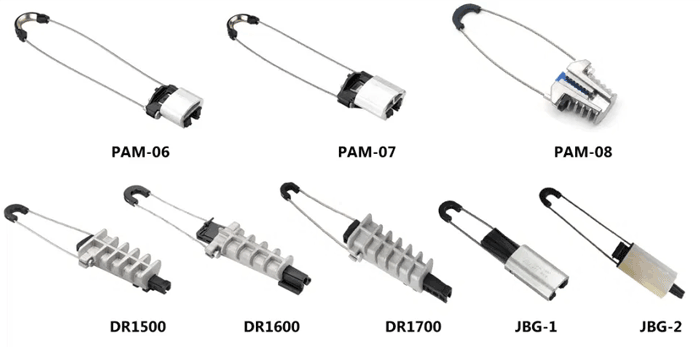

Insulated ABC Cable Accessories DR1400  Anchor Dead End Clamp
Insulated ABC Cable Accessories DR1500  Anchor Dead End Clamp
Insulated ABC Cable Accessories DR1600  Anchor Dead End Clamp
Insulated ABC Cable Accessories JBG-1 Anchor Dead End Clamp

Dimensions
Code	DR1400	DR1500	DR1600	JBG-1
Cable Size	50-70mm²	50-70mm²	50-70mm²	50-70mm²
Specification
Use	This anchoring assembly is used for the single anchoring of A.B.C.(Aerial Bundled Conductors) with insulated neutral messenger. It comprises a bracket supporting one or two anchoring clamps.
Installation	Open the screw and put conductors into grooves.Tighten the shear head nut.
Standard	NFC 33-042; EN 50-483
