Overview

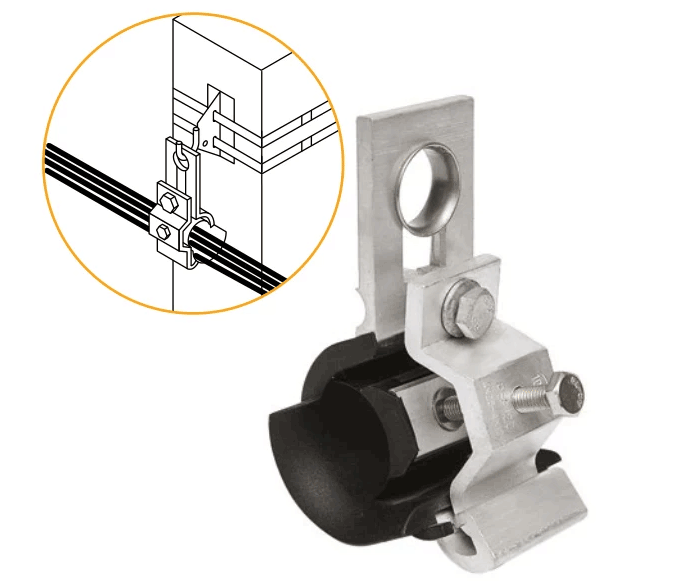

Self-Supporting ABC Line Suspension clamp designed to suspend four or two insulated main connectors in self-supporting aerialbundled cable system, up to 1KV. Suspension Clamp attach to towers, poles or walls, on angles up to 30°.
Self-Supporting ABC Line Suspension clamp applied on cables from 16 to120 mm² in main electrical connections. Tightening installation torque should not be lower tnan 10 N·m.
ABC Accessories Suspension clamp is made of high strenght alumi-num parts, weather and Uv resistant fiberglass reinforcedplastic parts, corrosion resistant hardware, and stainlesssteel ring. ABC Cable Suspension clamp is a one-piece format. Assists linesmen by hanging the LV-ABC in open position, and allow quick installation by tightening the fastener. Stainless steelring allows easy installations with the LV ABC hooks, pigtails.
Self-Supporting ABC Line Suspension clamp designed to suspend four or two insulated main connectors in self-supporting aerialbundled cable system, up to 1KV. Suspension Clamp attach to towers, poles or walls, on angles up to 30°.
Self-Supporting ABC Line Suspension clamp applied on cables from 16 to120 mm² in main electrical connections. Tightening installation torque should not be lower tnan 10 N·m.
ABC Accessories Suspension clamp is made of high strenght alumi-num parts, weather and Uv resistant fiberglass reinforcedplastic parts, corrosion resistant hardware, and stainlesssteel ring. ABC Cable Suspension clamp is a one-piece format. Assists linesmen by hanging the LV-ABC in open position, and allow quick installation by tightening the fastener. Stainless steelring allows easy installations with the LV ABC hooks, pigtails.
| Productor Code | Cable Type | Size （mm²） | Minimum Breaking Load(KN) | Overhead Line |
| PS130 | 2,4 core ABC | 16-120 | 10 | Main connections, up to 1kv |
