Overview
Ball Clevis available as forged or as cast
Ball clevis supplied complete with one cotter and cotter pin
Ball clevis can be supplied in higher strength rating if required by using higher strength steel and heat treatment thereof
All ferrous parts hot dip galvanized to BS 729 except Cotter pin which is made of stainless steel
Ball Clevis conforms to requirements of BS 3288
Materials :
Hot dip galvanized steel
Minimum breaking strength :
70KN / 120KN / 160KN
Parameter
Ball Clevis available as forged or as cast
Ball clevis supplied complete with one cotter and cotter pin
Ball clevis can be supplied in higher strength rating if required by using higher strength steel and heat treatment thereof
All ferrous parts hot dip galvanized to BS 729 except Cotter pin which is made of stainless steel
Ball Clevis conforms to requirements of BS 3288
Materials :
Hot dip galvanized steel
Minimum breaking strength :
70KN / 120KN / 160KN
Parameter

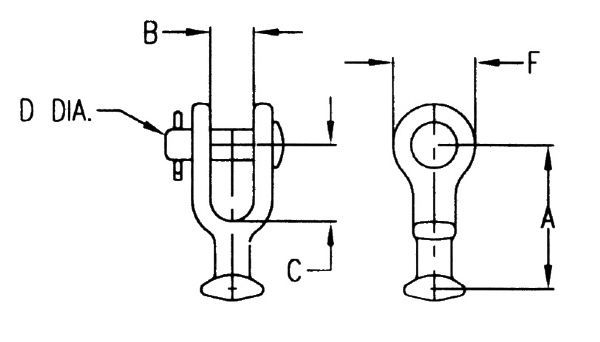

| CATALOG | A | B | C | D | E | MFL |
| BC-01 | 2-7/8 76 | 7/8 22 | 1-1/2 38 | 5/8 16 | 1-3/4 44 | 70 KN |
| BC-02 | 3-15/16 100 | 7/8 22 | 1-1/2 38 | 5/8 16 | 2-1/2 63 | 70 KN |
