Overview
Link fitting is used to link clamps to insulators, or to link insulator and ground wire clamp to tower arms or subjection structure.
Link fitting has a special type and a common type in accordance with mounting conditions.
The special type includes the ball-eye and a socket clevis linking with an insulator. The common type is usually a pin-connected type.
They have different grades in according to the load and are exchangeable for the same grade.
Hot-dip galvanized steel.
Eye Links (Type ZH)

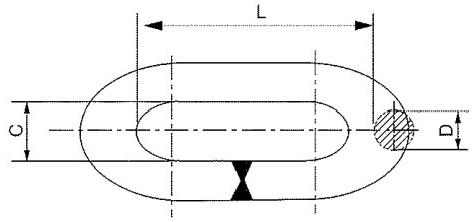

Extension Links (Link Body Welded)
Hot-dip galvanized steel.
Extension Links(Link Body Whole-forged)
Hot-dip galvanized steel.
Link fitting is used to link clamps to insulators, or to link insulator and ground wire clamp to tower arms or subjection structure.
Link fitting has a special type and a common type in accordance with mounting conditions.
The special type includes the ball-eye and a socket clevis linking with an insulator. The common type is usually a pin-connected type.
They have different grades in according to the load and are exchangeable for the same grade.
Hot-dip galvanized steel.

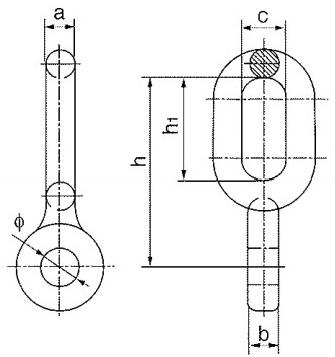

Eye Links (Type ZH)
| Catalog No. | Dimensions(mm) | Rated Failure Load(kN) | Weight(kg) | |||||
| a | b | C | φ | h₁ | h | |||
| ZH-7 | 16 | 16 | 24 | 20 | 57 | 95 | 70 | 0.5 |
Hot-dip galvanized steel.
| Catalog No. | Dimensions(mm) | Rated Failure Load(kN) | Weight(kg) | ||
| C | D | L | |||
| PH-7 | 20 | 16 | 80 | 70 | 0.4 |
| PH-10 | 22 | 18 | 100 | 100 | 0.6 |
| PH-10L | 22 | 18 | 350 | 100 | 1.7 |
| PH-12 | 24 | 20 | 120 | 120 | 0.9 |
| PH-16 | 26 | 22 | 140 | 160 | 1.2 |
| PIH-20 | 30 | 24 | 160 | 200 | 1.6 |
| PH-25 | 34 | 26 | 160 | 250 | 2 |
| PH-30 | 38 | 30 | 180 | 300 | 3 |
| PH-50 | 44 | 36 | 200 | 600 | 11.5 |
Hot-dip galvanized steel.
| Catalog No. | Dimensions(mm) | Rated Failure load(kN) | Weight(kg) | ||
| C | D | L | |||
| PH-7.1 | 20 | 16 | 80 | 70 | 0.4 |
| PH-10.1 | 22 | 18 | 100 | 100 | 0.6 |
| PH-12.1 | 24 | 20 | 120 | 120 | 0.9 |
| PH-16.1 | 26 | 22 | 140 | 160 | 1.5 |
| PH~20.1 | 30 | 24 | 160 | 200 | 1.6 |
| PH~-25.1 | 34 | 26 | 160 | 250 | 2 |
| PH-30.1 | 38 | 30 | 180 | 300 | 3 |
