Product Information:

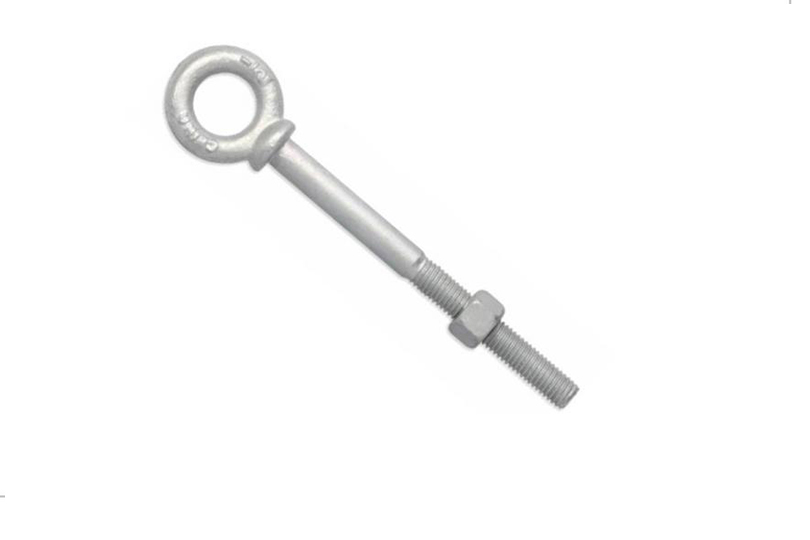

A shoulder nut eye bolt can be used when applying angular loads, while keeping in mind the rated capacity is drastically reduced when loading at any angle. When a shoulder pattern-lifting eye is properly seated in the receiving hole, the shoulder bears against the seat and reduces bending stress on the shank.

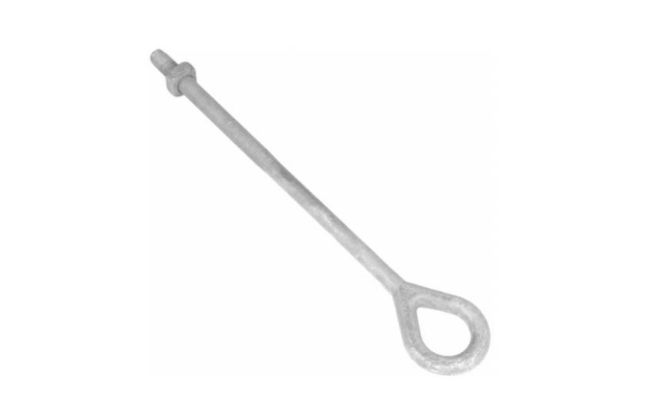

Forged shoulder eye bolt OvaLeye bolt

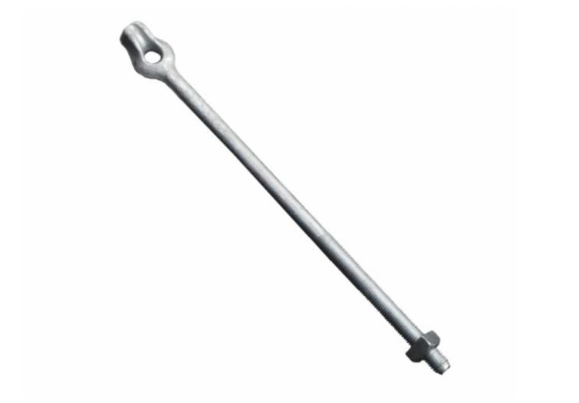

Thimble eye bolt(elbow) Thimble eye bolt(straight)
Support custom size
OvaLEye Bolts
Application
Eye bolts are commonly used as an attachment point to secure
thimbles, clevises, links and deadend insulators.
Features
●Forged, one-piece design
●Supplied assembled with square nut
●EyeLD- 1 1/2x2”
Material
SteeLhot dip galvanized
5/8”Diameter - Minimum Tensile Strength 13,550 Ibs
3/4”Diameter - Minimum Tensile Strength 20,050 Ibs
Features
●Double Arming Eyebolts (D .A. Eyebolts) are forged in a one piece design and are commonly used as a combination double
arming bolt as welLas an eyebolt.
●Double arming eyebolts are fully threaded the entire bolt length except for 2 inches under the eye. They are supplied
assembled with three square nuts.
●Eye LD.1- 1/2" width x 2" length
Material
SteeLhot dip galvanized
5/8”Diameter - Minimum Tensile Strength 13,550 Ibs
3/4”Diameter - Minimum Tensile Strength 20,050 Ibs
A shoulder nut eye bolt can be used when applying angular loads, while keeping in mind the rated capacity is drastically reduced when loading at any angle. When a shoulder pattern-lifting eye is properly seated in the receiving hole, the shoulder bears against the seat and reduces bending stress on the shank.
Forged shoulder eye bolt OvaLeye bolt
Thimble eye bolt(elbow) Thimble eye bolt(straight)
| Type | Dia | Length(mm) |
| Eye Bolt | M16 | 250 |
| Thimble eye bolt | M20 | 350 |
| M16 | M16 | 2400 |
| M16 | M20 | 2400 |
Support custom size
OvaLEye Bolts
Application
Eye bolts are commonly used as an attachment point to secure
thimbles, clevises, links and deadend insulators.

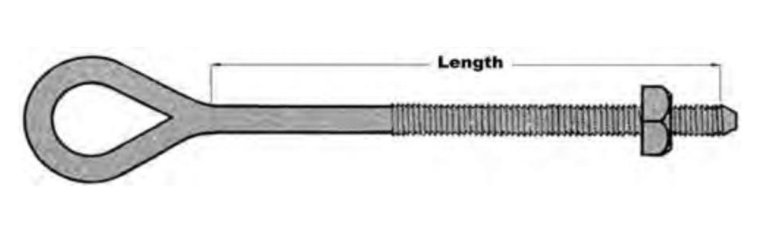

Features
●Forged, one-piece design
●Supplied assembled with square nut
●EyeLD- 1 1/2x2”
Material
SteeLhot dip galvanized
5/8”Diameter - Minimum Tensile Strength 13,550 Ibs
| Catalog number | Bolt Length (in) | Thread Length (in) | Weight /100 (Ibs) |
| LR9406 | 6 | 4 | 112 |
| LR9408 | 8 | 4 | 128 |
| LR9409 | 9 | 4 | 136 |
| LR9410 | 10 | 6 | 146 |
| LR9412 | 12 | 6 | 156 |
| LR9414 | 14 | 6 | 168 |
| LR9416 | 16 | 6 | 188 |
| LR9418 | 18 | 6 | 212 |
| LR9420 | 20 | 6 | 220 |
3/4”Diameter - Minimum Tensile Strength 20,050 Ibs
| Catalog number | Bolt Length (in) | Thread Length (in) | Weight /100 (Ibs) |
| LR9508 | 8 | 4 | 180 |
| LR9510 | 10 | 6 | 200 |
| LR9512 | 12 | 6 | 220 |
| LR9514 | 14 | 6 | 240 |
| LR9516 | 16 | 6 | 256 |
| LR9518 | 18 | 6 | 280 |

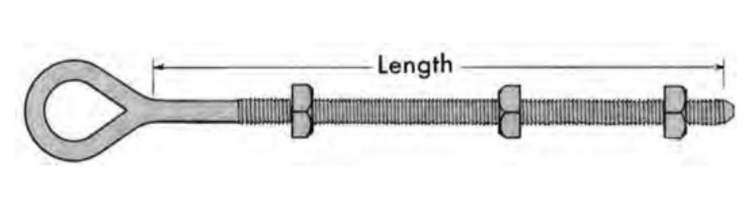

Features
●Double Arming Eyebolts (D .A. Eyebolts) are forged in a one piece design and are commonly used as a combination double
arming bolt as welLas an eyebolt.
●Double arming eyebolts are fully threaded the entire bolt length except for 2 inches under the eye. They are supplied
assembled with three square nuts.
●Eye LD.1- 1/2" width x 2" length
Material
SteeLhot dip galvanized
5/8”Diameter - Minimum Tensile Strength 13,550 Ibs
| Catalog number | Bolt Length (in) | Thread Length (in) | Weight /100 (Ibs) |
| LR9614 | 14 | 12 | 204 |
| LR9616 | 16 | 14 | 220 |
| LR9618 | 18 | 16 | 232 |
| LR9620 | 20 | 18 | 244 |
| LR9622 | 22 | 20 | 260 |
| LR9624 | 24 | 22 | 280 |
| LR9626 | 26 | 24 | 300 |
3/4”Diameter - Minimum Tensile Strength 20,050 Ibs
| Catalog number | Bolt Length (in) | Thread Length (in) | Weight /100 (Ibs) |
| LR9636 | 16 | 14 | 300 |
| LR9638 | 18 | 16 | 320 |
| LR9640 | 20 | 18 | 340 |
| LR9642 | 22 | 20 | 360 |
| LR9644 | 24 | 22 | 380 |
| LR9646 | 26 | 24 | 400 |
