Overview
The Strain Clamps are designed to secure conductors and ground wires with insulators or link fittings to tower arms and substation structures. It is mainly used in applications involving distribution or transmission lines. U bolts, nuts, and washers are required to fix the conductors to the body. The additional special liners or armor tape provides protection for the conductor from subsequent damages.
Strain Clamps (Bolt Type)
The clamp body and keepers are mallcable iron, comallea bletter-pins are stainless steel, the other parts are steel. All ferrous pand ars are hot-dip galvanized.

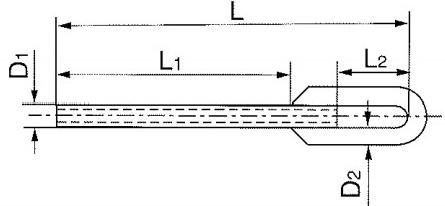

Strain Clamps for Steel Wire (Compression Type)
Hot-dip galvanized steel.

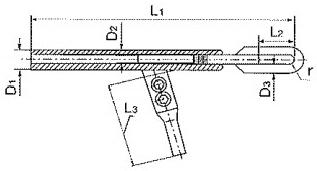

Strain Clamps (Hydraulic Compression Type)
The clamp body and jumper clamp are aluminum,the other parts are hot-dip galvanized steel.

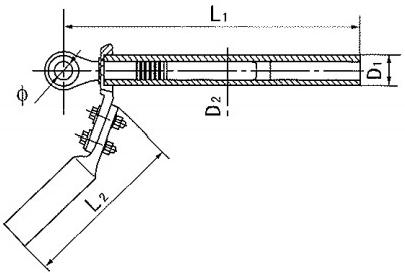

Strain Clamps (Hydraulic Compression Type,Anchor Forged)
The clamp body and jumper clamp is aluminum,the other parts are hot-dip galvanized steel.
Aluminium Alloy Strain Clamps (Bolt Type)
The clamp body and keepers are aluminum alloy, the cotter-pin is stainless steel, the other parts are hot-dip galvanized steel.
Strain Clamps for Insulated Cable (Wedge Type)
The clamp body is aluminum alloy, the clamp core is plastic, the other parts are hot-dip galvanized steel.
Strain Clamps(80 Type)
The clamp body and jumper clamp are aluminum, the other parts are hot-dip galvanized steel.
Strain Clamps (Explosive Compression Type)
The clamp body and jumper clamp are aluminum, the other parts are hot-dip galvanized steel.
Strain Clamps for ACSR/AS Conductor (Hydraulic Compression Type)
The clamp body and jumper clamp are aluminum, the other parts are hot-dip galvanized steel.
Strain Clamps for AS.Stranded Wire (Hydraulic Compression Type)
The clamp body 、lining sleeve and jumper clamp are aluminum.The other parts are hot…dip galvanized steel.
Strain Clamps for Heat-Resistant Aluminium Alloy Stranded Conductor (Hydraulic Compression Type)
The clamp body and jumper clamp are aluminum, the other parts are hot-dip galvanized steel.
The Clamp body and jumper clamp are aluminum, the other parts are hot-dip galvanized steel.
Strain Clamps for AACSR(Hydraulic Compression Type)
The clamp body and jumper clamp are aluminum, the other parts are hot-dip galvanized steel.
The Strain Clamps are designed to secure conductors and ground wires with insulators or link fittings to tower arms and substation structures. It is mainly used in applications involving distribution or transmission lines. U bolts, nuts, and washers are required to fix the conductors to the body. The additional special liners or armor tape provides protection for the conductor from subsequent damages.
Strain Clamps (Bolt Type)
The clamp body and keepers are mallcable iron, comallea bletter-pins are stainless steel, the other parts are steel. All ferrous pand ars are hot-dip galvanized.
| Calalog No. | Conductor Dia(mm) | Dimensions(mm) | U Bolt | Raled Failure Load(kN) | Weight(kg) | |||||
| M | C | L1 | L2 | R | Qty(pc.) | dia(mm) | ||||
| NLD-1 | 50-10.0 | 16 | 18 | 150 | 120 | 6.5 | 2 | 12 | 20 | 1.3 |
| NLD-2 | 10.1-14.0 | 16 | 18 | 205 | 130 | 8 | 3 | 12 | 40 | 2.1 |
| NLD-3 | 14.1-18.0 | 18 | 22 | 310 | 160 | 11 | 4 | 16 | 70 | 4.6 |
| NLD-4 | 18.1-23.0 | 18 | 25 | 410 | 220 | 12.5 | 4 | 16 | 90 | 7.1 |
Hot-dip galvanized steel.
| Catalog No. | Dia.of steel wire(mm) | Dimensions(mm) | Slip Strength (kN | Weight(kg) | ||||
| D₁ | D₂ | L | L₂ | L | ||||
| NY-35G | 7.8 | 16 | 16 | 115 | 50 | 205 | 45 | 0.6 |
| NY-50G | 9 | 18 | 16 | 130 | 55 | 230 | 60 | 0.7 |
| NY-70G | 11 | 22 | 18 | 155 | 110 | 315 | 88 | 1.3 |
| NY-100G | 13 | 26 | 20 | 185 | 130 | 365 | 123 | 1.7 |
| NY-120G | 14 | 28 | 22 | 195 | 70 | 320 | 143 | 2 |
| NY-135G | 15 | 30 | 22 | 215 | 80 | 365 | 164 | 2.3 |
| NY-150G | 16 | 32 | 24 | 230 | 90 | 390 | 187 | 2.8 |
The clamp body and jumper clamp are aluminum,the other parts are hot-dip galvanized steel.
| Catalog No. | Suitable Conductor | Dimensions(mm) | Slip Strenglh(kN) | Fig.No. | Weight(Kg) | ||||||
| D1 | D2 | D3 | L1 | L₂ | R | L₃ | |||||
| NY-50/30 | LGJ-50/30 | 32 | 16 | 16 | 330 | 60 | 8.5 | 180 | 41 | 1.4 | |
| NY-60/35 | LGJ-60/35 | 32 | 16 | 16 | 450 | 60 | 8.5 | 180 | 46 | 1 | 1.6 |
| NY-70/40 | LGJ-70/40 | 32 | 16 | 16 | 450 | 50 | 8.5 | 180 | 55 | 1 | 1.9 |
| NY-95/55 | LGJ-95/55 | 34 | 22 | 18 | 406 | 50 | 11 | 210 | 74 | 2.1 | |
| NY-95/140 | LGJ-95/140 | 45 | 30 | 24 | 605 | 80 | 15 | 245 | 163 | 4.9 | |
| NY-150/20 | LGJ-150/20 | 30 | 16 | 16 | 510 | 55 | 8 | 285 | 44 | 3.6 | |
| NY-150/35 | LGJ-150/35 | 32 | 16 | 16 | 475 | 55 | 9 | 210 | 61 | 2 | |
| NY-185/30 | LGJ-185/30 | 32 | 16 | 16 | 460 | 55 | 9 | 295 | 62 | 2.2 | |
| NY-185/45 | LGJ-185/45 | 34 | 18 | 16 | 495 | 60 | 10 | 240 | 76 | 2.6 | |
| NY-240/30 | LGJ-240/30 | 36 | 16 | 18 | 500 | 55 | 10 | 240 | 72 | 2.5 | |
| NY-240/40 | LGJ-240/40 | 36 | 16 | 18 | 515 | 55 | 10 | 240 | 79 | 1 | 2.5 |
| NY-240/55 | LGJ-240/55 | 36 | 20 | 18 | 535 | 55 | 11 | 250 | 97 | 2.7 | |
| NY-300/15 | LGJ-300/15 | 40 | 14 | 16 | 490 | 50 | 11 | 265 | 65 | 2.6 | |
| NY-300/20 | LGJ-300/20 | 40 | 14 | 18 | 510 | 55 | 11 | 265 | 72 | 2.8 | |
| NY-300/25 | LGJ-300/25 | 40 | 14 | 18 | 515 | 55 | 11 | 265 | 79 | 2.9 | |
| NY-300/40 | LGJ-300/40 | 40 | 16 | 18 | 535 | 55 | 11 | 265 | 88 | 3.1 | |
| NY-300/50 | LGJ-300/50 | 40 | 18 | 18 | 560 | 65 | 12 | 265 | 98 | 1 | 3.1 |
| NY-300/70 | LGJ-300/70 | 42 | 22 | 20 | 600 | 70 | 12 | 265 | 122 | 3.9 | |
| NY-400/20 | LGJ-400/20 | 45 | 14 | 18 | 540 | 55 | 13 | 280 | 84 | 3.6 | |
| NY-400/25 | LGJ-400/25 | 45 | 14 | 18 | 550 | 55 | 13 | 280 | 91 | 3.7 | |
| NY-400/35 | LGJ-400/35 | 45 | 16 | 20 | 580 | 65 | 13 | 280 | 99 | 4 | |
| NY-400/50 | LGJ-400/50 | 45 | 20 | 20 | 590 | 65 | 13 | 280 | 117 | 4.2 | |
| NY-400/65 | LGJ-400/65 | 48 | 22 | 22 | 620 | 70 | 13 | 280 | 123 | 5.4 | |
| NY-400/95 | LGJ-400/95 | 48 | 26 | 26 | 670 | 80 | 15 | 280 | 163 | 6.6 | |
| NY-500/35 | LGJ-500/35 | 52 | 16 | 20 | 620 | 65 | 14 | 245 | 114 | 2 | 5.3 |
| NY-500/45 | LGJ-500/45 | 52 | 18 | 20 | 625 | 70 | 14 | 245 | 122 | 5.4 | |
| NY-500/65 | LGJ-500/65 | 52 | 22 | 22 | 660 | 70 | 15 | 245 | 146 | 2 | 6.2 |
| NY-630/45 | LGJ-630/45 | 60 | 18 | 22 | 660 | 70 | 16 | 290 | 141 | 2 | 7.7 |
| NY-630/55 | LGJ-630/55 | 60 | 20 | 22 | 660 | 70 | 16 | 290 | 156 | 2 | 7.9 |
| NY-630/80 | LGJ-630/80 | 60 | 24 | 26 | 715 | 80 | 17 | 290 | 183 | 2 | 9.1 |
| NY-800/55 | LGJ-800/55 | 65 | 20 | 26 | 735 | 80 | 19 | 335 | 182 | 2 | 10.5 |
| NY-800/70 | LGJ-800/70 | 65 | 22 | 26 | 740 | 85 | 19 | 335 | 197 | 2 | 10.6 |
| NY-800/100 | LGJ-800/100 | 65 | 26 | 30 | 775 | 85 | 19 | 335 | 229 | 2 | 12.1 |
The clamp body and jumper clamp is aluminum,the other parts are hot-dip galvanized steel.
| Catalog No | Suitable Conductor | Dimensions (mm) | Slip Strength(kN) | Weight(Kg) | ||||||
| D₁ | D₂ | D₃ | L₁ | L₂ | L | L₃ | ||||
| NY-240/30.1 | LGJ-240/30 | 36 | 16 | 18 | 490 | 65 | 10 | 240 | 72 | 2.9 |
| NY-240/40.1 | LGJ-240/40 | 36 | 16 | 18 | 490 | 65 | 10 | 240 | 79 | 3.1 |
| NY-240/55.1 | LGJ-240/55 | 36 | 20 | 18 | 520 | 65 | 11 | 250 | 97 | 3.2 |
| NY-300/15.1 | LGJ-300/15 | 40 | 14 | 16 | 481 | 61 | 11 | 265 | 65 | 3.6 |
| NY-300/20.1 | IGI-300/2C | 40 | 14 | 18 | 497 | 67 | 11 | 265 | 72 | 3.6 |
| NY-300/25.1 | L.GJ-300/25 | 40 | 14 | 18 | 502 | 67 · | 11 | 265 | 79 | 3.5 |
| NY-300/40.1 | LGJ-300/40 | 40 | 16 | 18 | 522 | 67 | 11 | 265 | 88 | 3.5 |
| NY+300/50.1 | LGJ-300/50 | 40 | 18 | 18 | 542 | 77 | 12 | 265 | 98 | 3.9 |
| NY-300/70.1 | LGJ-300/70 | 42 | 22 | 20 | 577 | 82 | 12 | 265 | 122 | 4.5 |
| NY-400/20.1 | LGJ-400/20 | 45 | 14 | 18 | 528 | 68 | 13 | 280 | 84 | 4.3 |
| NY-400/25.1 | LGJ-400/25 | 45 | 14 | 18 | 538 | 68 | 13 | 280 | 91 | 4.3 |
| NY-400/35.1 | LGJ…400/35 | 45 | 16 | 20 | 563 | 78 | 13 | 280 | 99 | 4.6 |
| NY-400/50.1 | LGJ-400/50 | 45 | 20 | 20 | 573 | 78 | 13 | 280 | 117 | 4.7 |
| NY-400/65.1 | LGJ-400/65 | 48 | 22 | 22 | 598 | 83 | 13 | 280 | 123 | 5.4 |
| NY-400/95.1 | LGJ-400/95 | 48 | 26 | 26 | 650 | 95 | 15 | 280 | 163 | 7.1 |
The clamp body and keepers are aluminum alloy, the cotter-pin is stainless steel, the other parts are hot-dip galvanized steel.
| Catalog No. | Conductor Dia (mm | Dimensions(mm) | U Bolt Qty(pc.) | Rated Failure Load(kN) | Weight(kg) | |||
| M | C | L1 | L₂ | |||||
| NLL-1 | 5.1-11.4 | 16 | 19 | 126 | 108 | 2 | 40 | 0.5 |
| NLL-2 | 8.9-18.5 | 16 | 24 | 176 | 187 | 2 | 40 | 1.8 |
| NLL-3 | 5.0-15.0 | 16 | 17.5 | 190 | 203 | 3 | 70 | 1.9 |
| NLL-4 | 12.1-21.8 | 16 | 30 | 298 | 284 | 4 | 90 | 4.1 |
| NLL-5 | 18.0-30.0 | 24 | 36 | 446 | 342 | 5 | 620 | 7 |
Strain Clamps for Insulated Cable (Wedge Type)
The clamp body is aluminum alloy, the clamp core is plastic, the other parts are hot-dip galvanized steel.
| Catalog No. | Suitable Conductor | Dimensions(mm) | Slip Strength(kN) | Weight(Kg) | |||
| C | M | D | L | ||||
| NX-I Y | JKLYJ-240 | 128 | 12 | 27 | 140-240 | 22.5 | 2 |
| JKLYJ-180 | 17.3 | ||||||
| NX-ⅡY | JKLYJ-150 | 128 | 12 | 23 | 140-240 | 13.6 | 2 |
| JKLYJ-120 | 11.3 | ||||||
| NX-ⅢY | JKLYJ-95 | 108 | 12 | 20 | 140-240 | 8.9 | 1.6 |
| JKLYJ-70 | 6.7 | ||||||
| NX-IV Y | JKLYJ-50 | 108 | 12 | 18 | 140-220 | 4.6 | 1.6 |
| NX-V Y | JKLYJ-35 | 92 | 10 | 12 | 160-220 | 3.4 | 1.1 |

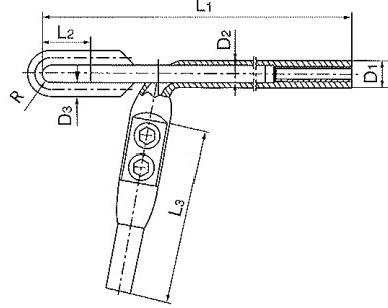

Strain Clamps(80 Type)
The clamp body and jumper clamp are aluminum, the other parts are hot-dip galvanized steel.
| Catalog No. | Suitable Conductor | Dimensions(mm) | Slip Strength(kN) | Fig.No. | Weight(Kg) | |||||
| D₁ | D₂ | D₃ | Li | L2 | L3 | |||||
| NY-185 | LGJ-185 | 34 | 18 | 16 | 340 | 50 | 195 | 61 | 1 | 1.9 |
| NY-185B | ||||||||||
| NY-1853 | LGJJ-185 | 34 | 20 | 16 | 370 | 50 | 195 | 67 | 2.1 | |
| NY-185JB | ||||||||||
| NY-240Q | LGJQ-240 | 38 | 22 | 16 | 400 | 50 | 225 | 66 | 2.4 | |
| NY-240QB | ||||||||||
| NY-240 | LGJQ-240 | 38 | 20 | 16 | 400 | 50 | 225 | 73 | 1 | 2.4 |
| NY-240B | ||||||||||
| NY-240J | LGJJ-240 | 38 | 22 | 18 | 430 | 50 | 225 | 88 | 1 | 2.6 |
| NY-240JB | ||||||||||
| NY-300Q | LGJQ-300 | 40 | 22 | 16 | 395 | 50 | 265 | 80 | 1 | 2.8 |
| NY-300QB | ||||||||||
| NY-300 | LGJ-300 | 40 | 24 | 18 | 445 | 50 | 265 | 104 | 3.5 | |
| NY-300B | ||||||||||
| NY-300J | LGJJ-300 | 40 | 24 | 20 | 465 | 60 | 265 | 116 | 3.5 | |
| NY-300JB | ||||||||||
| NY-400Q | LGJQ-400 | 45 | 24 | 18 | 445 | 70 | 280 | 103 | 1 | 3.6 |
| NY-400QB | ||||||||||
| NY-400 | LGJ-400 | 45 | 26 | 20 | 475 | 60 | 280 | 125 | 4.1 | |
| NY-400B | ||||||||||
| NY-400J | LGJJ-400 | 45 | 28 | 22 | 525 | 60 | 280 | 150 | 4.6 | |
| NY-400JB | ||||||||||
| NY-500Q | LGJQ-500 | 50 | 30 | 26 | 480 | 70 | 245 | 129 | 2 | 4.4 |
| NY-600Q | LGJQ-600 | 55 | 33 | 30 | S10 | 75 | 290 | 151 | 2 | 5.5 |
| NY-700Q | LGJQ-700 | 60 | 36 | 32 | 575 | 80 | 290 | 180 | 2 | 6.3 |
Strain Clamps (Explosive Compression Type)
The clamp body and jumper clamp are aluminum, the other parts are hot-dip galvanized steel.
| Catalog No. | Suitable Conductor | Dimensions(mm) | Slip Strength(kN) | Weight(Kg) | |||||
| D1 | D₂ | D₃ | L | L₂ | L₃ | ||||
| NB-185/30 | LGJ-185/30 | 34 | 18 | 16 | 420 | 55 | 255 | 61 | 2.4 |
| NB--240/30 | LGJ-240/30 | 36 | 22 | 16 | 415 | 60 | 240 | 42 | 2.7 |
| NB-300/25 | LGJ-300/25 | 40 | 22 | 16 | 440 | 60 | 255 | 80 | 2.7 |
| NB-300/40A NB-300/40B | LGJ-300/40 | 40 | 22 | 18 | 415 | 55 | 265 | 88 | 3 |
| NB-300/50A NB-300/50B | LGJ-300/50 | 40 | 24 | 18 | 465 | 65 | 265 | 98 | 3.2 |
| NB-400/50A NB-400/50B | LGJ-400/50 | 45 | 24 | 20 | 470 | 70 | 280 | 117 | 3.8 |
| NB-400/65A NB-400/65B | LGJ-400/65 | 48 | 26 | 20 | 500 | 75 | 280 | 128 | 4.2 |
| NB-300/70A NB-300/70B | LGJ-300/70 | 42 | 24 | 20 | 480 | 70 | 265 | 122 | 3.5 |
| NB-400/95A NB-400/9SB | LGJ-400/95 | 48 | 28 | 22 | 535 | 80 | 280 | 163 | 5.1 |

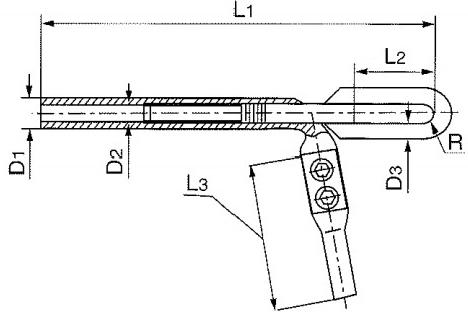

Strain Clamps for ACSR/AS Conductor (Hydraulic Compression Type)
The clamp body and jumper clamp are aluminum, the other parts are hot-dip galvanized steel.
| Catalog No. | Suitable Conductor | Dimensions(mm) | Slip Sirength (kN) | Weight(Kg) | ||||||
| D1 | D₂ | D₃ | L₃ | R | ||||||
| NY-70/40BG | ACSR/AS-70/40 | 34 | 16 | 16 | 480 | 50 | 180 | 8.5 | 57.8 | 0.4 |
| NY-80/47BG | ACSR/AS-80/47 | 36 | 18 | 16 | 485 | 70 | 230 | 10 | 64.6 | 2.6 |
| NY-95/55BG | ACSR/AS-95/55 | 36 | 20 | 18 | 486 | 61 | 230 | 11 | 74 | 2.9 |
| NY-185/30BG | ACSR/AS-185/30 | 36 | 16 | 16 | 550 | 55 | 220 | 9 | 62.9 | 2.9 |
| NY-240/40BG | ACSR/AS-240/40 | 38 | 18 | 18 | 595 | 65 | 240 | 12 | 81.6 | 3.3 |
| NY-300/25BG | ACSR/AS-300/25 | 42 | 14 | 18 | 560 | 55 | 265 | 11 | 74.4 | 3.6 |
| NY-300/40BG | ACSR/AS-300/40 | 42 | 18 | 18 | 615 | 70 | 265 | 13 | 90 | 3.8 |
| NY-300/50BG | ACSR/AS-300/50 | 42 | 18 | 18 | 620 | 70 | 265 | 13 | 10].0 | 4.1 |
| NY-300/70BG | ACSR/AS-300/70 | 42 | 22 | 20 | 640 | 70 | 260 | 13 | 117.8 | 4.4 |
| NY-400/35BG | ACSR/AS-400/35 | 48 | 18 | 20 | 635 | 65 | 280 | 13 | 99 | 5.2 |
| NY-400/50BG | ACSR/AS-400/50 | 48 | 20 | 20 | 645 | 65 | 280 | 13 | 117 | 5.2 |

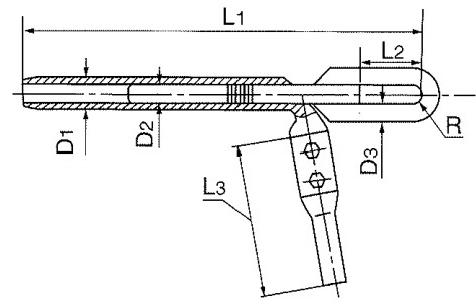

Strain Clamps for AS.Stranded Wire (Hydraulic Compression Type)
The clamp body 、lining sleeve and jumper clamp are aluminum.The other parts are hot…dip galvanized steel.
| Catalog No. | Suitable Conductor | Dimensions(mm) | Slip Sirength (kN) | Weight(Kg) | ||||||
| D1 | D₂ | D₃ | L₃ | R | ||||||
| NY-50BG | LB20J-50 | 32 | 18 | 16 | 275 | 64 | 195 | 9 | 55.8 | 1.7 |
| NY-70BG | LB27J-70 | 32 | 20 | 16 | 380 | 50 | 185 | 10 | 65.8 | 1.7 |
| NY-80BC | LB20J-80 | 36 | 24 | 18 | 417 | 67 | 185 | 12 | 85 | 2.5 |
| NY-95BG | LB40J-95 | 34 | 24 | 16 | 400 | 60 | 200 | 10 | 56 | 2.5 |
| NY-120BG | LB27J-120 | 36 | 26 | 20 | 375 | 70 | 210 | 13 | 112 | 3 |
| NY-150BG | LB40J-150 | 42 | 26 | 20 | 530 | 75 | 265 | 13 | 86 | 3.8 |
| NY-150.1BG | LB20J-150 | 45 | 32 | 30 | 560 | 90 | 280 | 16 | 167 | 7.3 |
| NY-240BG | 11B27J-240 | 50 | 36 | 30 | 620 | 110 | 280 | 18 | 221.3 | 7.8 |
The clamp body and jumper clamp are aluminum, the other parts are hot-dip galvanized steel.
| Catalog No. | Suitable Conductor | Dimensions(mm) | Slip Sirength (kN) | Weight(Kg) | ||||||
| D1 | D₂ | D₃ | L₃ | R | ||||||
| NY-50BG | LB20J-50 | 32 | 18 | 16 | 275 | 64 | 195 | 9 | 55.8 | 1.7 |
| NY-70BG | LB27J-70 | 32 | 20 | 16 | 380 | 50 | 185 | 10 | 65.8 | 1.7 |
| NY-80BC | LB20J-80 | 36 | 24 | 18 | 417 | 67 | 185 | 12 | 85 | 2.5 |
| NY-95BG | LB40J-95 | 34 | 24 | 16 | 400 | 60 | 200 | 10 | 56 | 2.5 |
| NY-120BG | LB27J-120 | 36 | 26 | 20 | 375 | 70 | 210 | 13 | 112 | 3 |
| NY-150BG | LB40J-150 | 42 | 26 | 20 | 530 | 75 | 265 | 13 | 86 | 3.8 |
| NY-150.1BG | LB20J-150 | 45 | 32 | 30 | 560 | 90 | 280 | 16 | 167 | 7.3 |
| NY-240BG | 11B27J-240 | 50 | 36 | 30 | 620 | 110 | 280 | 18 | 221.3 | 7.8 |
| Catalog No. | Suitable Conductor | Dimensions(mm) | Slip Sirength (kN) | Weight(Kg) | ||||||
| D1 | D2 | D3 | R | L1 | L2 | L3 | ||||
| NY-185/30N | NRLH8GJ-185/30 | 36 | 16 | 16 | 10 | 545 | 55 | 265 | 63 | 4.2 |
| NY-240/30N | NRLH8GJ-240/30 | 45 | 18 | 18 | 10 | 545 | 55 | 285 | 68 | 4.4 |
| NY-400/50N | NRLHSGJ-400/50 | 55 | 20 | 20 | 13.5 | 605 | 65 | 315 | 102 | 7.6 |
The clamp body and jumper clamp are aluminum, the other parts are hot-dip galvanized steel.
| Catalog No. | Suitable Conductor | Dimensions(mm) | Slip Strength(kN) | Weight (Kg) | ||||||
| D1 | D2 | D3 | R | L1 | L2 | L3 | ||||
| NY-120/25N | AACSR-120/25 | 36 | 14 | 16 | 10 | 480 | 60 | 280 | 61 | 3.2 |
| NY-185/45HG2 | AACSR-185/45 | 42 | 18 | 20 | 11.5 | 505 | 70 | 265 | 96 | 3.5 |
| NY-240/40HG1 | LHgGJ-240/40 | 45 | 16 | 20 | 12 | 750 | 70 | 280 | 109 | 4.5 |
| NY-240/55113 | LH₄GJT-240/55 | 45 | 20 | 22 | 13 | 740 | 70 | 280 | 126 | 5.2 |
| NY-300/70H | LH₄GJT-300/70 | 50 | 22 | 22 | 16 | 745 | 116 | 265 | 160 | 6.5 |
| NY-400/95HT | LHsGJ-400/95 | 55 | 26 | 30 | 22 | 850 | 125 | 280 | 215 | 10 |
