Overview
The terminal connector is used to connect the busbar to the outlet of the electrical equipment (such as transformers, circuit breakers, transformers, disconnectors, wall bushings, etc.).
At present, the outlet terminals of commonly used electrical equipment are copper and aluminum, and the lead wires are mostly aluminum stranded wire and steel core aluminum stranded wire, so the equipment clamp is divided into aluminum equipment clamp and copper-aluminum transition equipment clamp Series.
According to the installation and usage of equipment clamps, it is divided into bolt-type equipment clamps and compression equipment clamps.
Parameter
The terminal connector is used to connect the busbar to the outlet of the electrical equipment (such as transformers, circuit breakers, transformers, disconnectors, wall bushings, etc.).
At present, the outlet terminals of commonly used electrical equipment are copper and aluminum, and the lead wires are mostly aluminum stranded wire and steel core aluminum stranded wire, so the equipment clamp is divided into aluminum equipment clamp and copper-aluminum transition equipment clamp Series.
According to the installation and usage of equipment clamps, it is divided into bolt-type equipment clamps and compression equipment clamps.
Parameter

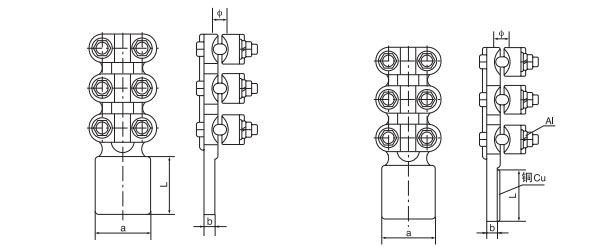

| SLG Cu-Al transition terminal connector(1974 standard finalization type) | ||||||
| Type | Conductor(mm2) | Dimensions(mm) | ||||
| B | A | L1 | L2 | L | ||
| SLG-1 single hole | 35-50 | 40 | 4.5 | 65 | 42 | 120 |
| SLG-2 single hole | 70-95 | 40 | 4.5 | 80 | 45 | 136 |
| SLG-3 double holes | 35-50 | 40 | 4.5 | 65 | 65 | 145 |
| SLG-4 double holes | 70-95 | 40 | 4.5 | 80 | 80 | 175 |
| SLG-5 double holes | 120-150 | 50 | 5.3 | 125 | 85 | 225 |
| SLG-6 double holes | 185-240 | 50 | 5.3 | 125 | 85 | 225 |
| SLG-7 four holes | 120-150 | 80 | 5.5 | 125 | 85 | 239 |
| SLG-8 four holes | 185-240 | 80 | 5.5 | 125 | 85 | 239 |
| SLG Cu-Al transition terminal connector(1985 international type) | ||||||
| Type | Conductor ecternal diameter(mm) | Dimensions(mm) | ||||
| B | A | L1 | L2 | L | ||
| SLG-1A/1B | 8.40-9.60 | 40 | 5 | 145 | 65 | 65 |
| SLG-2A/2B | 11.0-13.68 | 40 | 5 | 175 | 80 | 80 |
| SLG-3A/3B | 15.20-16.72 | 50 | 6 | 225 | 125 | 85 |
| SLG-4A/4B | 19.02-21.28 | 50 | 6 | 225 | 125 | 85 |
