Copper-ALuminum Busbar Expansion Joint

Copper-ALuminum Busbar Expansion Joint

Overview The bus bar of MSS cu-al bus-bar expansion joint is aluminium, the the equipment of MSS Cu-Al bus-bar expansion joint is copper. Copper-Aluminium bus-b
Overview
The bus bar of MSS cu-al bus-bar expansion joint is aluminium, the the equipment of MSS Cu-Al bus-bar expansion joint is copper. Copper-Aluminium bus-bar expansion joint is widely used in various generators, transformers, switches, busbars, electrolysis, smelting and other large electric current equipment to be soft and conductive connections. MSS expansion joint is made of copper and aluminium. MSS expansion joint is bimetallic expansion joint. All of the products and sizes are available. We can also produce as the customer's request.
Parameter

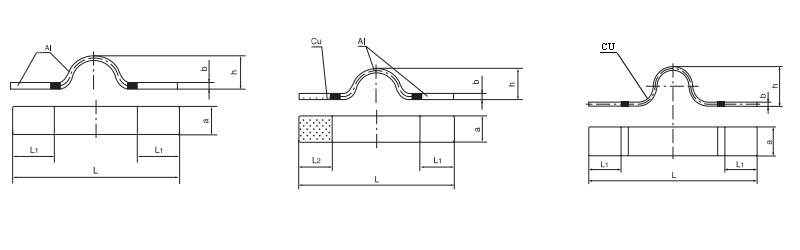

Catalog No. Dimensions(mm) Weight (kg)
a b h L1 L2 L
MSS-50 x 5 50 5 50 75 75 310 0.4
MSS-63 × 6.3 63 6.3 50 73 73 315 0.4
MSS-80 × 6.3 80 6.3 50 900 900 350 0.8
MSS-80 × 8 80 8 50 90 90 350 1.1
MSS-100 × 8 100 8 50 115 115 400 1.5
MSS-100 × 10 100 10 60 115 115 420 2
MSS-125 x 8 125 8 50 140 140 450 2.2
MSS-125×10 125 10 60 140 140 470 2.9
MSS-125 × 12.5 125 12.5 60 140 140 470 3.4
