Overview
Flexible Clamps for Tubular Busbar are mainly used for the continuation and repair of overhead power lines and lightning protection lines. According to the different structure and installation method, it is divided into compression type, bolt type and pre-twisted type. Compression type is divided into hydraulic pressure, burst pressure and clamp pressure.

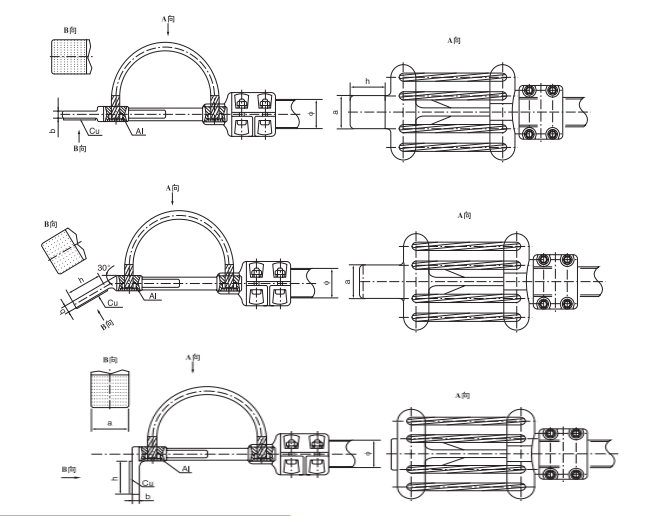

MGS tubular bus bar expansion clamp

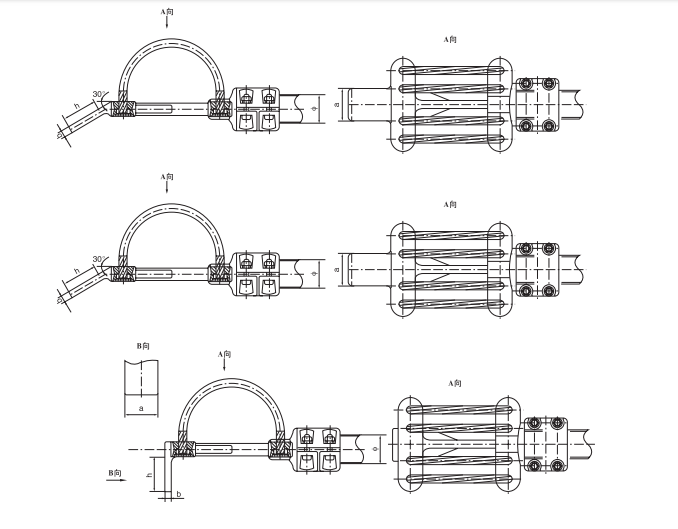

MGSG tubular bus bar expansion clamp
The MGS type is an aluminum wire clip; the MGSG type is a copper-aluminum transition wire clip, and its model name is: MGSG-××A. MGSG uses MGS as a brazed copper plate;
If the size h and a change, please indicate h×a when ordering.
Note: 1. The body and gland are made of aluminum, and the rest are made of hot-dip galvanized steel
If the size of the terminal board required by the user is different from the above, please specify when ordering;
A means α=0° (horizontal); B means α=30°; C means α=90°
Flexible Clamps for Tubular Busbar are mainly used for the continuation and repair of overhead power lines and lightning protection lines. According to the different structure and installation method, it is divided into compression type, bolt type and pre-twisted type. Compression type is divided into hydraulic pressure, burst pressure and clamp pressure.
MGS tubular bus bar expansion clamp
| Type | Suitable Conductor(mm) | Dimensions(mm) | |||
| Φ | B | L | H | ||
| MGS-50A(B、C) | Φ50/45 | 50 | 60 | 75 | 14 |
| MGS-60A(B、C) | Φ60/54 | 60 | 60 | 75 | 14 |
| MGS-70A(B、C) | Φ70/64 | 70 | 80 | 85 | 16 |
| MGS-80A(B、C) | Φ80/72 | 80 | 80 | 85 | 16 |
| MGS-90A(B、C) | Φ90/80 | 90 | 100 | 105 | 18 |
| MGS-100A(B、C) | Φ100/90 | 100 | 100 | 105 | 18 |
| MGS-110A(B、C) | Φ110/100 | 110 | 100 | 105 | 18 |
| MGS-120A(B、C) | Φ120/110 | 120 | 100 | 105 | 18 |
| MGS-130A(B、C) | Φ130/116 | 130 | 125 | 130 | 20 |
| MGS-150A(B、C) | Φ150/136 | 150 | 125 | 130 | 20 |
| TYPE | Suitable Conductor(mm) | Dimensions(mm) | |||
| φ | B | L | H | ||
| MGSG-50A(B、C) | φ50/45 | 50 | 60 | 75 | 14 |
| MGSG-60A(B、C) | φ60/54 | 60 | 60 | 75 | 14 |
| MGSG-70A(B、C) | φ70/64 | 7O | 80 | 85 | 16 |
| MGSG-80A(B、C) | φ80/72 | 80 | 80 | 85 | 16 |
| MGSG-90A(B、C) | φ90/80 | 90 | 100 | 105 | 18 |
| MGSG-100A(B、C) | φ100/90 | 100 | 100 | 105 | 18 |
| MGSG-110A(B、C) | φ110/100 | 110 | 100 | 105 | 18 |
| MGSG-120A(B、C) | φ120/110 | 120 | 100 | 105 | 18 |
| MGSG-130A(B、C) | φ130/116 | 130 | 125 | 130 | 20 |
| MGSG-150A(B、C) | φ150/136 | 150 | 125 | 130 | 20 |
If the size h and a change, please indicate h×a when ordering.
Note: 1. The body and gland are made of aluminum, and the rest are made of hot-dip galvanized steel
If the size of the terminal board required by the user is different from the above, please specify when ordering;
A means α=0° (horizontal); B means α=30°; C means α=90°
