Products Description

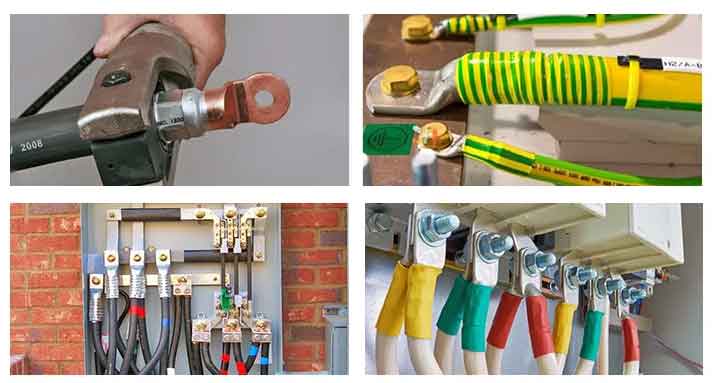

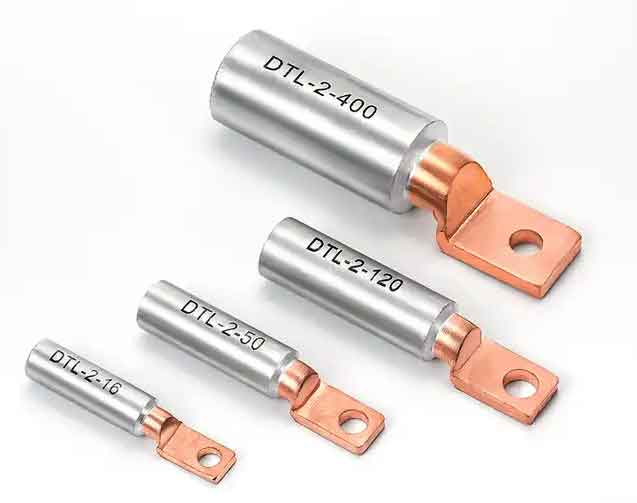

bimetal friction welding cable lugs are mostly useful where an aluminum cable has to be terminated by a copper bus bar or copper contact. If Cable Lugs of only copper or aluminum are used , a galvanic action occurs due to dissimilar contact. The use of bimetallic lugs thus ensures a technically sound and durable joint. The Aluminum barrel is friction welded to the copper palm thereby achieving the best possible transition between barrel & palm.
Our range of Aluminum & Copper Bimetallic Lugs is having following advantages.
Material : Conductivity Aluminum Barrel of 60% IACS & Copper Palm 97% IACS.
Final Metal State : Fully Annealed.
Jointing Method : Friction Welding
Sizes : 16 Sqmm to 1000 Sqmm
Applications
MV Terminations
LV Connections on Bus Bar.
Advantages of bimetallic lugs:
Safe & low cost both in and use.
All copper products are electro-tinned to BS standard and prevents it from corrosion and oxidation.
PVC insulation is provided to terminals for exceptional di-electric strength & for supporting
Entry to the wire barrel is shock-proof, or bell mouthed for faster and easier conductor entry.
bimetal friction welding cable lugs are mostly useful where an aluminum cable has to be terminated by a copper bus bar or copper contact. If Cable Lugs of only copper or aluminum are used , a galvanic action occurs due to dissimilar contact. The use of bimetallic lugs thus ensures a technically sound and durable joint. The Aluminum barrel is friction welded to the copper palm thereby achieving the best possible transition between barrel & palm.
Our range of Aluminum & Copper Bimetallic Lugs is having following advantages.
Material : Conductivity Aluminum Barrel of 60% IACS & Copper Palm 97% IACS.
Final Metal State : Fully Annealed.
Jointing Method : Friction Welding
Sizes : 16 Sqmm to 1000 Sqmm
Applications
MV Terminations
LV Connections on Bus Bar.
Advantages of bimetallic lugs:
Safe & low cost both in and use.
All copper products are electro-tinned to BS standard and prevents it from corrosion and oxidation.
PVC insulation is provided to terminals for exceptional di-electric strength & for supporting
Entry to the wire barrel is shock-proof, or bell mouthed for faster and easier conductor entry.
| Material | Copper or tinned copper or aluminium |
| Size | According to customer's requirement |
| Life | More than 50 years |
| Characters | Easy installation |
| Item No. | φ±0.3 | D±0.2 | d±0.2 | L±2 | L1±2 | W±2 | S±2 |
| UNI-2-F-10 | 8.5 | 16 | 4.5 | 87 | 42 | 14 | 4.2 |
| UNI-2-F-16 | 8.5 | 16 | 5.5 | 87 | 42 | 14 | 4.2 |
| UNI-2-F-25 | 8.5 | 16 | 7.0 | 87 | 42 | 14 | 4.2 |
| UNI-2-F-35 | 8.5 | 16 | 8.5 | 87 | 42 | 14 | 4.2 |
| UNI-2-F-50 | 10.5 | 20 | 9.5 | 100 | 50 | 17 | 5.2 |
| UNI-2-F-70 | 10.5 | 20 | 11.5 | 100 | 50 | 17 | 5.2 |
| UNI-2-F-95 | 10.5 | 20 | 13.0 | 100 | 50 | 17 | 5.2 |
| UNI-2-F-120 | 13.0 | 25 | 15.0 | 120 | 60 | 21 | 6.2 |
| UNI-2-F-150 | 13.0 | 25 | 16.5 | 120 | 60 | 21 | 6.2 |
| UNI-2-F-185 | 13.0 | 32 | 18.0 | 125 | 60 | 25 | 7.2 |
| UNI-2-F-240 | 13.0 | 32 | 19.5 | 125 | 60 | 25 | 7.2 |
| UNI-2-F-300 | 13.0 | 34 | 23.5 | 145 | 65 | 30 | 8.0 |
| UNI-2-F-400 | 13.0 | 40 | 26.0 | 150 | 70 | 32 | 8.0 |
| UNI-2-F-500 | 13.0 | 40 | 29.0 | 150 | 70 | 32.0 | 8.0 |
