MGG Aluminum Alloy Tubular Busbar Fixed Support Type. MGG Type Tubular Bus-Bar Fitting is hot-dip galvanized steel.
Bus-bar supports are used to fix or hang bus-bars on insulators at the substation, including rectangular channel, tube bus and cable supports in accordance with bus type.
Features of Galvanized MGG Tubular Bus-Bar Fitting:
Clamping bolts have hex-stops for one-wrench installation.
Cap screws are supplied for upright mounting.
MGG Tubular Busbar Supports

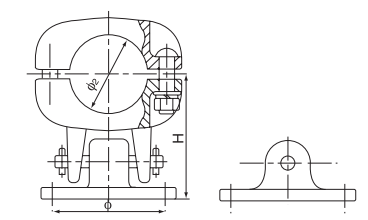

MGG1 Tubular Busbar Supports

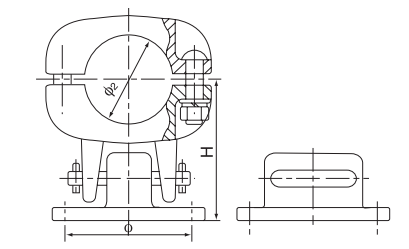

MGG2 Tubular Busbar Supports
Parameter
MGG Aluminum Alloy Tubular Busbar Fixed Support Type. MGG Type Tubular Bus-Bar Fitting is hot-dip galvanized steel.
Bus-bar supports are used to fix or hang bus-bars on insulators at the substation, including rectangular channel, tube bus and cable supports in accordance with bus type.
Features of Galvanized MGG Tubular Bus-Bar Fitting:
Clamping bolts have hex-stops for one-wrench installation.
Cap screws are supplied for upright mounting.
MGG Tubular Busbar Supports
MGG1 Tubular Busbar Supports
MGG2 Tubular Busbar Supports
Parameter

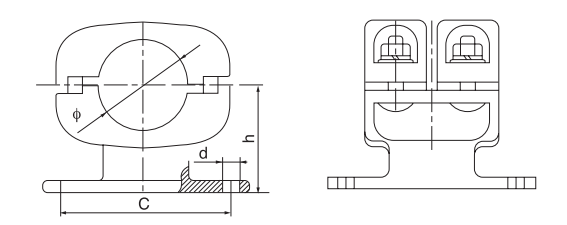

| Catalog | Suitable | Dimensions(mm) | Weight | |||
| No. | Busbar (mm) | φ | C | d | h | (kg) |
| MGG-70 | 70/64 | 70 | 140 | 14 | 90 | 2.8 |
| MGG-80 | 80/72 | 80 | 140 | 14 | 98 | 4 |
| MGG-90 | 90/80 | 90 | 140 | 14 | 102 | 4.3 |
| MGG-100 | 100/90 | 100 | 140 | 14 | 114 | 4.5 |
| MGG-110 | 110/100 | 110 | 140 | 14 | -- | -- |
| MGG-120 | 120/110 | 120 | 140 | 14 | 122 | 5.3 |
| MGG-130 | 130/116 | 130 | 140 | 14 | 135 | 7.3 |
| MGG-150 | 150/136 | 150 | 225 | 18 | 150 | 8.4 |
| MGG-170 | 170/156 | 170 | 225 | 18 | 170 | 9.5 |
| MGG-200 | 200/180 | 200 | 225 | 18 | 190 | 13.5 |
| MGG-250 | 250/230 | 250 | 254 | 18 | 215 | 19.5 |
